Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 22, 2019, 09:59 AM

  • 16 0597_16 0596 _10222019_021127.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13647
Time
2:59 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7050
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0597
Downstream MH
16 0596
Dir. of Survey
Downstream
Length Surveyed
358.2 ft.
Total Length
358.2 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
213
O&M Index
2
O&M Quick
2M00
O&M Rating
142
Overall Index
3
Overall Quick
—
Overall Rating
355
Pipe schematic from manhole 16 0597 to 16 0596
MH: 16 0597MH: 16 0596downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 05970 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start17.8 ft. MGO - General Observation - 70% MAG COATING THROUGHOUT356.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish356.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish356.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE358.2 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE358.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0596

Observation photos (5)

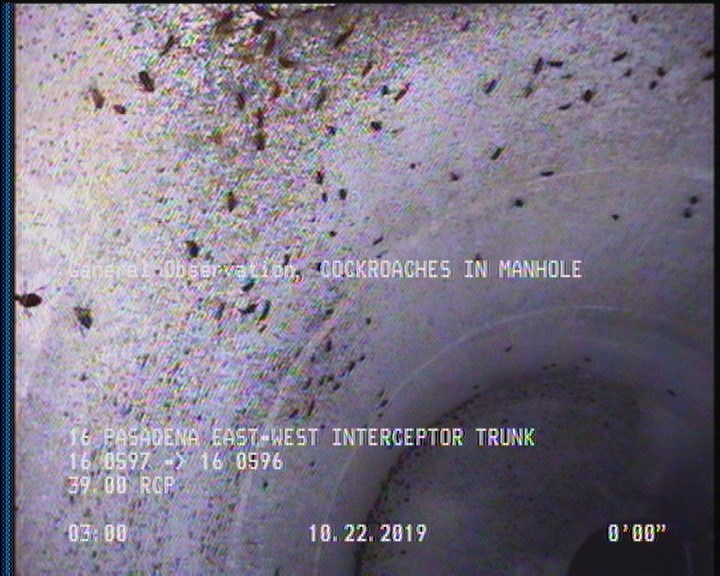

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

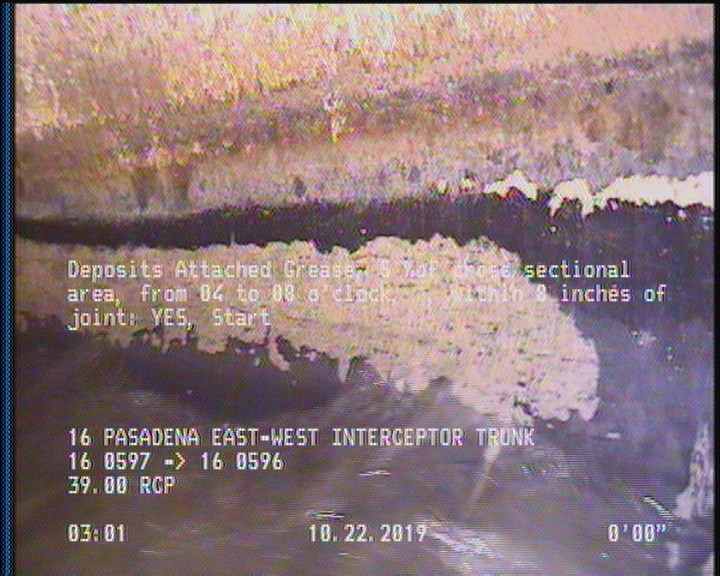

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

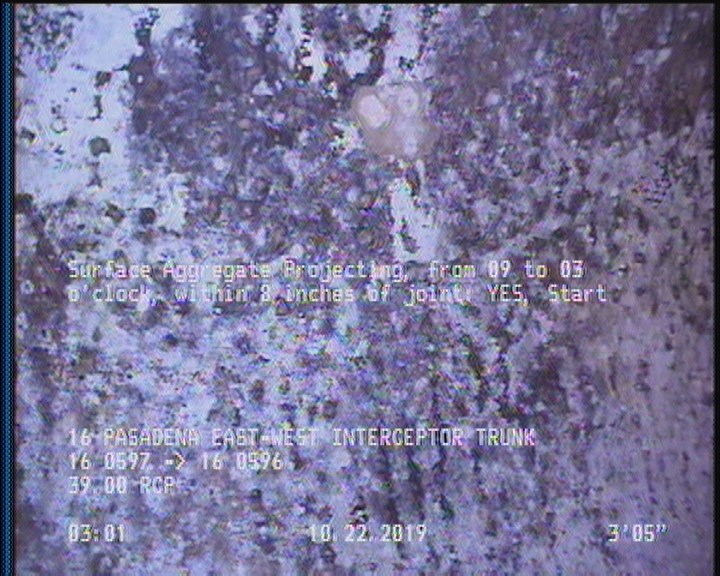

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

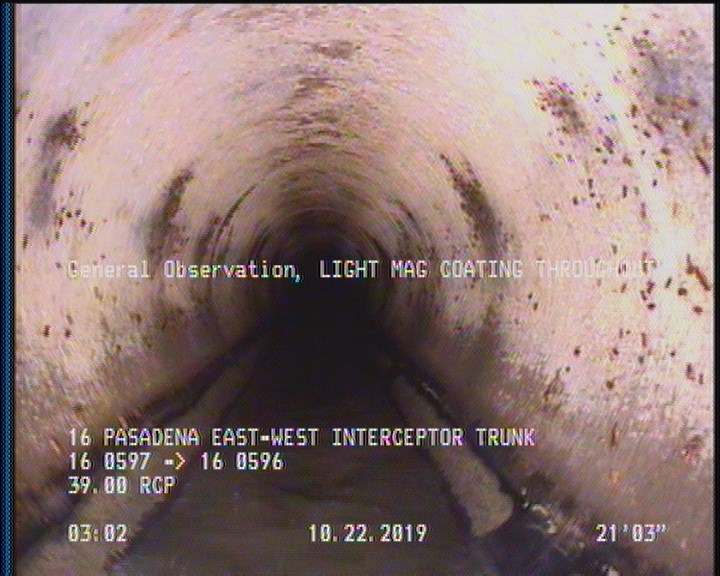

  • General Observation - 70% MAG COATING THROUGHOUT

    17.8 ft. - General Observation - 70% MAG COATING THROUGHOUT

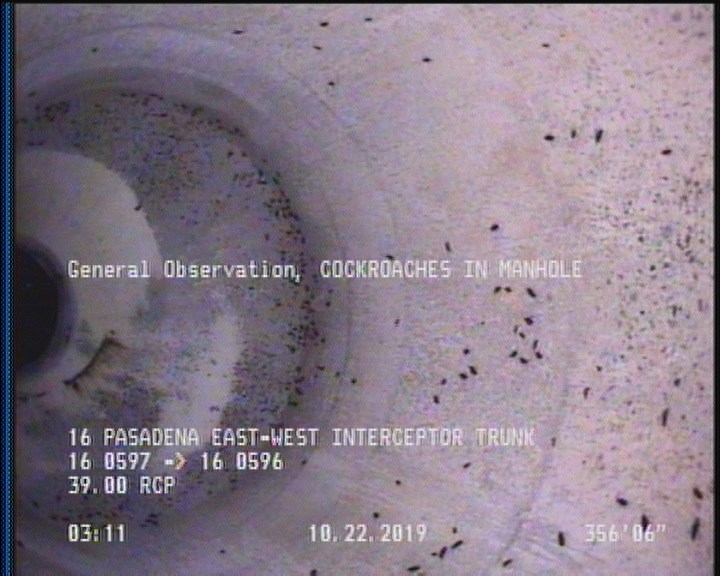

  • General Observation - COCKROACHES IN MANHOLE

    356.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13647Work order 792814

Observations (13)

DistanceCodeObservation
358.2MGOCONN @ MH 9 O'CLOCK/ACTIVE
356.5SAP—
0MWM—
356.5DAGS—
3.4SAP—
0AMH16 0597
0MWL—
0MGOCOCKROACHES IN MANHOLE
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
2DAGS—
356.5MGOCOCKROACHES IN MANHOLE
358.2AMH16 0596
17.8MGO70% MAG COATING THROUGHOUT

Properties (6)

additional_info
SC378719
custom_field_two
2
customer
LACSD
datetime
2019-10-22T02:59:01-07:00
documentation
PRO PIPE
is_lateral_inspection
false
