Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2019, 04:36 AM

  • 16 0596_16 0595_10222019_205237.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13646
Time
9:36 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7051
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0596
Downstream MH
16 0595
Dir. of Survey
Downstream
Length Surveyed
425.1 ft.
Total Length
425.1 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
252
O&M Index
2
O&M Quick
2P00
O&M Rating
168
Overall Index
3
Overall Quick
—
Overall Rating
420
Pipe schematic from manhole 16 0596 to 16 0595
MH: 16 0596MH: 16 0595downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 05960 ft. MGO - General Observation - CONN @ MH 8 O'CLOCK/ACTIVE2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - 70% MAG COATING THROUGHOUT2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start423.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish423.4 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE423.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish425.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE425.1 ft. AMH - Downstream Manhole, Survey Ends - 16 0595

Observation photos (4)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

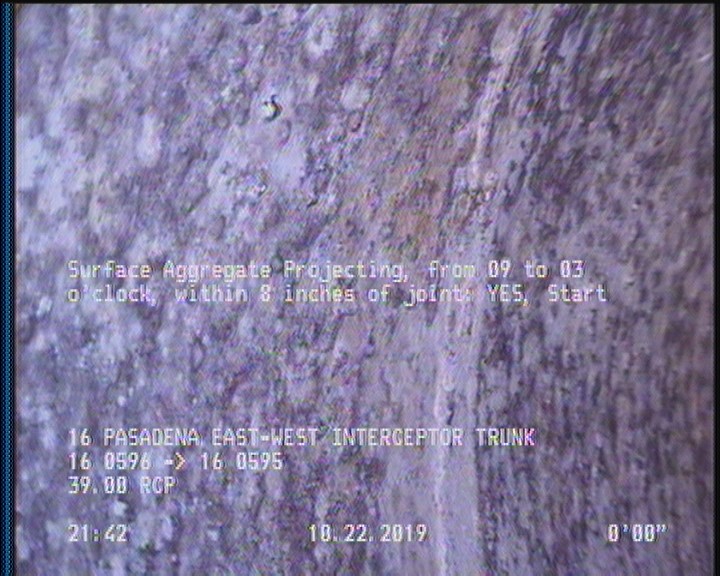

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

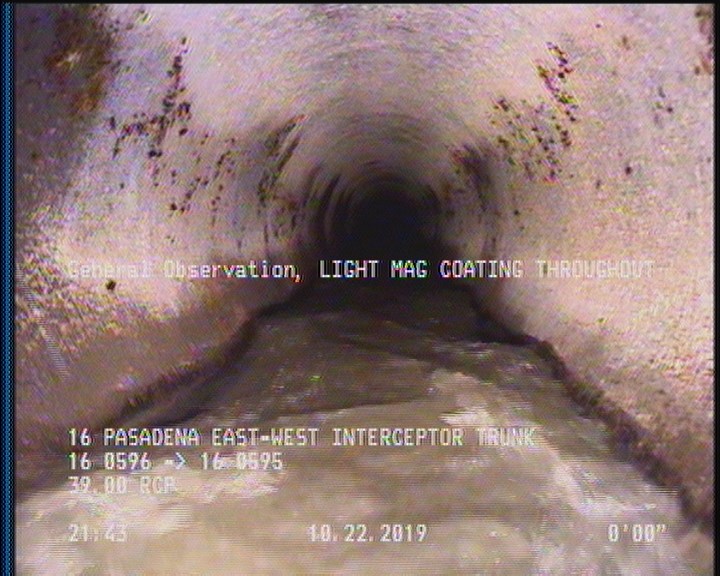

  • General Observation - 70% MAG COATING THROUGHOUT

    2 ft. - General Observation - 70% MAG COATING THROUGHOUT

  • General Observation - COCKROACHES IN MANHOLE

    425.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13646Work order 792814

Observations (13)

DistanceCodeObservation
2SAP—
0MGOCOCKROACHES IN MANHOLE
423.4SAP—
423.4MGOCONN @ MH 9 O'CLOCK/ACTIVE
0MWL—
2MGO70% MAG COATING THROUGHOUT
0MWM—
2DAGS—
425.1MGOCOCKROACHES IN MANHOLE
0AMH16 0596
425.1AMH16 0595
423.4DAGS—
0MGOCONN @ MH 8 O'CLOCK/ACTIVE

Properties (6)

additional_info
SC378720
custom_field_two
2
customer
LACSD
datetime
2019-10-22T21:36:24-07:00
documentation
PRO PIPE
is_lateral_inspection
false
