Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2019, 04:53 AM

  • 16 0595_16 0594_10222019_211005.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13645
Time
9:53 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7051
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0595
Downstream MH
16 0594
Dir. of Survey
Downstream
Length Surveyed
558.1 ft.
Total Length
558.1 ft.
Structural Index
3
Structural Quick
3U00
Structural Rating
330
O&M Index
2
O&M Quick
2b00
O&M Rating
352
Overall Index
2
Overall Quick
—
Overall Rating
682
Pipe schematic from manhole 16 0595 to 16 0594
MH: 16 0595MH: 16 0594downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 16 05952 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - 65% MAG COATING THROUGHOUT2.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start218 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS543.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish555 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish555 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish555.7 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE558.1 ft. AMH - Downstream Manhole, Survey Ends - 16 0594558.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

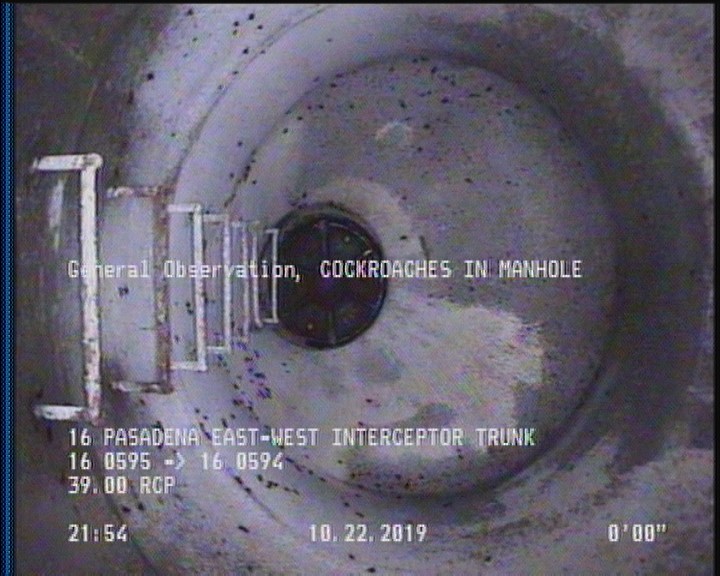

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

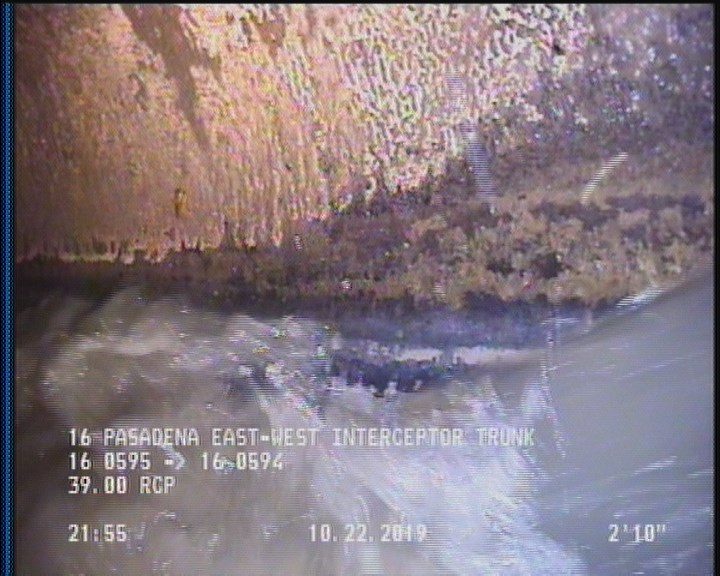

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

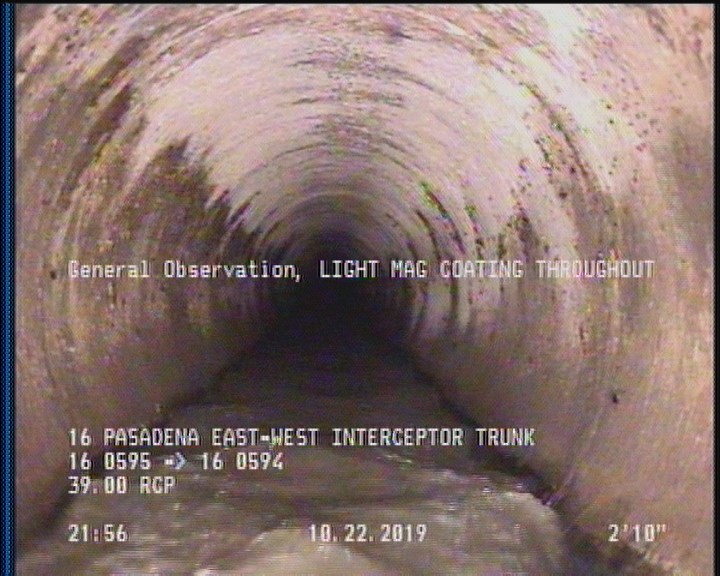

  • General Observation - 65% MAG COATING THROUGHOUT

    2.8 ft. - General Observation - 65% MAG COATING THROUGHOUT

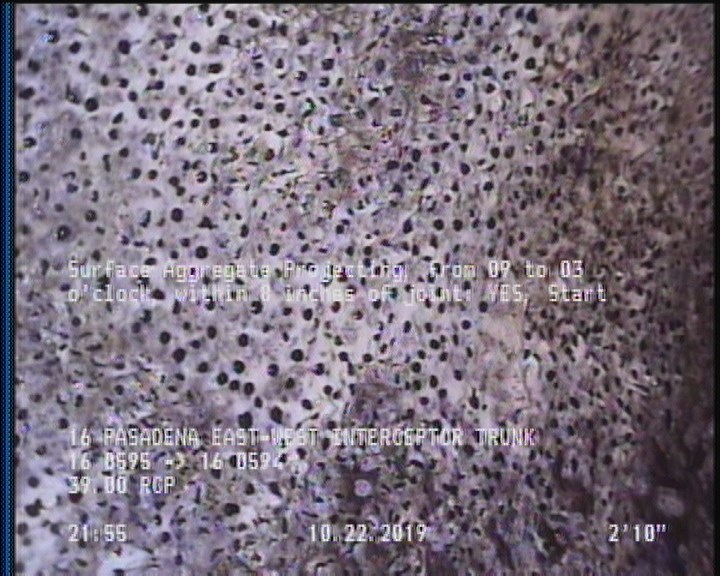

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    558.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13645Work order 792814

Observations (15)

DistanceCodeObservation
555SAP—
2.8MGO65% MAG COATING THROUGHOUT
555.7MGOCONN @ MH 9 O'CLOCK/ACTIVE
558.1AMH16 0594
0MWM—
2.8SAP—
558.1MGOCOCKROACHES IN MANHOLE
2DAGS—
0MGOCOCKROACHES IN MANHOLE
555DAGS—
543.5DSZ—
0MWL—
218DSZDEBRIS
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
0AMH16 0595

Properties (6)

additional_info
SC378720
custom_field_two
2
customer
LACSD
datetime
2019-10-22T21:53:05-07:00
documentation
PRO PIPE
is_lateral_inspection
false
