Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2019, 05:10 AM

  • 16 0594_16 0593_10222019_212408.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13644
Time
10:10 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7051
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
16 0594
Downstream MH
16 0593
Dir. of Survey
Downstream
Length Surveyed
392.2 ft.
Total Length
392.2 ft.
Structural Index
3
Structural Quick
3O2O
Structural Rating
390
O&M Index
2
O&M Quick
2O00
O&M Rating
156
Overall Index
2
Overall Quick
—
Overall Rating
546
Pipe schematic from manhole 16 0594 to 16 0593
MH: 16 0594MH: 16 0593downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 16 05940 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - 70% MAG COATING THROUGHOUT390.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish390.1 ft. MGO - General Observation - CONN@ MH 9 O'CLOCK/ACTIVE390.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish390.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish391 ft. MGO - General Observation - PEELING AND FLAKING THROUGHOUT392.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE392.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0593

Observation photos (6)

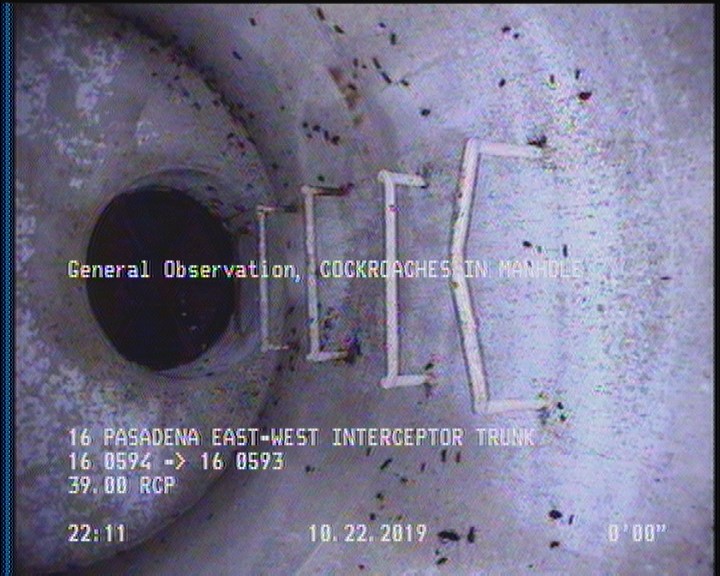

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

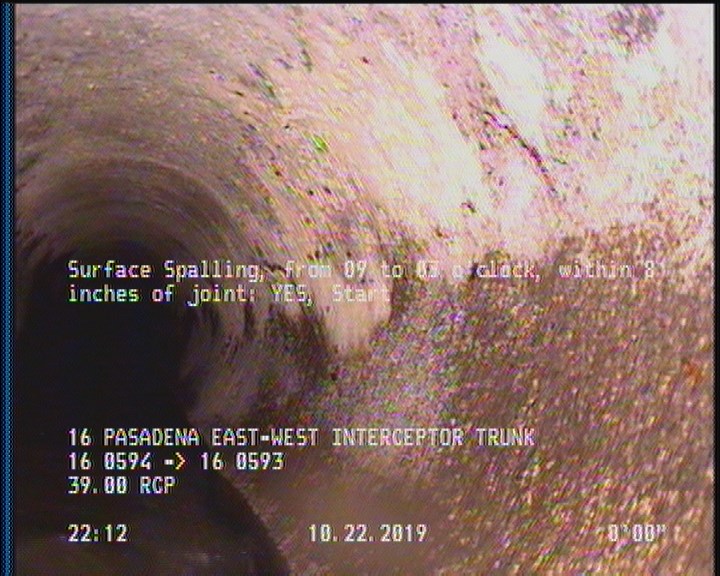

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

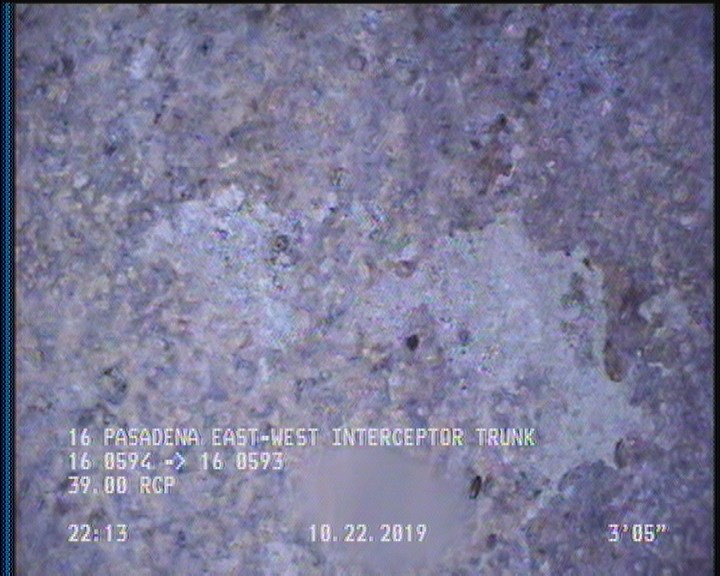

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

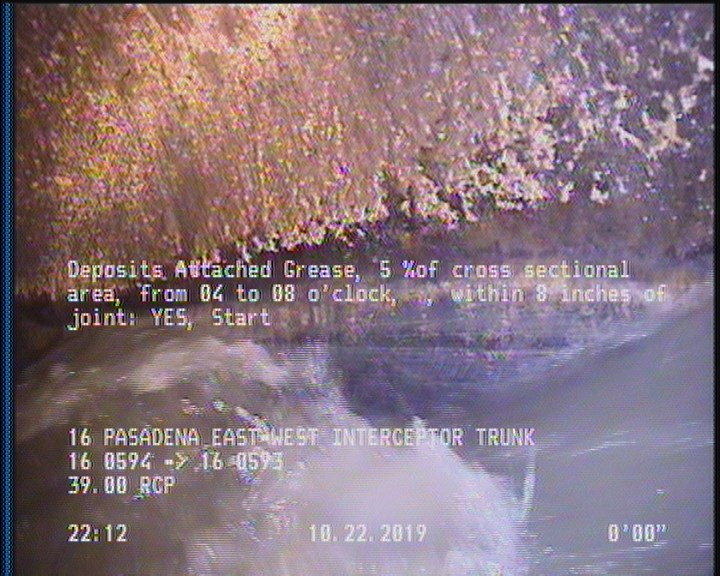

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

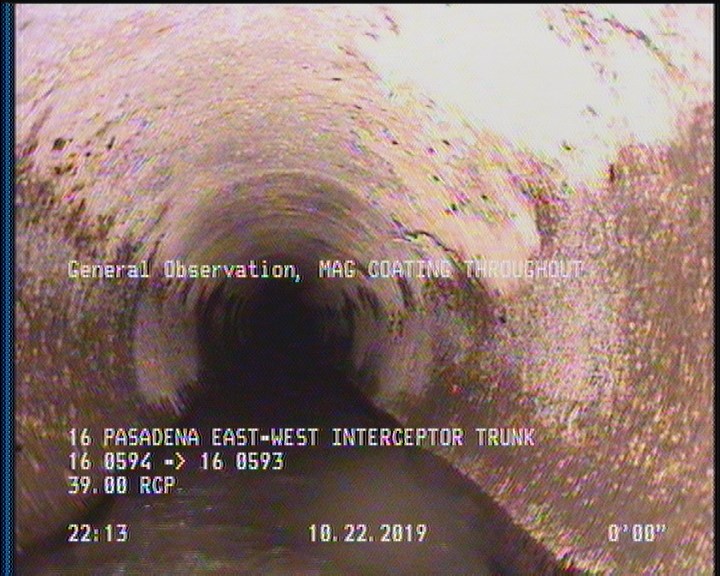

  • General Observation - 70% MAG COATING THROUGHOUT

    2 ft. - General Observation - 70% MAG COATING THROUGHOUT

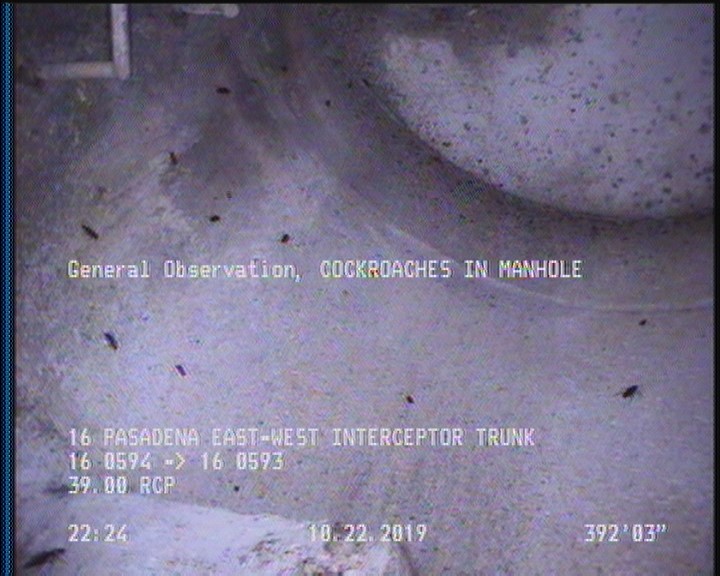

  • General Observation - COCKROACHES IN MANHOLE

    392.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13644Work order 792814

Observations (16)

DistanceCodeObservation
392.2MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
2SSS—
390.1SAP—
2SAP—
390.1MGOCONN@ MH 9 O'CLOCK/ACTIVE
0AMH16 0594
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
2DAGS—
390.1DAGS—
0MWM—
391MGOPEELING AND FLAKING THROUGHOUT
390.1SSS—
2MGO70% MAG COATING THROUGHOUT
0MWL—
392.2AMH16 0593

Properties (6)

additional_info
SC378720
custom_field_two
2
customer
LACSD
datetime
2019-10-22T22:10:30-07:00
documentation
PRO PIPE
is_lateral_inspection
false
