Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2019, 05:24 AM

  • 16 0593_16 0592_10222019_214107.mp4

Date
10/22/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13643
Time
10:24 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7051
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
16 0593
Downstream MH
16 0592
Dir. of Survey
Downstream
Length Surveyed
382.2 ft.
Total Length
382.2 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
380
O&M Index
2
O&M Quick
2N00
O&M Rating
152
Overall Index
2
Overall Quick
—
Overall Rating
532
Pipe schematic from manhole 16 0593 to 16 0592
MH: 16 0593MH: 16 0592downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 16 05930 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/OPEN0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - 75% MAG COATING THROUGHOUT380.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish380.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE380.2 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE380.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish380.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish381 ft. MGO - General Observation - PEELING AND FLAKING THROUGHOUT382.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0592

Observation photos (6)

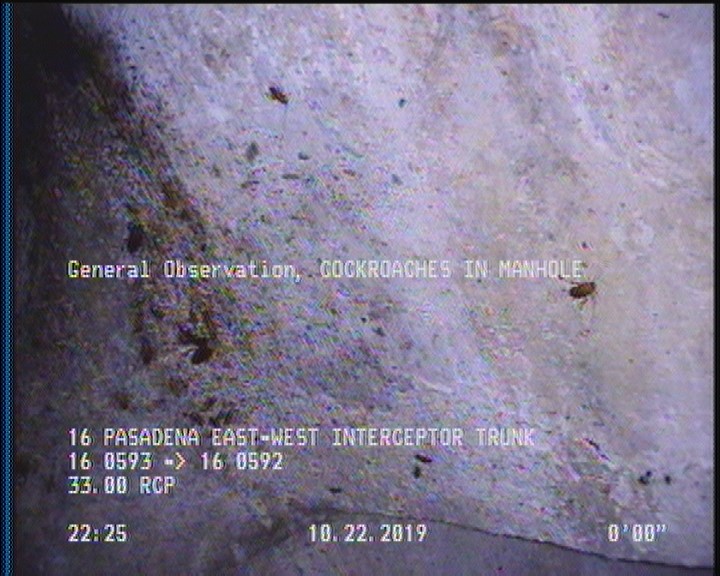

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

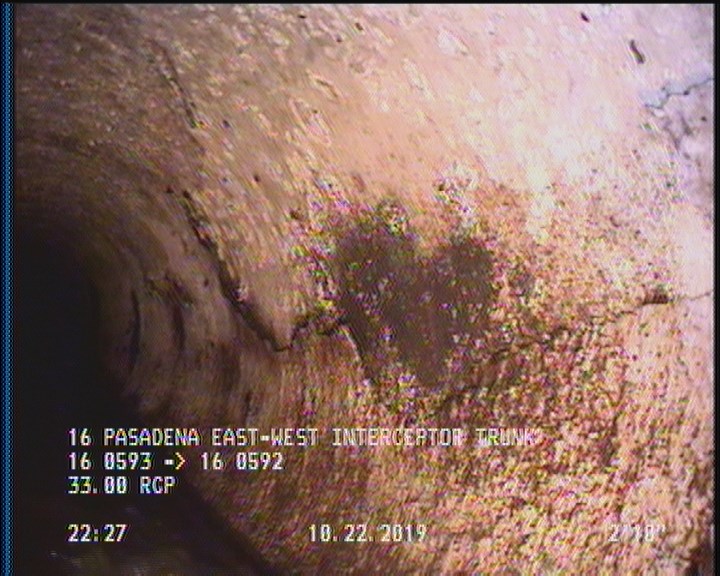

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

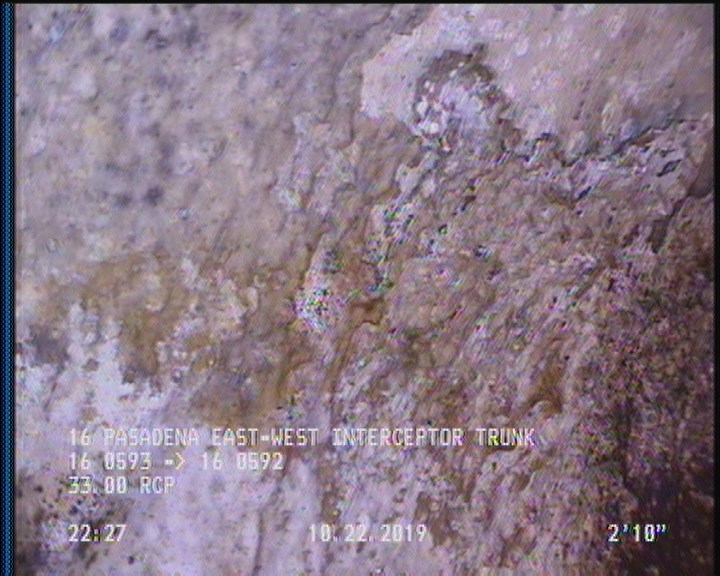

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - 75% MAG COATING THROUGHOUT

    2.8 ft. - General Observation - 75% MAG COATING THROUGHOUT

  • General Observation - COCKROACHES IN MANHOLE

    380.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13643Work order 792814

Observations (16)

DistanceCodeObservation
0MWM—
380.2DAGS—
0MGOCOCKROACHES IN MANHOLE
0AMH16 0593
2SSS—
0MGOCONN @ MH 9 O'CLOCK/OPEN
2.8MGO75% MAG COATING THROUGHOUT
380.2MGOCOCKROACHES IN MANHOLE
380.2MGOCONN @ MH 9 O'CLOCK/ACTIVE
2SAP—
2DAGS—
0MWL—
381MGOPEELING AND FLAKING THROUGHOUT
382.2AMH16 0592
380.2SAP—
380.2SSS—

Properties (6)

additional_info
SC378720
custom_field_two
2
customer
LACSD
datetime
2019-10-22T22:24:21-07:00
documentation
PRO PIPE
is_lateral_inspection
false
