Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2019, 05:44 AM

  • 16 0592_16 0591_10232019_215916.mp4

Date
10/23/2019
W/O
792814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00664
PipeID
P13642
Time
10:44 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7052
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
10
Purpose
Routine Assessment
Project
WO_792814_TV16030_OCT2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
16 0592
Downstream MH
16 0591
Dir. of Survey
Downstream
Length Surveyed
371.7 ft.
Total Length
371.7 ft.
Structural Index
3
Structural Quick
3N2M
Structural Rating
366
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
514
Pipe schematic from manhole 16 0592 to 16 0591
MH: 16 0592MH: 16 0591downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 05920 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start369.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish369.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish369.8 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE369.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE369.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish370 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG371.7 ft. AMH - Downstream Manhole, Survey Ends - 16 0591

Observation photos (4)

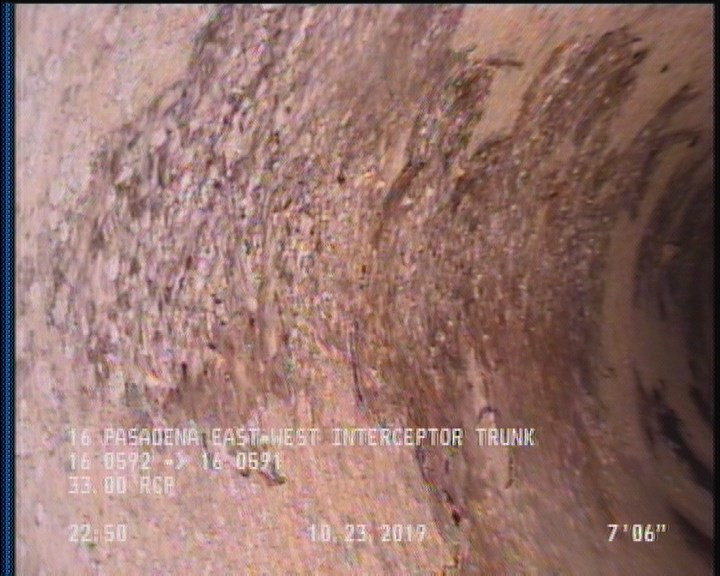

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

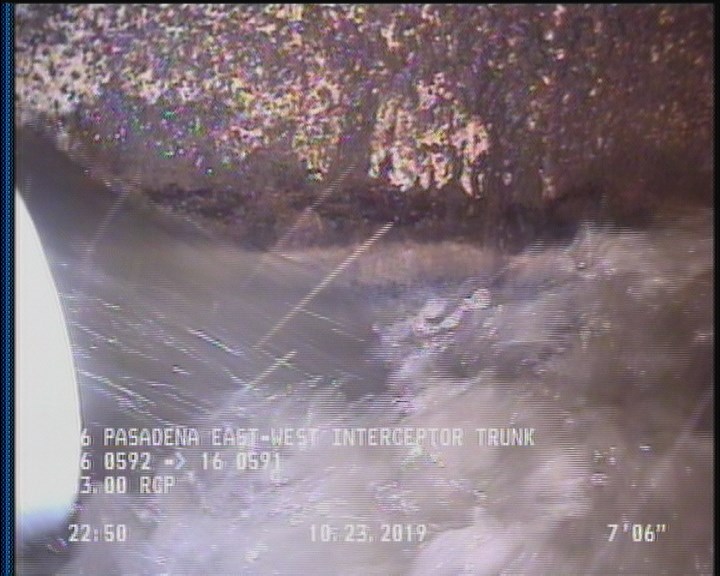

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

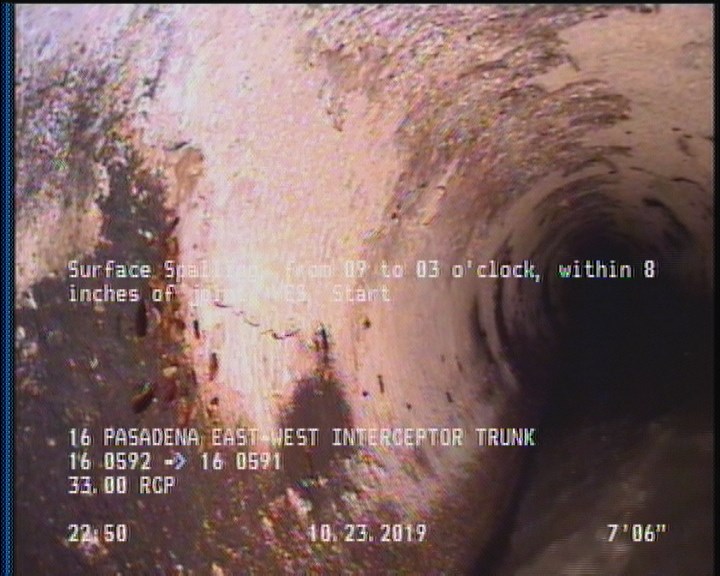

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

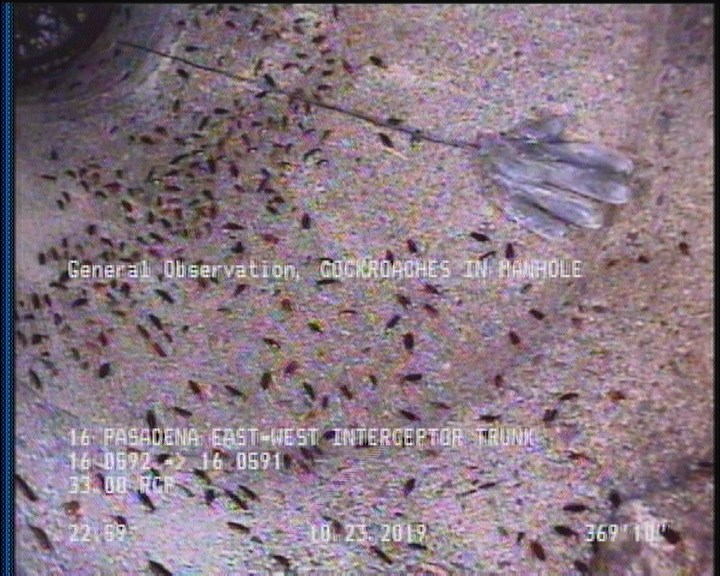

  • General Observation - COCKROACHES IN MANHOLE

    369.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13642Work order 792814

Observations (15)

DistanceCodeObservation
369.8DAGS—
0AMH16 0592
2SZ70% MAG
369.8SAP—
371.7AMH16 0591
370SZ70% MAG
0MWL—
2SAP—
2DAGS—
369.8MGOCONN @ MH 9 O'CLOCK/ACTIVE
7.5SSS—
369.8MGOCOCKROACHES IN MANHOLE
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
369.8SSS—
0MWM—

Properties (6)

additional_info
SC378721
custom_field_two
2
customer
LACSD
datetime
2019-10-23T22:44:08-07:00
documentation
PRO PIPE
is_lateral_inspection
false
