Wastewater/Activity/PacpInspection/1.0Mar 27, 2018, 06:10 AM
15 0443_B 0229 _26032018_233239.mp4
- Date
- 03/26/2018
- W/O
- 619315
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00085
- PipeID
- P20101
- Time
- 11:10 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5510
- Sewer Name
- B JOINT OUTFALL B - UNIT 2B
- City
- SOUTH EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_691315_TV15102_MAR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- 15 0443
- Downstream MH
- B 0229
- Dir. of Survey
- Downstream
- Length Surveyed
- 757 ft.
- Total Length
- 757.1 ft.
- Structural Index
- 3
- Structural Quick
- 3]00
- Structural Rating
- 447
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 447
Observation photos (1)

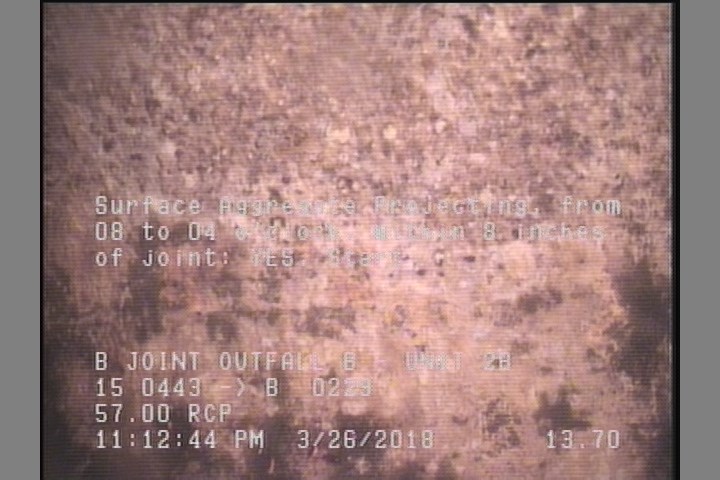

13.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 757.1 | AMH | B 0229 |
| 0 | MWM | — |
| 0 | AMH | 15 0443 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 757.1 | SAP | — |
| 757.1 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 13.7 | SAP | — |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-26T23:10:26-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
