Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 10:18 AM

  • 15 0614_15 0613A_11042019_023233.mp4

Date
11/04/2019
W/O
792806
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00601
PipeID
P24099
Time
2:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6324
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_792806_TV15205_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0614
Downstream MH
15 0613A
Dir. of Survey
Downstream
Length Surveyed
230 ft.
Total Length
230 ft.
Structural Index
3
Structural Quick
4H3H
Structural Rating
318
O&M Index
2
O&M Quick
2H00
O&M Rating
90
Overall Index
3
Overall Quick
—
Overall Rating
408
Pipe schematic from manhole 15 0614 to 15 0613A
MH: 15 0614MH: 15 0613Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 06140 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start3.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES7.3 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start14.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"47.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"74.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"99.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"125.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"146.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"221.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"224.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"229 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish229.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish229.9 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish230 ft. AMH - Downstream Manhole, Survey Ends - 15 0613A230 ft. MGO - General Observation - CONNECTION AT 3

Observation photos (3)

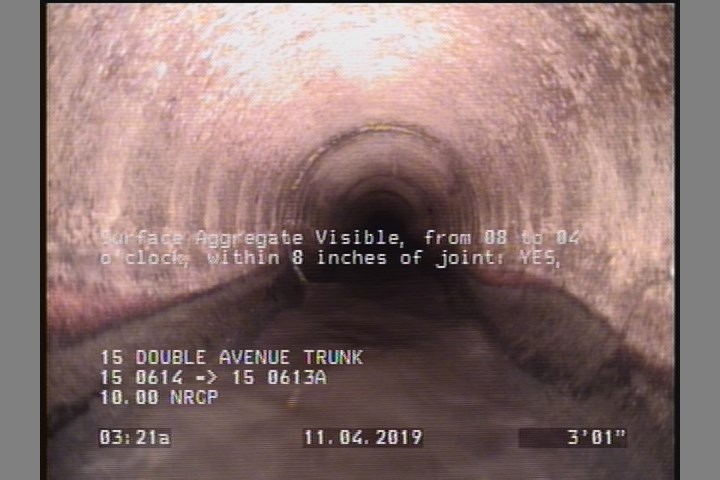

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

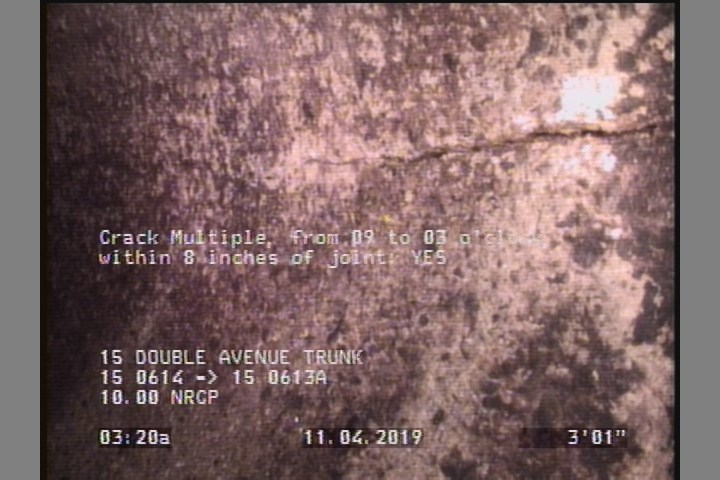

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

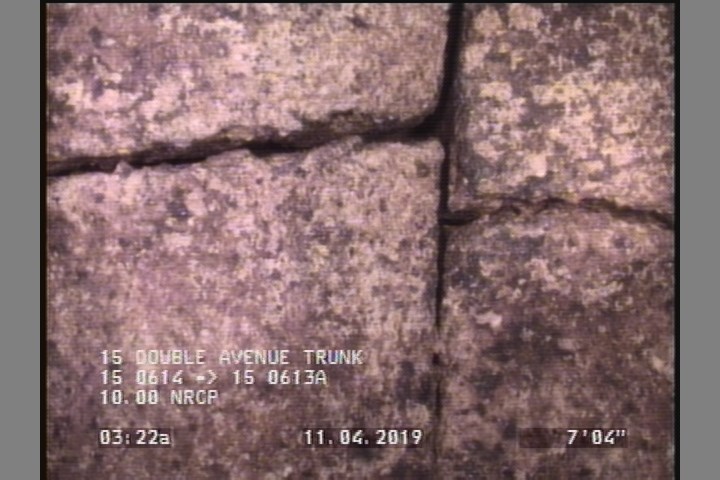

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    7.3 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P24099Work order 792806

Observations (20)

DistanceCodeObservation
221.2TF—
47.5TF—
0AMH15 0614
230AMH15 0613A
230MGOCONNECTION AT 3
3.1SAV—
229.9SAV—
0MWM—
0MWL—
3.1CM—
125.4TF—
99.3TF—
229DAGS—
14.3TFC—
229.9FM—
146.5TF—
74.6TF—
2DAGS—
224.1TF—
7.3FM—

Properties (6)

additional_info
SC365761
custom_field_two
2
customer
LACSD
datetime
2019-11-04T02:18:11-08:00
documentation
PROPIPE
is_lateral_inspection
false
