Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 10:34 AM

  • 15 0613A_15 0613 _11042019_024447.mp4

Date
11/04/2019
W/O
792806
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00601
PipeID
P12550
Time
2:34 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6324
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_792806_TV15205_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0613A
Downstream MH
15 0613
Dir. of Survey
Downstream
Length Surveyed
132.3 ft.
Total Length
132.3 ft.
Structural Index
3
Structural Quick
4A3D
Structural Rating
174
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
178
Pipe schematic from manhole 15 0613A to 15 0613
MH: 15 0613AMH: 15 0613downstream0 ft. MGO - General Observation - CONNECTION AT 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 0613A0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start2.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start61.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES82.7 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start132 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish132 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish132.3 ft. AMH - Downstream Manhole, Survey Ends - 15 0613132.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish132.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

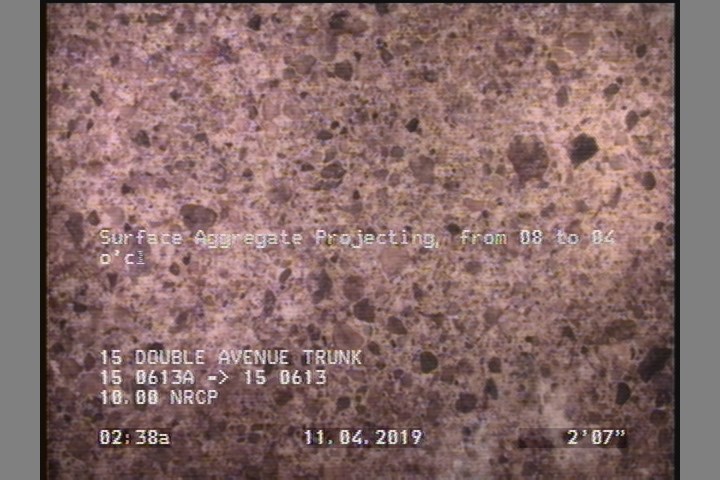

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

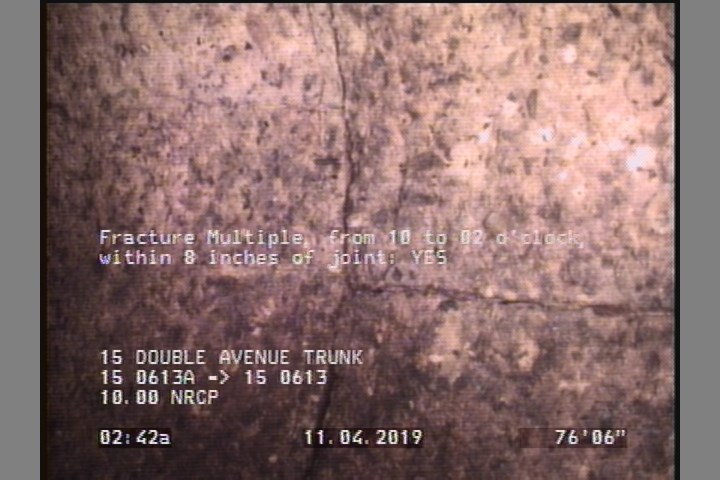

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    76.5 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

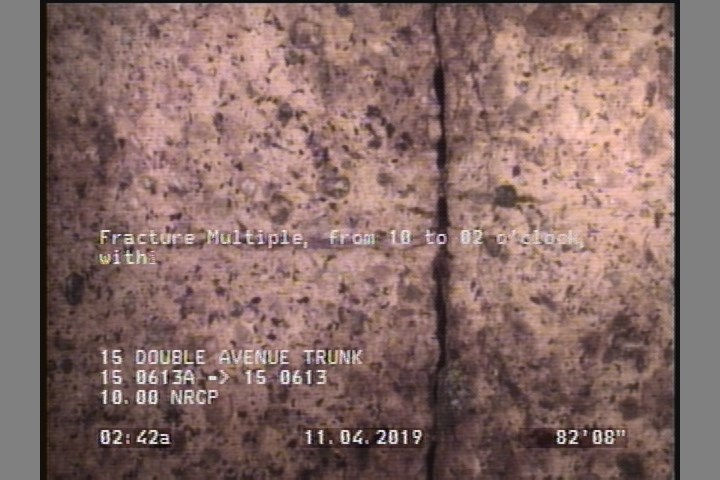

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    82.7 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P12550Work order 792806

Observations (16)

DistanceCodeObservation
61.6TFA—
132.3AMH15 0613
2SSS—
76.5FM—
0MGOCONNECTION AT 3 O'CLOCK
132.3FM—
132.3SAP—
0AMH15 0613A
132SSS—
0MWM—
0MWL—
2.6SAP—
82.7FM—
65.7TF—
132DAGS—
2DAGS—

Properties (6)

additional_info
SC365761
custom_field_two
2
customer
LACSD
datetime
2019-11-04T02:34:29-08:00
documentation
PROPIPE
is_lateral_inspection
false
