Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 10:46 AM

  • 15 0613_15 0612A _11042019_025638.mp4

Date
11/04/2019
W/O
792806
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00601
PipeID
P12549
Time
2:46 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6324
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_792806_TV15205_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0613
Downstream MH
15 0612A
Dir. of Survey
Downstream
Length Surveyed
137.3 ft.
Total Length
137.3 ft.
Structural Index
3
Structural Quick
4D3D
Structural Rating
181
O&M Index
2
O&M Quick
2D00
O&M Rating
54
Overall Index
3
Overall Quick
—
Overall Rating
235
Pipe schematic from manhole 15 0613 to 15 0612A
MH: 15 0613MH: 15 0612Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 06130 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start2.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start30.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"36.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"96.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"126.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"136 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish136.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish136.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish137.3 ft. AMH - Downstream Manhole, Survey Ends - 15 0612A137.3 ft. MGO - General Observation - CONNECTION AT 3 O'CLOCK

Observation photos (2)

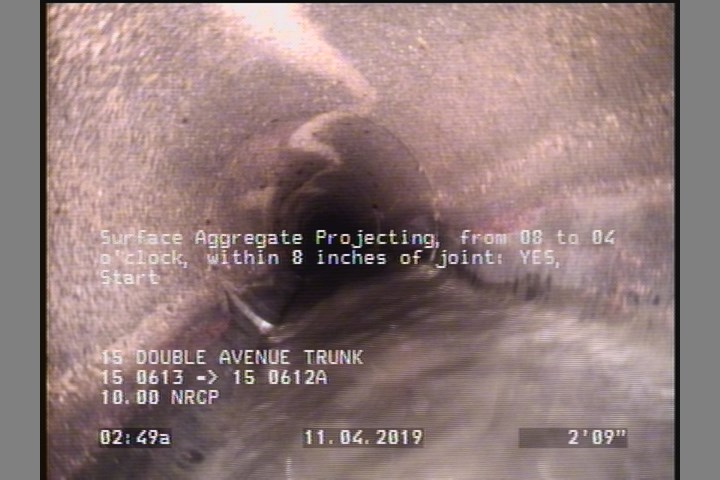

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

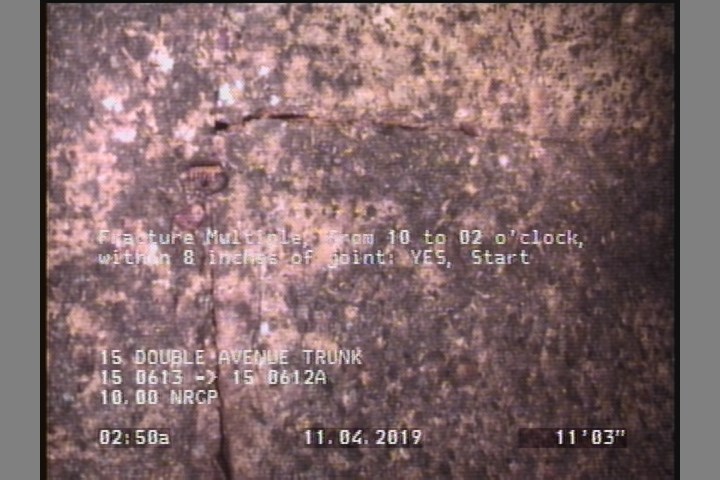

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    11.3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P12549Work order 792806

Observations (15)

DistanceCodeObservation
137.3AMH15 0612A
137.3MGOCONNECTION AT 3 O'CLOCK
126.6TF—
0AMH15 0613
0MWL—
2.7SAP—
136DAGS—
2DAGS—
11.3FM—
136.5SAP—
36.5TF—
96.3TF—
136.5FM—
30.8TF—
0MWM—

Properties (6)

additional_info
SC365761
custom_field_two
2
customer
LACSD
datetime
2019-11-04T02:46:39-08:00
documentation
PROPIPE
is_lateral_inspection
false
