Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 11:13 AM

  • 15 0612A1_15 0612_11042019_032015.mp4

Date
11/04/2019
W/O
792806
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00601
PipeID
P12548
Time
3:13 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6324
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_792806_TV15205_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0612A1
Downstream MH
15 0612
Dir. of Survey
Downstream
Length Surveyed
42.1 ft.
Total Length
42.1 ft.
Structural Index
3
Structural Quick
4738
Structural Rating
52
O&M Index
2
O&M Quick
2800
O&M Rating
16
Overall Index
3
Overall Quick
—
Overall Rating
68
Pipe schematic from manhole 15 0612A1 to 15 0612
MH: 15 0612A1MH: 15 0612downstream0 ft. MGO - General Observation - CONNECTION AT 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 0612A10 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Start24.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"42 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish42.1 ft. AMH - Downstream Manhole, Survey Ends - 15 061242.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish42.1 ft. MGO - General Observation - ABANDONED MH42.1 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish

Observation photos (2)

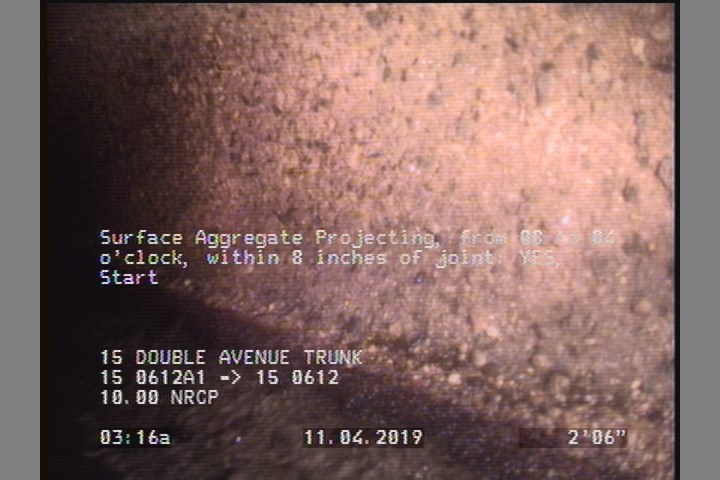

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

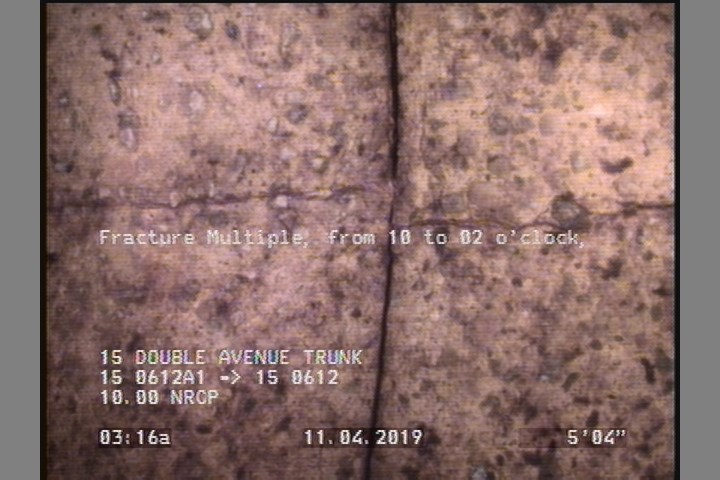

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

    5.3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

All inspections of P12548Work order 792806

Observations (13)

DistanceCodeObservation
24.6TF—
5.3FM—
42.1AMH15 0612
42.1SAP—
0MGOCONNECTION AT 3 O'CLOCK
42.1MGOABANDONED MH
0MWL—
42DAGS—
42.1FM—
0AMH15 0612A1
2DAGS—
2.5SAP—
0MWM—

Properties (6)

additional_info
SC365761
custom_field_two
2
customer
LACSD
datetime
2019-11-04T03:13:58-08:00
documentation
PROPIPE
is_lateral_inspection
false
