Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 12:50 PM
B 0788_15 0610 _11042019_045523.mp4
- Date
- 11/04/2019
- W/O
- 792806
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00601
- PipeID
- P12545
- Time
- 4:50 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6324
- Sewer Name
- 15 DOUBLE AVENUE TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_792806_TV15205_OCT2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 0610
- Downstream MH
- B 0788
- Dir. of Survey
- Upstream
- Length Surveyed
- 19.2 ft.
- Total Length
- 19.2 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (2)

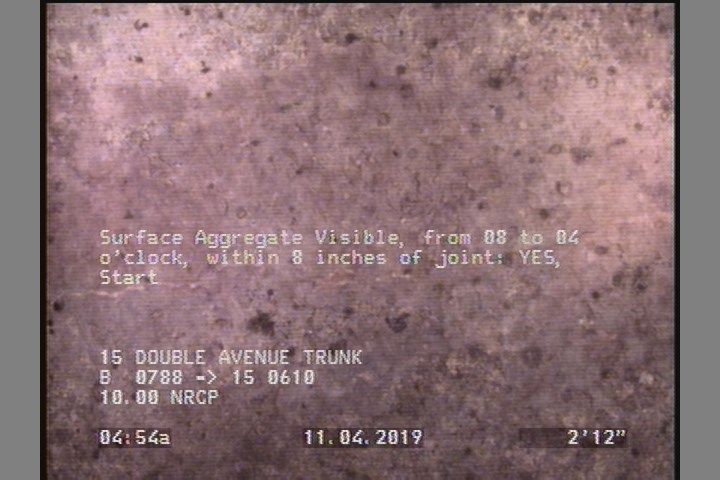

3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

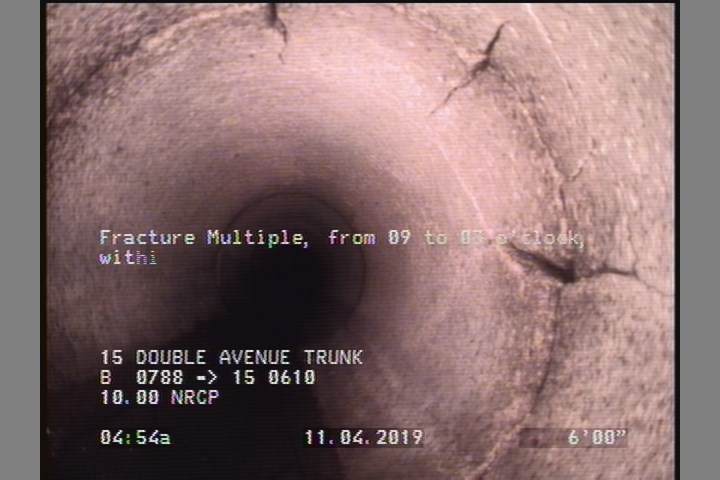

6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 6 | FM | — |
| 19.2 | AMH | B 0788 |
| 0 | MGO | CONNECTION AT 3 AND 9 O'CLOCK |
| 19 | SAV | — |
| 3 | SAV | — |
| 0 | AMH | 15 0610 |
Properties (6)
- additional_info
- SC365761
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-11-04T04:50:58-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
