Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 12:56 PM

  • 15 0610_15 0609A _11042019_050920.mp4

Date
11/04/2019
W/O
792806
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00601
PipeID
P12544
Time
4:56 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6324
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_792806_TV15205_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0610
Downstream MH
15 0609A
Dir. of Survey
Downstream
Length Surveyed
226.8 ft.
Total Length
226.8 ft.
Structural Index
3
Structural Quick
4H3H
Structural Rating
304
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
304
Pipe schematic from manhole 15 0610 to 15 0609A
MH: 15 0610MH: 15 0609Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 06100 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT 3 AND 9 O'CLOCK4.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start65.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"92.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"149.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"182.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish224.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish226.8 ft. AMH - Downstream Manhole, Survey Ends - 15 0609A226.8 ft. MGO - General Observation - CONNECTION AT 9 O'CLOCK

Observation photos (2)

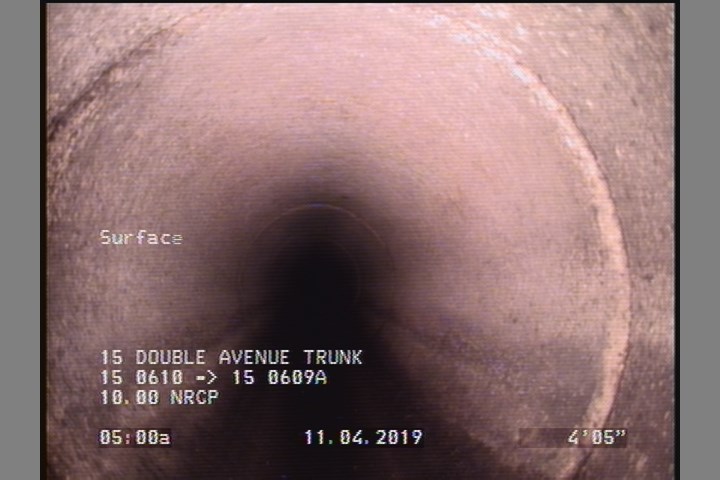

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

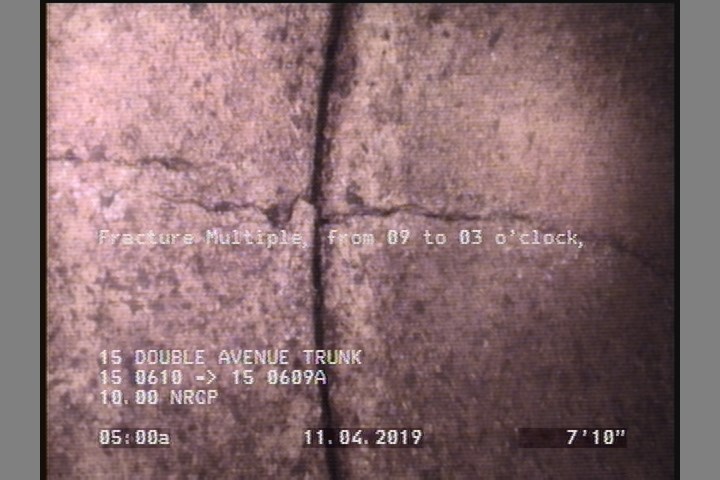

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P12544Work order 792806

Observations (14)

DistanceCodeObservation
92.5TFC—
182.5TFC—
7.8FM—
224.7SAV—
0AMH15 0610
0MWL—
0MWM—
4.5SAV—
0MGOCONNECTION AT 3 AND 9 O'CLOCK
149.6TF—
226.8AMH15 0609A
65.9TF—
224.7FM—
226.8MGOCONNECTION AT 9 O'CLOCK

Properties (6)

additional_info
SC365761
custom_field_two
3
customer
LACSD
datetime
2019-11-04T04:56:50-08:00
documentation
PROPIPE
is_lateral_inspection
false
