Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2019, 08:17 AM

  • 15 0400_15 0399 _11062019_003701.mp4

Date
11/06/2019
W/O
792798
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00597
PipeID
P12323
Time
12:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6330
Sewer Name
15 ARROYO DRIVE TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
31
Purpose
Routine Assessment
Project
RFIR_WO_792798_TV15214_OCT2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
15 0400
Downstream MH
15 0399
Dir. of Survey
Downstream
Length Surveyed
255.7 ft.
Total Length
255.7 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
168
O&M Index
2
O&M Quick
2I12
O&M Rating
104
Overall Index
3
Overall Quick
—
Overall Rating
272
Pipe schematic from manhole 15 0400 to 15 0399
MH: 15 0400MH: 15 0399downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. AMH - Upstream Manhole, Survey Begins - 15 04000 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT 3 O'CLOCK3.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"46.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"57.3 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start73.3 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish105.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"111.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.6 ft. RFJ - Roots Fine Joint, from 08 to 12 o'clock, within 8 inches of joint: YES153.3 ft. FM - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES153.3 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES158.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.7 ft. MGO - General Observation - LINK PIPE167.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"203.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"246.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247 ft. B - Broken, from 07 to 10 o'clock, within 8 inches of joint: YES255 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish255.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish255.6 ft. MGO - General Observation - CONNECTION AT 3 AND 9 O'CLOCK255.7 ft. AMH - Downstream Manhole, Survey Ends - 15 0399

Observation photos (6)

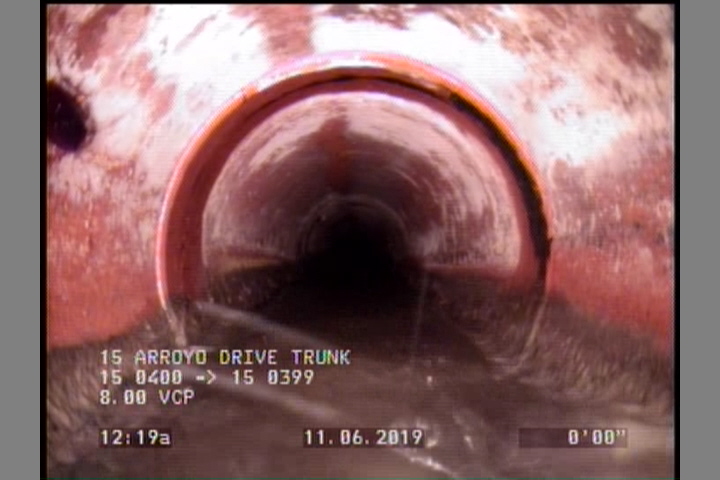

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

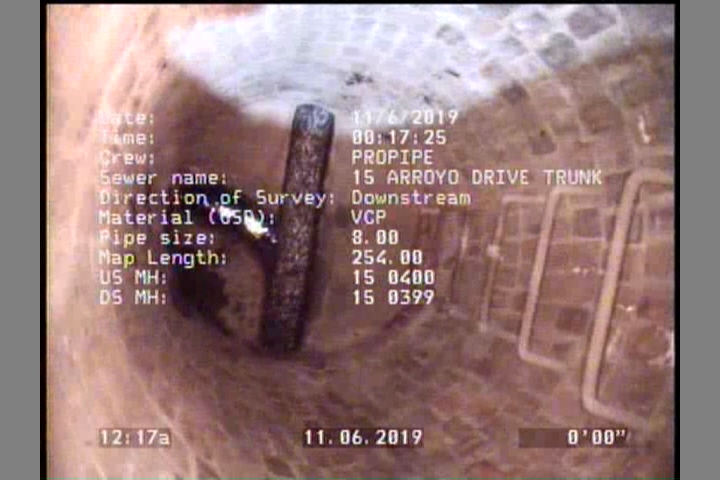

  • Upstream Manhole, Survey Begins - 15 0400

    0 ft. - Upstream Manhole, Survey Begins - 15 0400

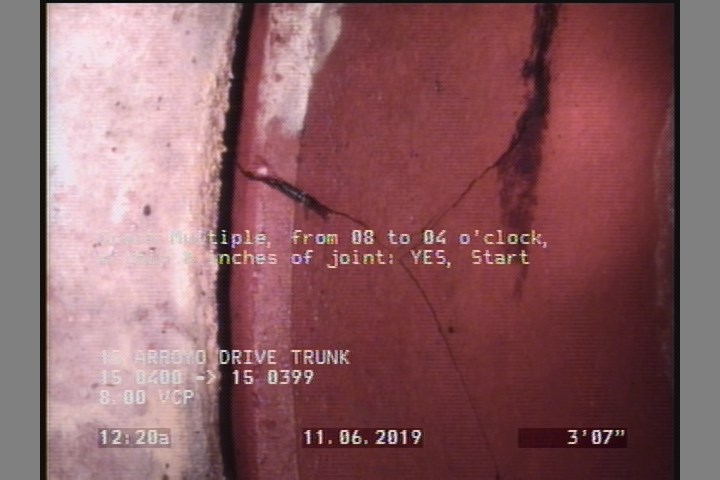

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

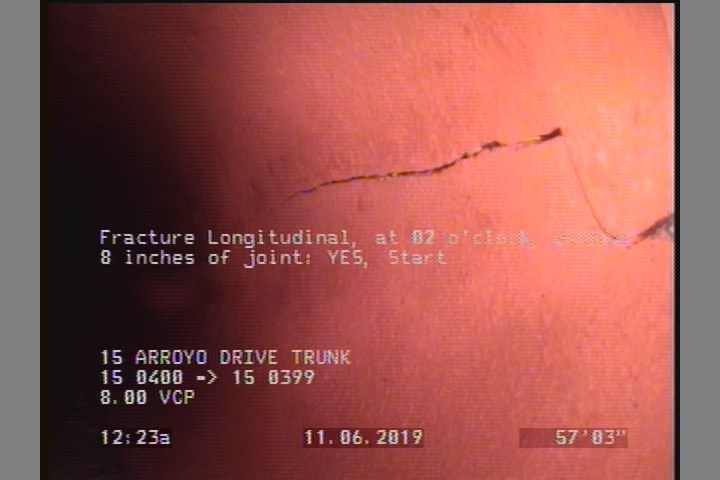

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start

    57.3 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start

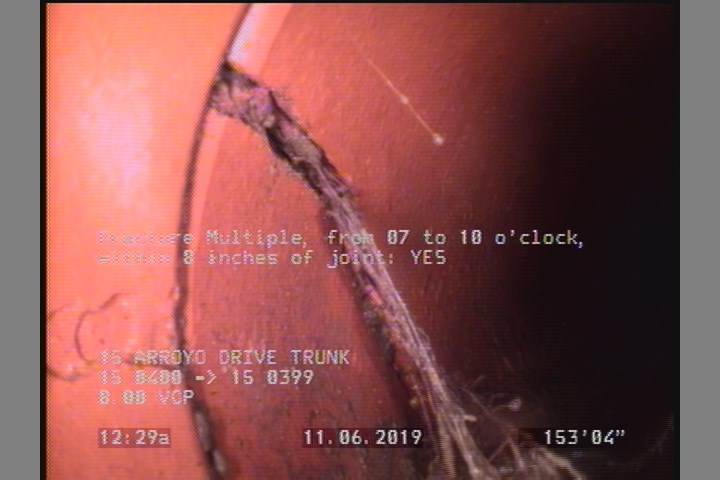

  • Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

    153.3 ft. - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

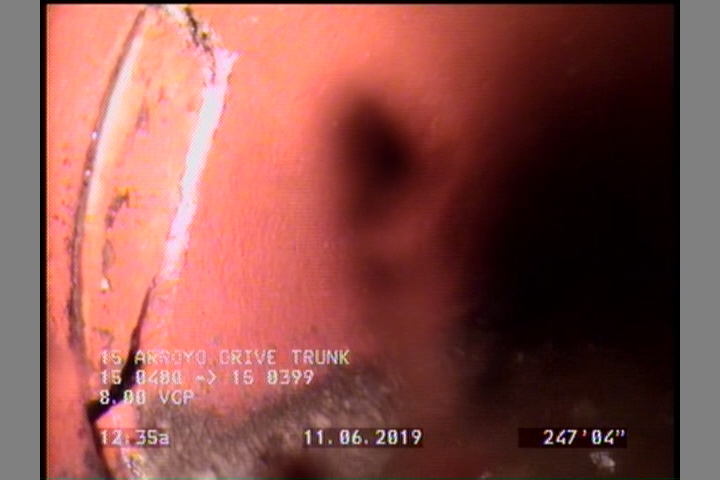

  • Broken, from 07 to 10 o'clock, within 8 inches of joint: YES

    247 ft. - Broken, from 07 to 10 o'clock, within 8 inches of joint: YES

All inspections of P12323Work order 792798

Observations (27)

DistanceCodeObservation
213.1TFC—
153.3FM—
0MWL—
126.6RFJ—
105.5TFC—
247B—
167.6TFC—
255.3CM—
0DAGS—
203.9TFC—
3.6CM—
255DAGS—
73.3FL—
111.7TFC—
57.3FL—
55.9TFC—
153.3RFJ—
6.5TFC—
0AMH15 0400
46.7TFC—
246.3TFC—
162.7MGOLINK PIPE
158.3TFC—
0MWM—
255.6MGOCONNECTION AT 3 AND 9 O'CLOCK
255.7AMH15 0399
0MGOCONNECTION AT 3 O'CLOCK

Properties (6)

additional_info
SC365767
custom_field_two
3
customer
LACSD
datetime
2019-11-06T00:17:25-08:00
documentation
PROPIPE
is_lateral_inspection
false
