Wastewater/Activity/PacpInspection/1.0Oct 16, 2019, 06:53 AM
02 1824_02 1823A _10152019_225914.mp4
- Date
- 10/15/2019
- W/O
- 792797
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00236
- PipeID
- P25919
- Time
- 11:53 PM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6967
- Sewer Name
- 02 ATLANTIC AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_792797_TV02017_OCT2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1824
- Downstream MH
- 02 1823A
- Dir. of Survey
- Downstream
- Length Surveyed
- 67.3 ft.
- Total Length
- 67.3 ft.
- Structural Index
- 3
- Structural Quick
- 3A2A
- Structural Rating
- 60
- O&M Index
- 2
- O&M Quick
- 2A11
- O&M Rating
- 25
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 85
Observation photos (3)

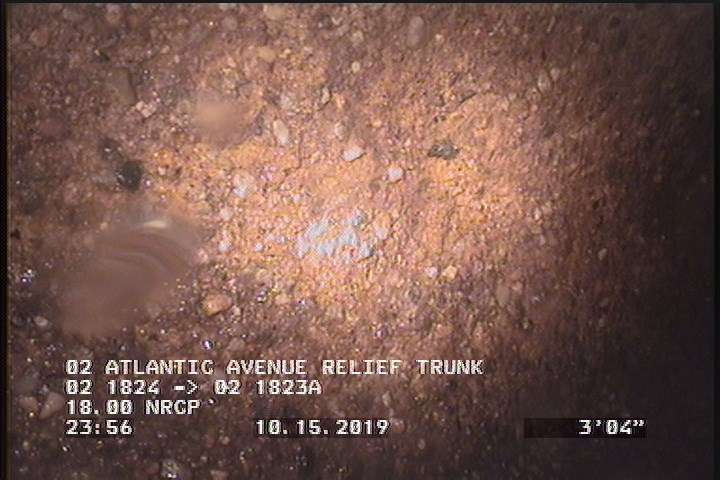

3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

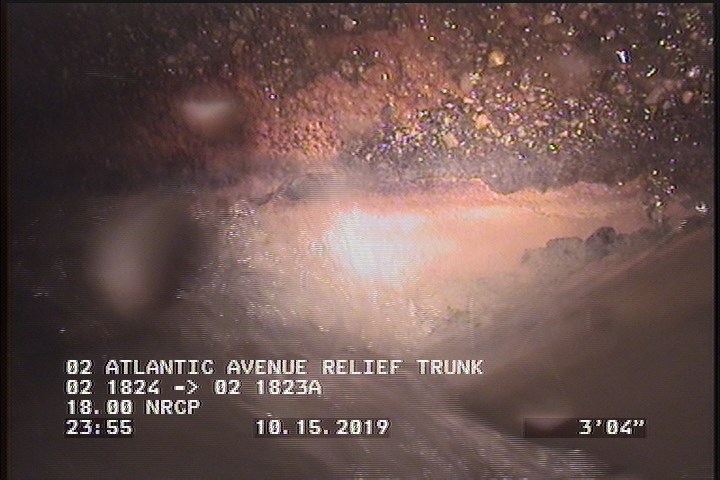

3.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

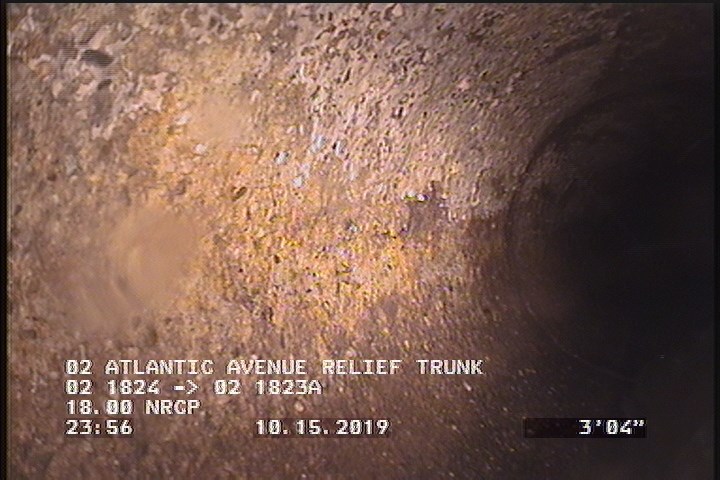

3.3 ft. - General Observation - MAG COAT THROUGHOUT
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1824 |
| 64.8 | DAGS | — |
| 67.3 | AMH | 02 1823A |
| 0 | MWL | — |
| 64.8 | SAP | — |
| 3.3 | SAP | — |
| 3.3 | DAGS | — |
| 0 | MWM | — |
| 0 | VC | — |
| 3.3 | MGO | MAG COAT THROUGHOUT |
| 67.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2 | SSS | — |
| 64 | SSS | — |
Properties (7)
- additional_info
- SC378594
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-15T23:53:08-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 39052
