Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2019, 11:24 AM

  • 04 0050_04 0049A _11052019_033511.mp4

Date
11/05/2019
W/O
792694
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00412
PipeID
P22246
Time
3:24 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6328
Sewer Name
04 LA CIENEGA BOULEVARD TRUNK
City
WEST HOLLYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_792694_TV04019_OCT2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
04 0050
Downstream MH
04 0049A
Dir. of Survey
Downstream
Length Surveyed
161.3 ft.
Total Length
161.3 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
93
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
93
Pipe schematic from manhole 04 0050 to 04 0049A
MH: 04 0050MH: 04 0049Adownstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 04 00504.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"51 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"92.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"114.9 ft. MGO - General Observation117.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"131 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"133.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"157.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish161.3 ft. MGO - General Observation - CONNECTION AT 3 O'CLOCK161.3 ft. AMH - Downstream Manhole, Survey Ends - 04 0049A

Observation photos (2)

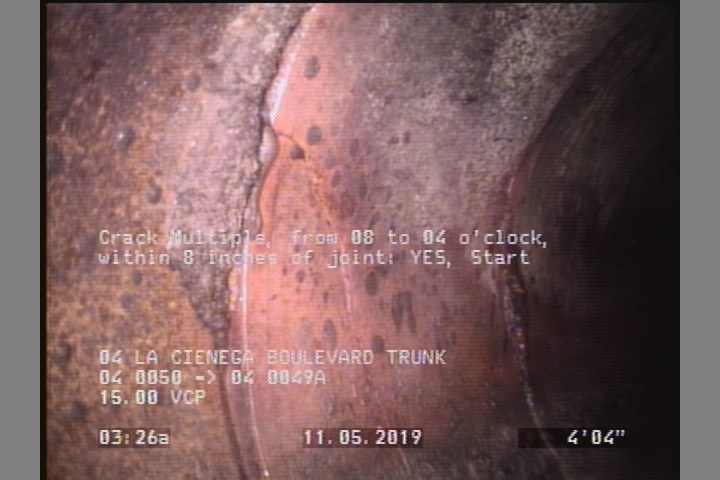

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

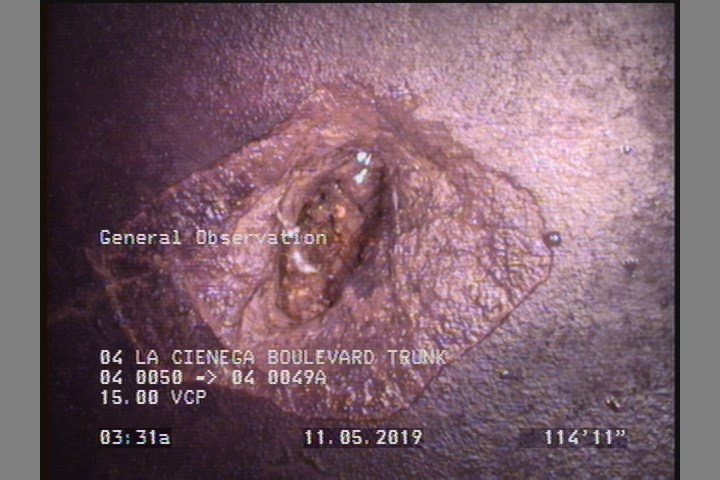

  • General Observation

    114.9 ft. - General Observation

All inspections of P22246Work order 792694

Observations (14)

DistanceCodeObservation
157.7CM—
0MWM—
0MWL—
117.9TF—
131TF—
92.4TF—
161.3MGOCONNECTION AT 3 O'CLOCK
161.3AMH04 0049A
4.4CM—
0AMH04 0050
133.6TFC—
114.9MGO—
10.5TF—
51TF—

Properties (6)

additional_info
SC36765
custom_field_two
3
customer
LACSD
datetime
2019-11-05T03:24:18-08:00
documentation
PROPIPE
is_lateral_inspection
false
