Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2019, 11:39 AM

  • 04 0049A_04 0049 _11052019_035218.mp4

Date
11/05/2019
W/O
792694
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00412
PipeID
P11779
Time
3:39 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6328
Sewer Name
04 LA CIENEGA BOULEVARD TRUNK
City
WEST HOLLYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_792694_TV04019_OCT2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
04 0049A
Downstream MH
04 0049
Dir. of Survey
Downstream
Length Surveyed
156 ft.
Total Length
156 ft.
Structural Index
3
Structural Quick
4E2E
Structural Rating
176
O&M Index
2
O&M Quick
2E00
O&M Rating
60
Overall Index
3
Overall Quick
—
Overall Rating
236
Pipe schematic from manhole 04 0049A to 04 0049
MH: 04 0049AMH: 04 0049downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04 0049A0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONN @ MH 3 O'CLOCK/ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start7.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"44.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"45.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - OPEN46.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN87.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"90.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"129.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.2 ft. MGO - General Observation140.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"142.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"150.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish150.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish154 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish156 ft. AMH - Downstream Manhole, Survey Ends - 04 0049

Observation photos (3)

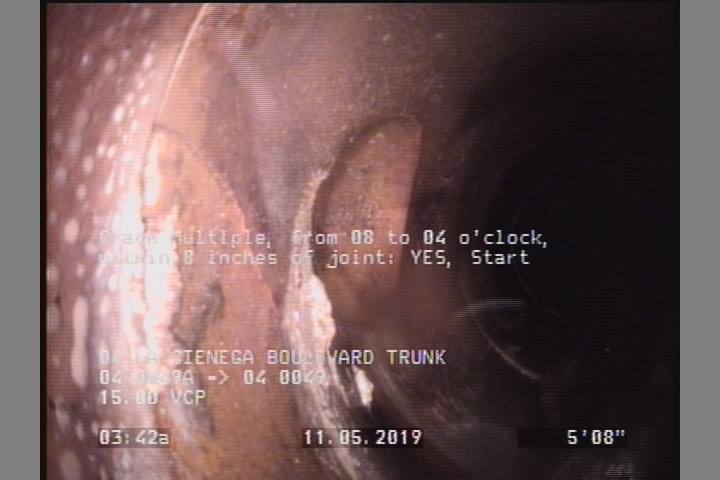

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

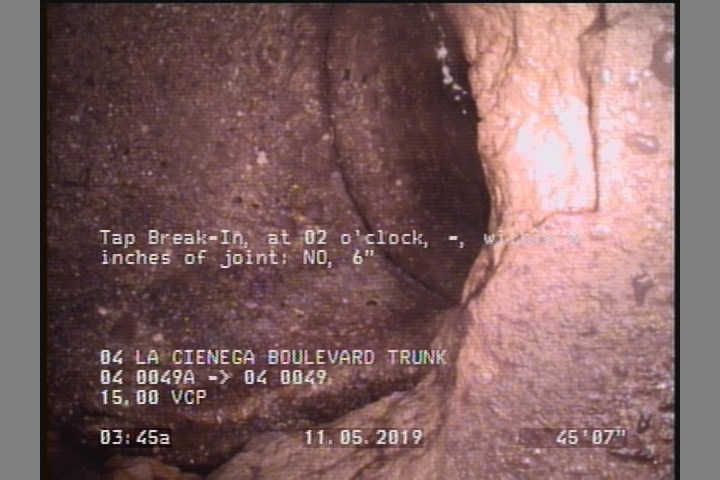

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - OPEN

    45.5 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - OPEN

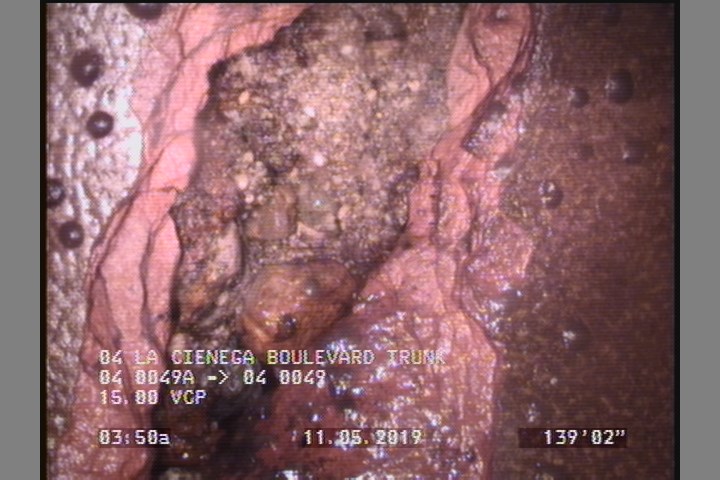

  • General Observation

    139.2 ft. - General Observation

All inspections of P11779Work order 792694

Observations (21)

DistanceCodeObservation
44.1TFC—
2SSS—
87.7TF—
0AMH04 0049A
45.5TBOPEN
7.8TF—
129.2TFC—
150.5FM—
142.2TF—
139.2MGO—
140.4TF—
0MWM—
90.2TF—
5.7DAE—
5.6FM—
0MGOCONN @ MH 3 O'CLOCK/ACTIVE
156AMH04 0049
0MWL—
150.6DAE—
46.2TFDOPEN
154SSS—

Properties (6)

additional_info
SC365765
custom_field_two
2
customer
LACSD
datetime
2019-11-05T03:39:07-08:00
documentation
PROPIPE
is_lateral_inspection
false
