Wastewater/Activity/PacpInspection/1.0Oct 24, 2019, 09:03 AM
16 0102_16 0101 _10242019_013118.mp4
- Date
- 10/24/2019
- W/O
- 792693
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00641
- PipeID
- P13140
- Time
- 2:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7053
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_792693_TV16009_OCT2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0101
- Downstream MH
- 16 0102
- Dir. of Survey
- Upstream
- Length Surveyed
- 277.8 ft.
- Total Length
- 277.8 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 275
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 110
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 385
Observation photos (3)

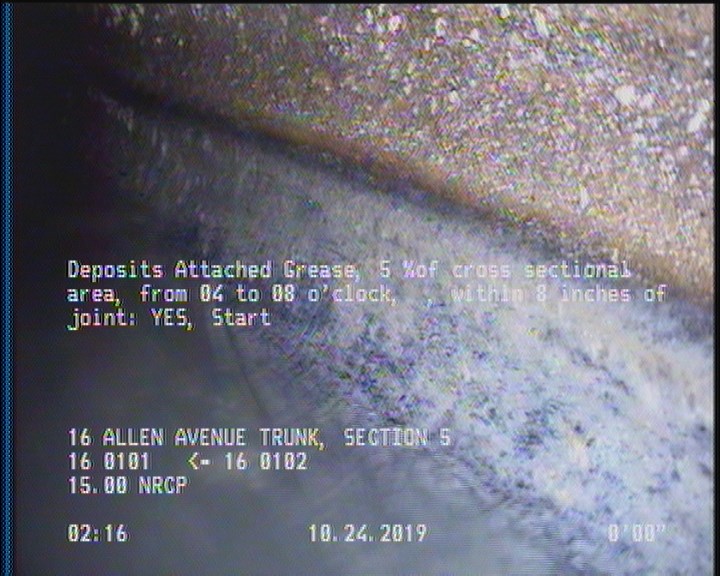

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

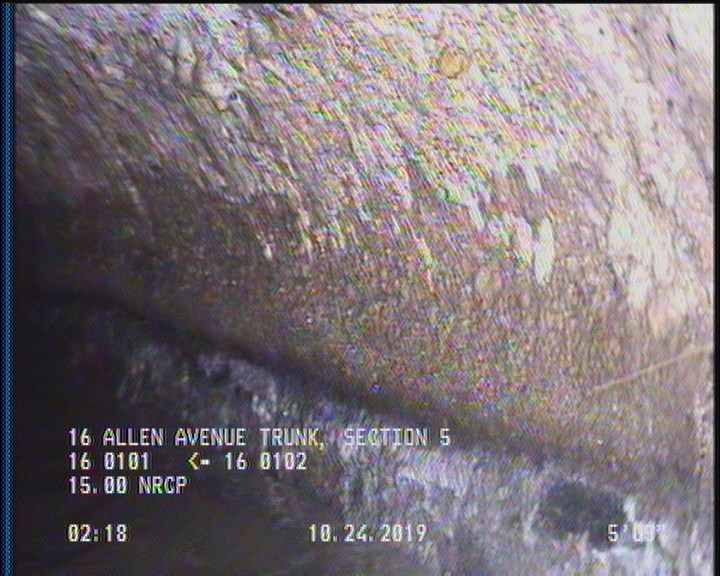

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

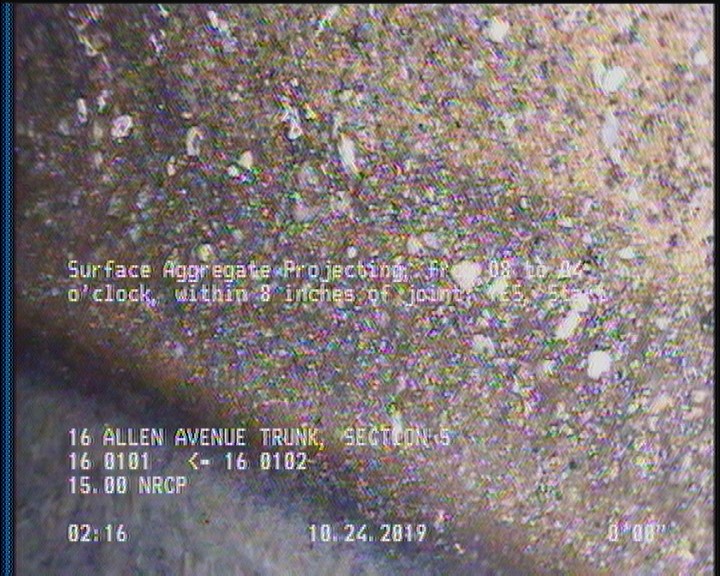

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 2 | SZ | 65% MAG |
| 2 | SSS | — |
| 277.8 | AMH | 16 0102 |
| 276.5 | SAP | — |
| 0 | AMH | 16 0101 |
| 276.5 | SSS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 275 | SZ | 75% MAG |
| 276.5 | DAGS | — |
Properties (6)
- additional_info
- SC378722
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-24T02:03:00-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
