Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2019, 08:48 AM

  • 16 0100_16 0099 _10242019_010124.mp4

Date
10/24/2019
W/O
792693
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00641
PipeID
P13138
Time
1:48 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7053
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_792693_TV16009_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
16 0100
Downstream MH
16 0099
Dir. of Survey
Downstream
Length Surveyed
376.9 ft.
Total Length
376.9 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
375
O&M Index
2
O&M Quick
2N00
O&M Rating
150
Overall Index
2
Overall Quick
—
Overall Rating
525
Pipe schematic from manhole 16 0100 to 16 0099
MH: 16 0100MH: 16 0099downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 01000 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start374 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG375.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish375.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish375.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish375.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE376.9 ft. AMH - Downstream Manhole, Survey Ends - 16 0099

Observation photos (5)

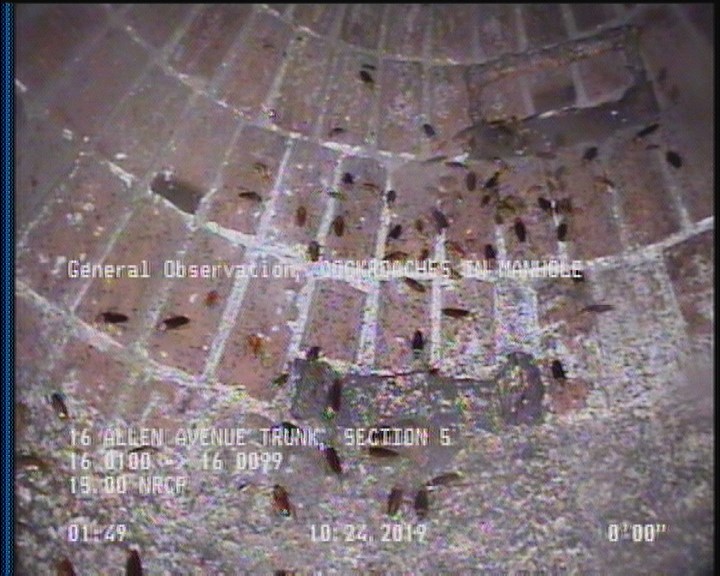

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

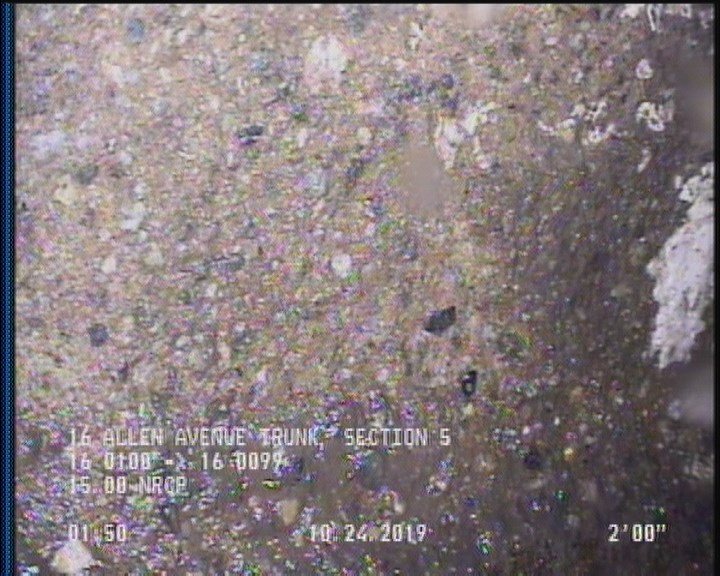

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

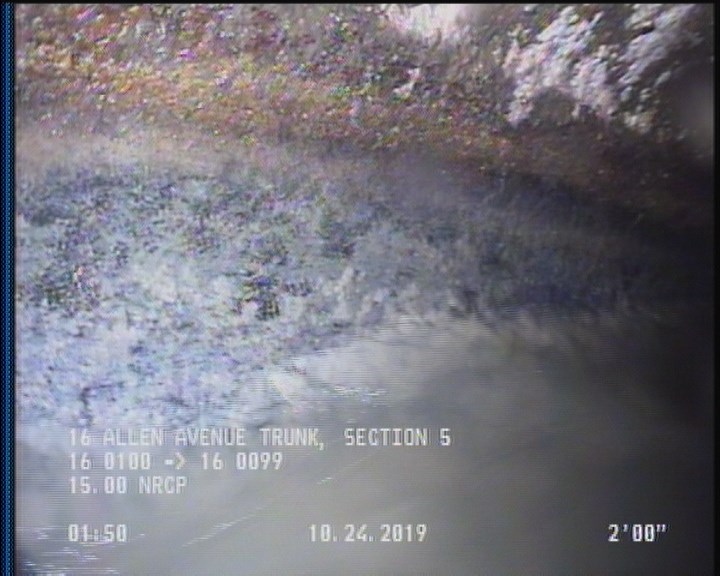

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

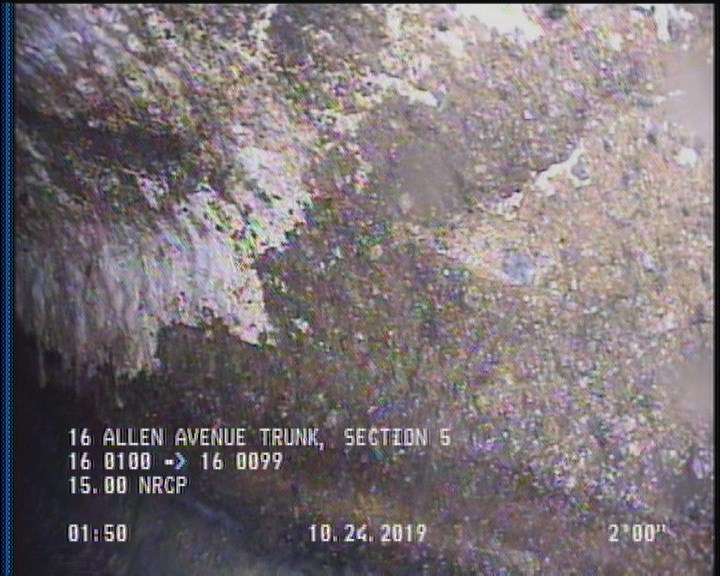

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

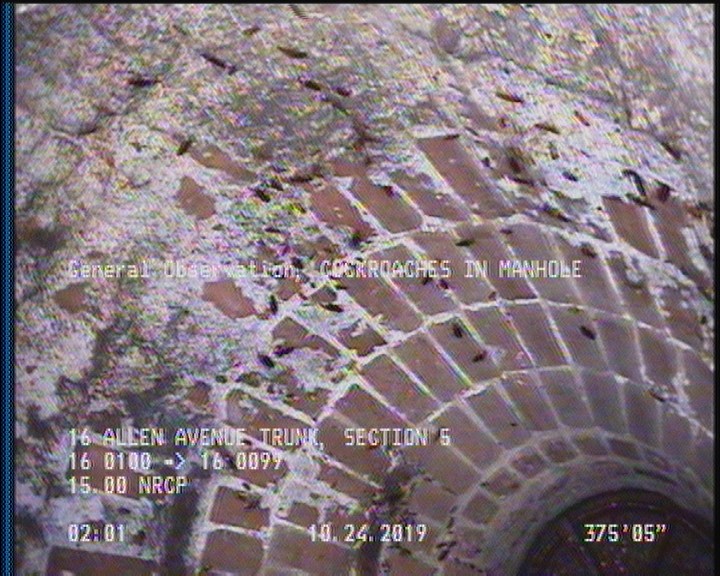

  • General Observation - COCKROACHES IN MANHOLE

    375.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13138Work order 792693

Observations (14)

DistanceCodeObservation
375.4SSS—
375.4DAGS—
0MWL—
376.9AMH16 0099
375.4SAP—
375.4MGOCOCKROACHES IN MANHOLE
0MWM—
2SAP—
2SZ65% MAG
2DAGS—
2SSS—
0AMH16 0100
0MGOCOCKROACHES IN MANHOLE
374SZ75% MAG

Properties (6)

additional_info
SC378722
custom_field_two
2
customer
LACSD
datetime
2019-10-24T01:48:04-07:00
documentation
PRO PIPE
is_lateral_inspection
false
