Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2019, 05:58 AM

  • 16 0099_16 0098 _10242019_221631.mp4

Date
10/24/2019
W/O
792693
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00641
PipeID
P13137
Time
10:58 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7054
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_792693_TV16009_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
16 0099
Downstream MH
16 0098
Dir. of Survey
Downstream
Length Surveyed
366.3 ft.
Total Length
366.3 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
360
O&M Index
2
O&M Quick
2M00
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
504
Pipe schematic from manhole 16 0099 to 16 0098
MH: 16 0099MH: 16 0098downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00992 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start363 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG364.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish364.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish364.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE364.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish366.3 ft. AMH - Downstream Manhole, Survey Ends - 16 0098

Observation photos (5)

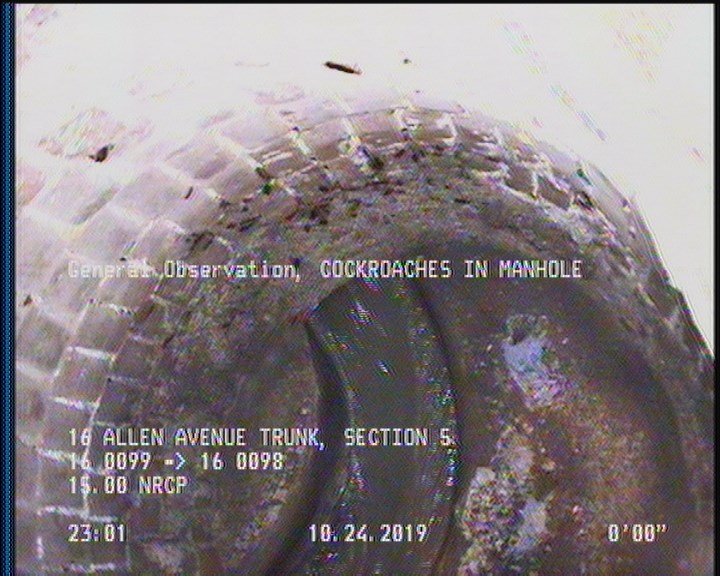

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

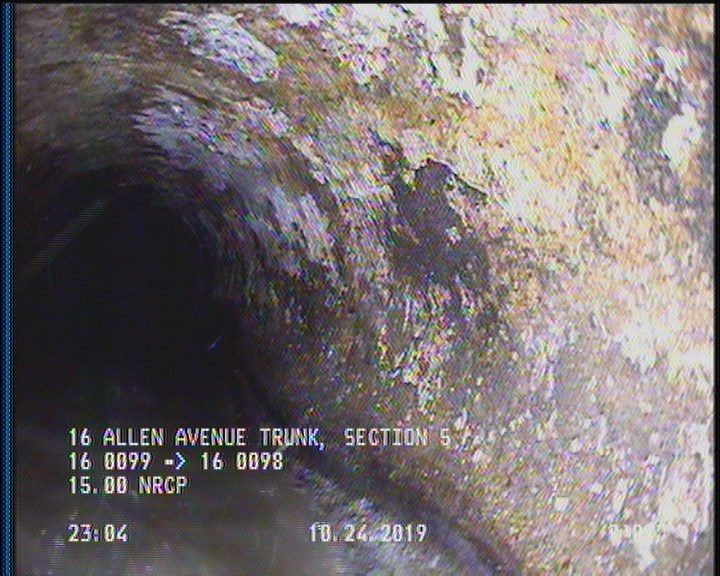

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

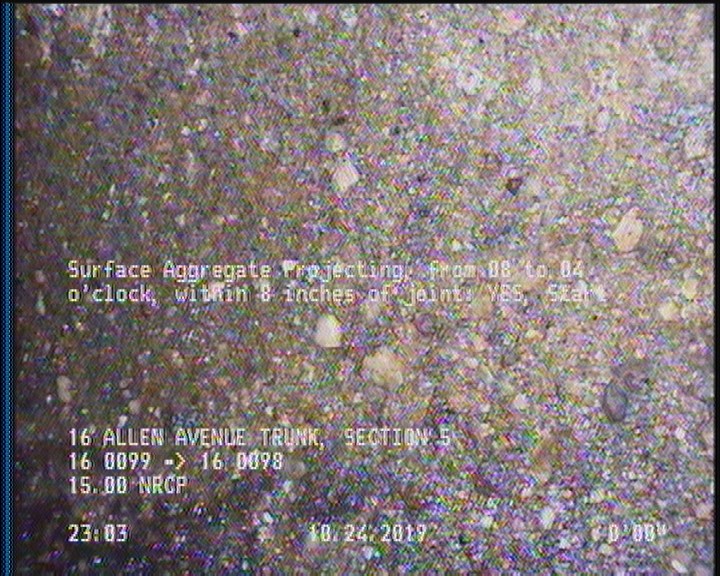

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

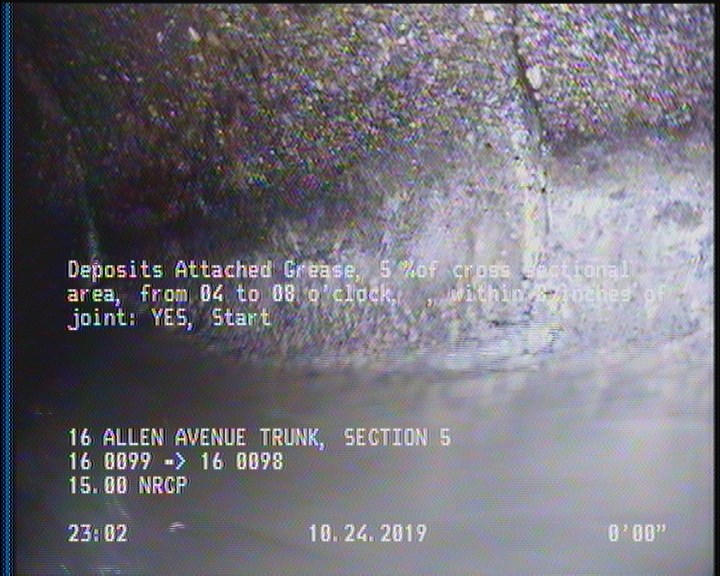

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

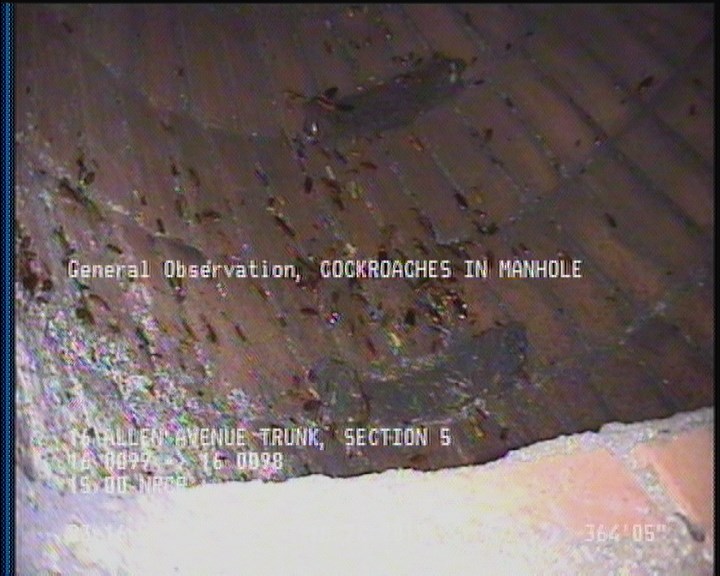

  • General Observation - COCKROACHES IN MANHOLE

    364.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13137Work order 792693

Observations (14)

DistanceCodeObservation
364.4DAGS—
364.4SAP—
2SSS—
364.4MGOCOCKROACHES IN MANHOLE
2SZ65% MAG
0MWM—
363SZ65% MAG
0MGOCOCKROACHES IN MANHOLE
0MWL—
366.3AMH16 0098
364.4SSS—
2SAP—
2DAGS—
0AMH16 0099

Properties (6)

additional_info
SC378723
custom_field_two
2
customer
LACSD
datetime
2019-10-24T22:58:29-07:00
documentation
PRO PIPE
is_lateral_inspection
false
