Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2019, 07:53 AM

  • 16 0096_16 0095 _10252019_000659.mp4

Date
10/25/2019
W/O
792693
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00641
PipeID
P13134
Time
12:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7054
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_792693_TV16009_OCT2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
16 0096
Downstream MH
16 0095
Dir. of Survey
Downstream
Length Surveyed
355.2 ft.
Total Length
355.2 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
350
O&M Index
2
O&M Quick
2M00
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
490
Pipe schematic from manhole 16 0096 to 16 0095
MH: 16 0096MH: 16 0095downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00960 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG353 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG354 ft. MGO - General Observation - ROACHES @ MH354.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish354.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish354.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish355.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0095355.2 ft. MGO - General Observation - CONN @ MH 11 O'CLOCK/ACTIVE

Observation photos (3)

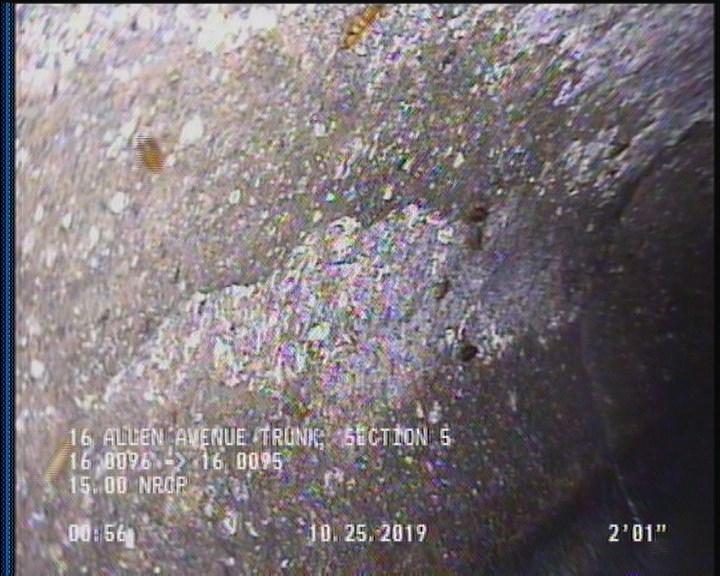

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

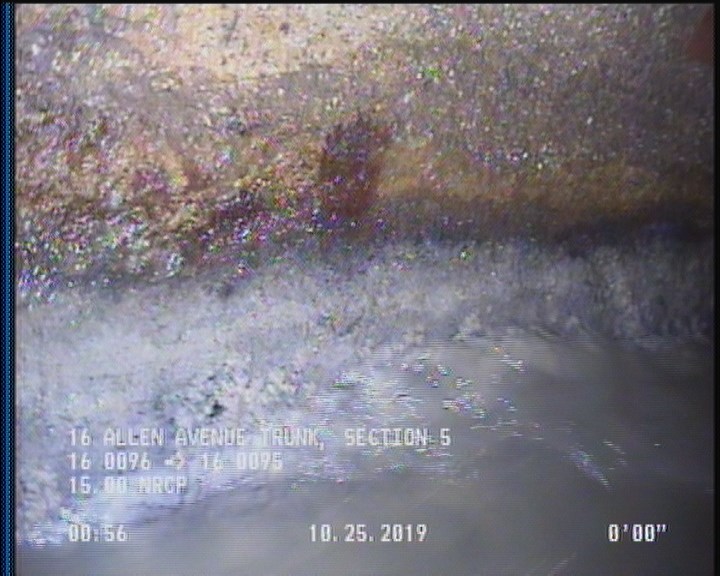

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

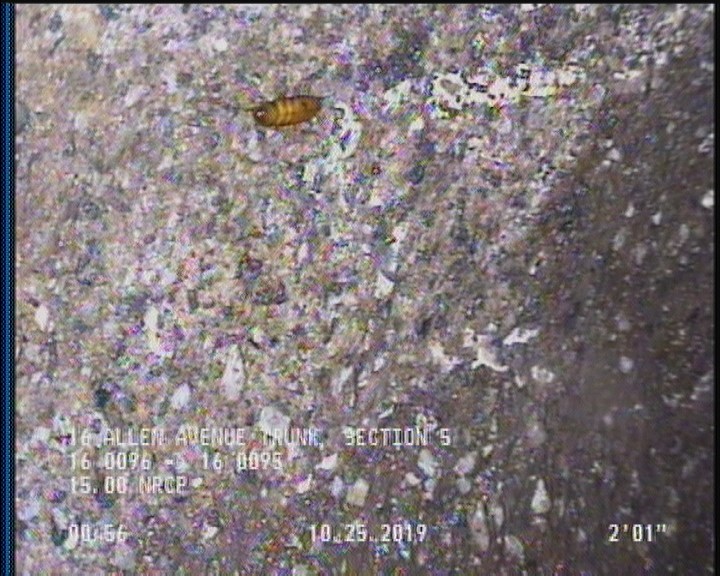

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13134Work order 792693

Observations (14)

DistanceCodeObservation
0MWM—
2SSS—
0AMH16 0096
2DAGS—
355.2AMH16 0095
355.2MGOCONN @ MH 11 O'CLOCK/ACTIVE
2SAP—
354.2DAGS—
0MWL—
2SZ65% MAG
354.2SAP—
353SZ65% MAG
354MGOROACHES @ MH
354.2SSS—

Properties (6)

additional_info
SC378723
custom_field_two
2
customer
LACSD
datetime
2019-10-25T00:53:34-07:00
documentation
PRO PIPE
is_lateral_inspection
false
