Wastewater/Activity/PacpInspection/1.0Oct 3, 2019, 09:03 AM
E 0126_G 0094_10032019_020827.mp4
- Date
- 10/03/2019
- W/O
- 787679
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00027
- PipeID
- P07608
- Time
- 2:03 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7055
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787679_TV30070_SEP2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- E 0126
- Downstream MH
- G 0094
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.7 ft.
- Total Length
- 16.7 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (3)
0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

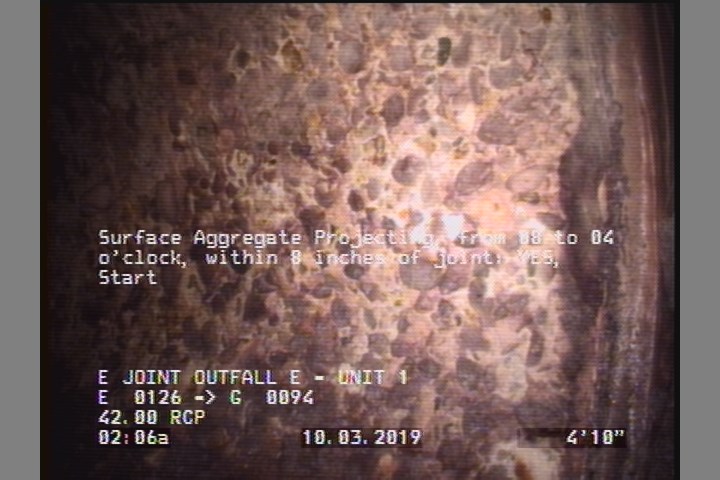

4.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
14.2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 14.2 | SRV | — |
| 7.4 | MGO | MAG COATING THROUGHOUT PIPE |
| 16.7 | MGO | CONNECTION AT 3 O'CLOCK STOPLOG |
| 0 | MGO | CONNECTION AT 3 O'CLOCK |
| 0 | DAGS | — |
| 0 | AMH | E 0126 |
| 16.7 | SAP | — |
| 4.8 | SAP | — |
| 16.7 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 16.7 | AMH | G 0094 |
Properties (6)
- additional_info
- SC378655
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-03T02:03:58-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
