Wastewater/Activity/PacpInspection/1.0Oct 3, 2019, 07:35 AM
E 0023_E 0022_10032019_004816.mp4
- Date
- 10/03/2019
- W/O
- 787679
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00027
- PipeID
- P07604
- Time
- 12:35 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7055
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787679_TV30070_SEP2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- E 0023
- Downstream MH
- E 0022
- Dir. of Survey
- Downstream
- Length Surveyed
- 398 ft.
- Total Length
- 398 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 390
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 244
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 634
Observation photos (3)

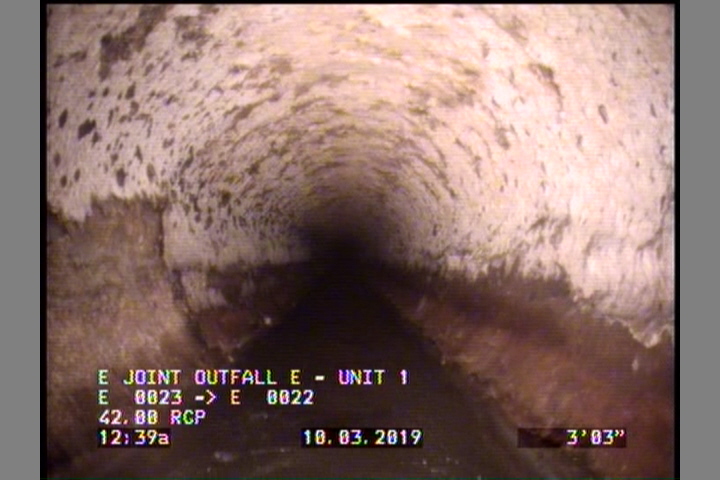

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

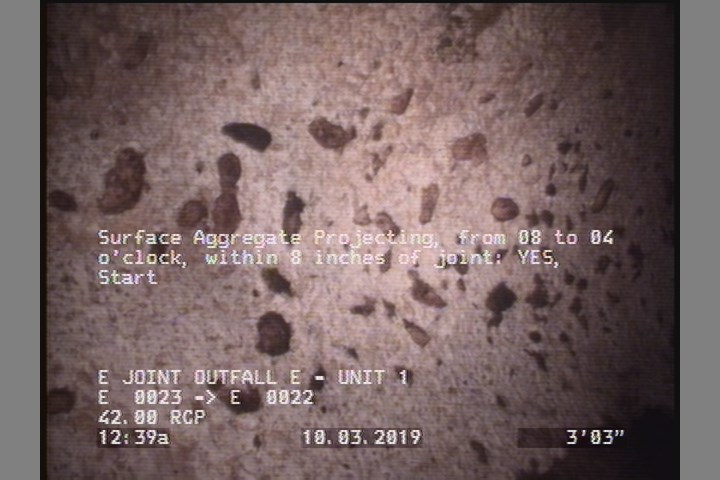

3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

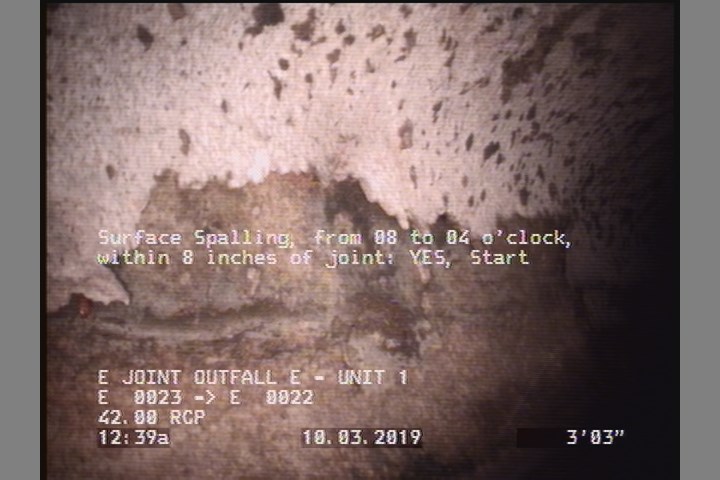

3.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 3.3 | MGO | MAG COATING THROUGHOUT PIPE |
| 3 | DAGS | — |
| 0 | MWM | — |
| 180.9 | DSC | — |
| 318 | MGO | CAMERA UNSTABLE DUE TO DEBRIS |
| 3.3 | SAP | — |
| 398 | AMH | E 0022 |
| 3.3 | SSS | — |
| 0 | AMH | E 0023 |
| 397 | DAGS | — |
| 398 | MGO | CONNECTION AT 9 O'CLOCK |
| 395.1 | SAP | — |
| 395.1 | SSS | — |
| 395.1 | DSC | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC378655
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-10-03T00:35:55-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
