Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 08:02 AM

  • 14 0305_14 0304A_08272019_011510.mp4

Date
08/27/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P18371
Time
1:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6883
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0305
Downstream MH
14 0304A
Dir. of Survey
Downstream
Length Surveyed
309.5 ft.
Total Length
309.5 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
305
O&M Index
2
O&M Quick
2K00
O&M Rating
122
Overall Index
2
Overall Quick
—
Overall Rating
427
Pipe schematic from manhole 14 0305 to 14 0304A
MH: 14 0305MH: 14 0304Adownstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 14 03050 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. MGO - General Observation - MAG COATING THROUGHOUT307.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish309.5 ft. AMH - Downstream Manhole, Survey Ends - 14 0304A309.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE309.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (6)

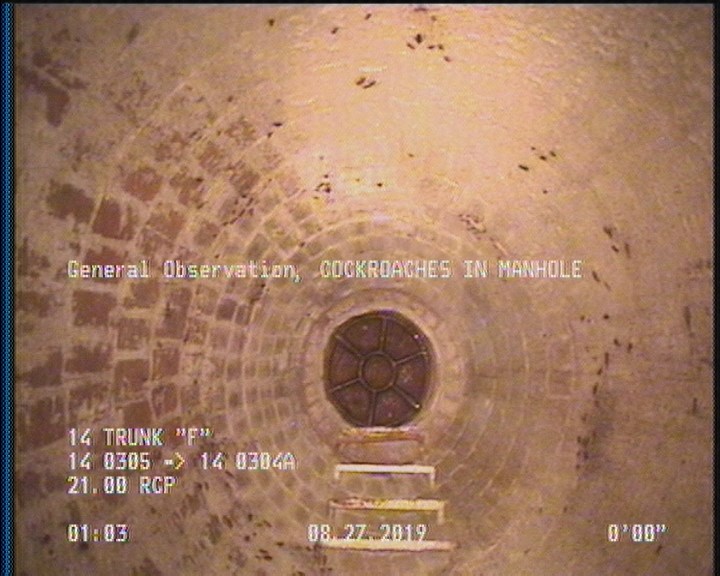

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

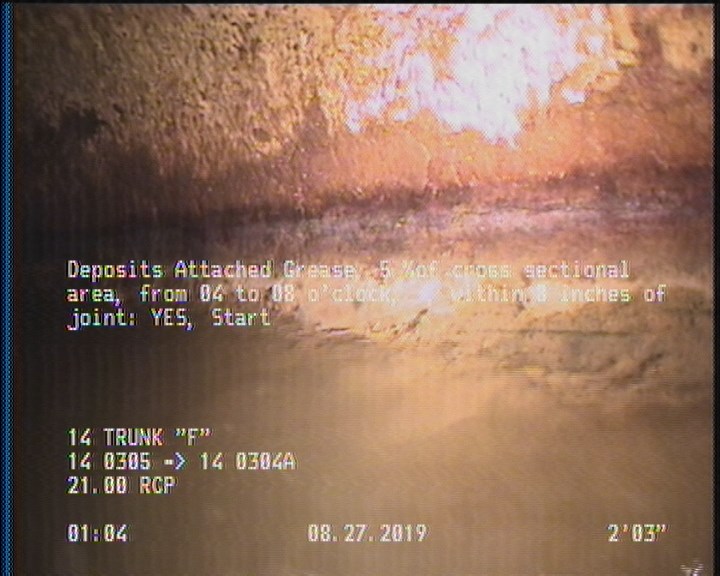

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

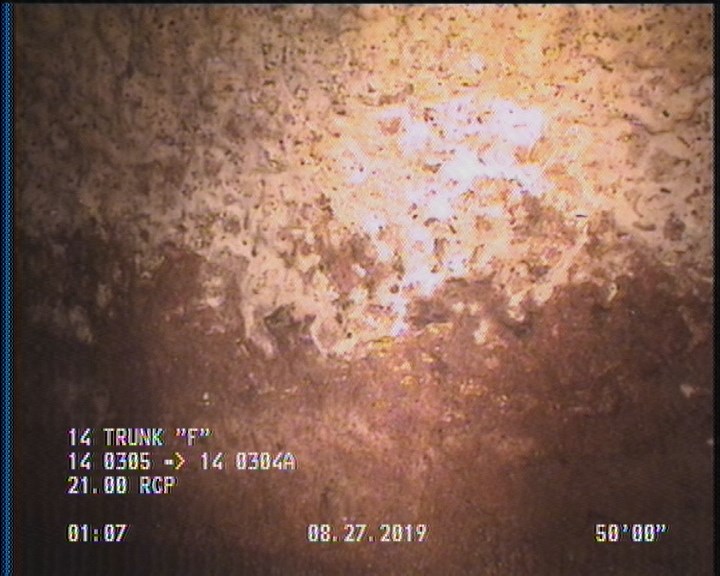

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

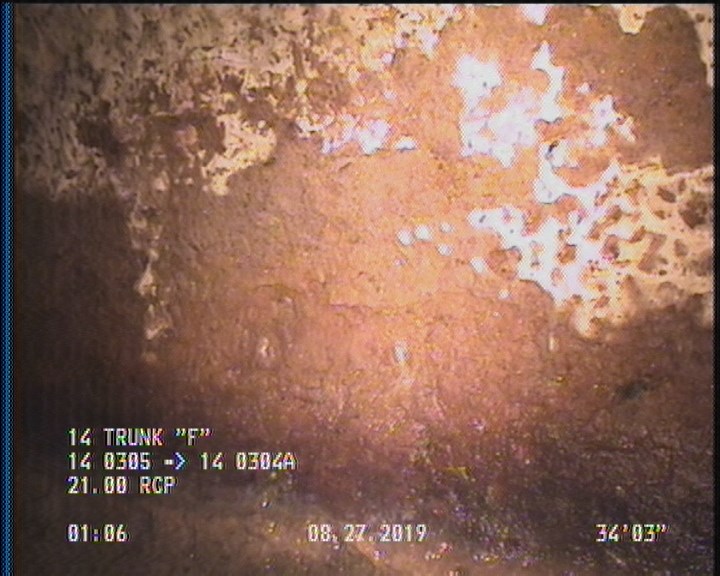

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

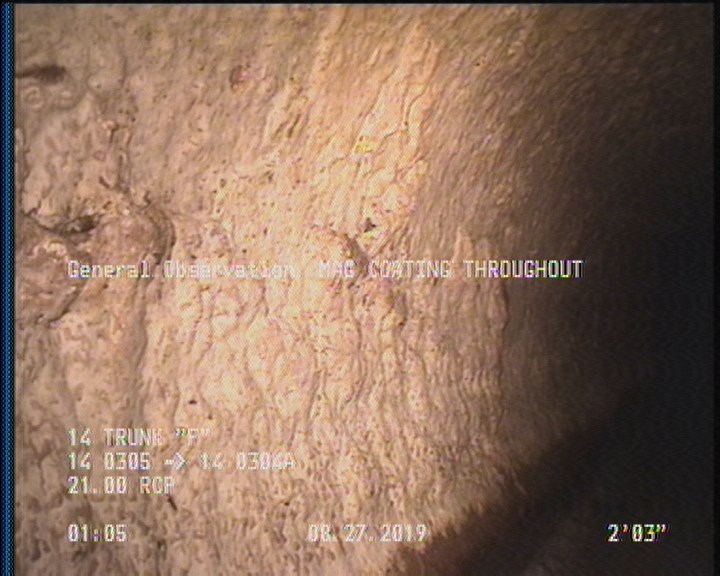

  • General Observation - MAG COATING THROUGHOUT

    2.2 ft. - General Observation - MAG COATING THROUGHOUT

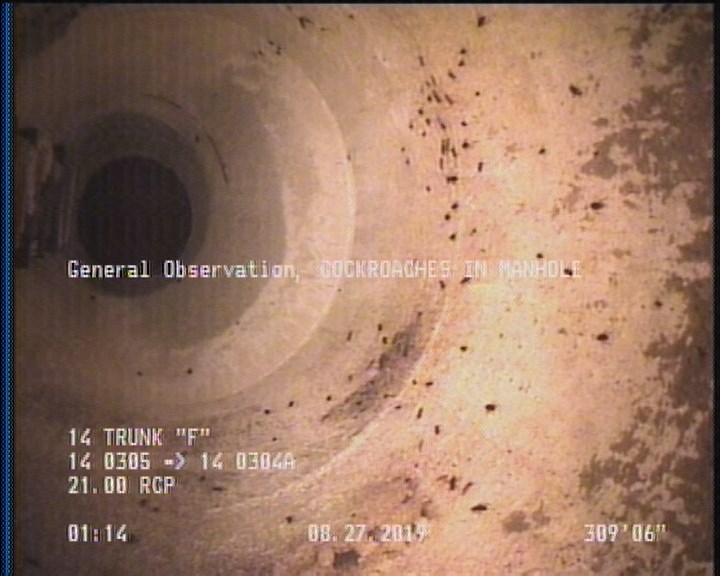

  • General Observation - COCKROACHES IN MANHOLE

    309.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18371Work order 782143

Observations (15)

DistanceCodeObservation
0MWL—
2.2SAP—
309.5AMH14 0304A
0MGOCOCKROACHES IN MANHOLE
307.9SAP—
2DAGS—
0AMH14 0305
309.5MGOCOCKROACHES IN MANHOLE
309.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2.2SSS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
307.9SSS—
2.2MGOMAG COATING THROUGHOUT
0MWM—
307.9DAGS—

Properties (6)

additional_info
SC378468
custom_field_two
3
customer
LACSD
datetime
2019-08-27T01:02:33-07:00
documentation
PRO PIPE
is_lateral_inspection
false
