Wastewater/Activity/PacpInspection/1.0Aug 28, 2019, 05:53 AM
14 0301A_14 0301_08272019_233405.mp4
- Date
- 08/27/2019
- W/O
- 782143
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P18366
- Time
- 10:53 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6884
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782143_TV14028_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 14 0301A
- Downstream MH
- 14 0301
- Dir. of Survey
- Downstream
- Length Surveyed
- 313.3 ft.
- Total Length
- 313.3 ft.
- Structural Index
- 2
- Structural Quick
- 2K00
- Structural Rating
- 124
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 170
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 294
Observation photos (3)

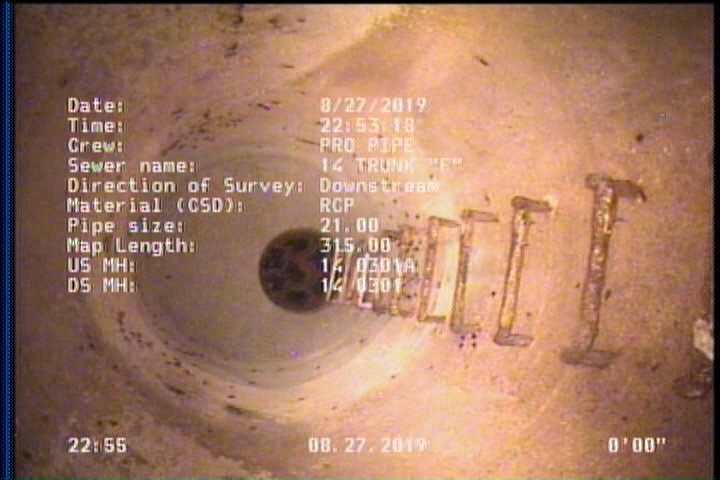

0 ft. - Upstream Manhole, Survey Begins - 14 0301A

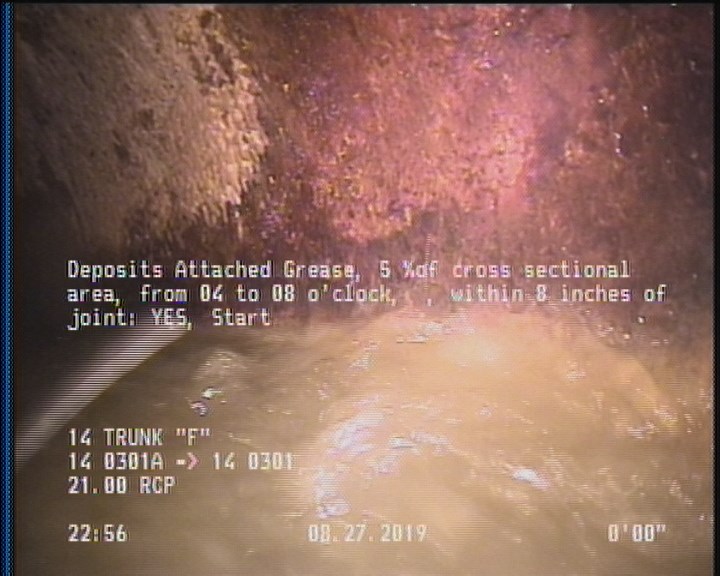

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

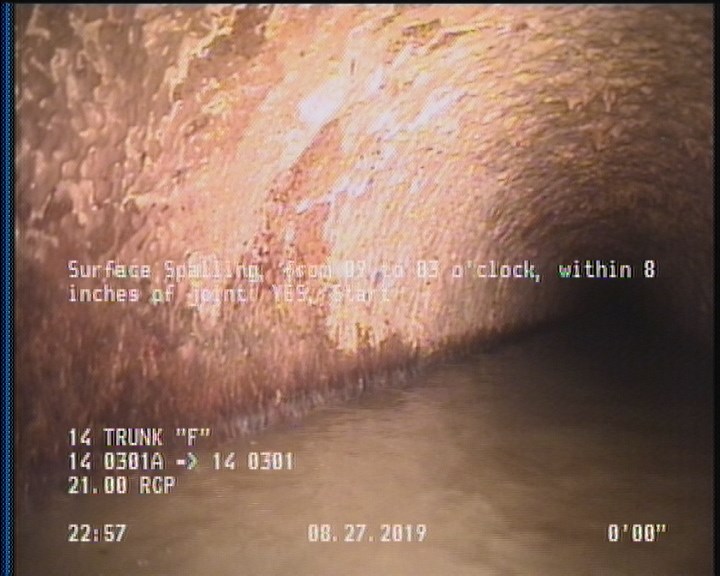

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 313.3 | DAGS | — |
| 0 | MWM | — |
| 313.3 | SSS | — |
| 196 | DSZ | DEBRIS THROUGHOUT |
| 40.9 | MGO | MAG COATING THROUGHOUT |
| 2 | DAGS | — |
| 0 | AMH | 14 0301A |
| 0 | MWL | — |
| 2 | SSS | — |
| 313.3 | DSZ | — |
| 313.3 | AMH | 14 0301 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (6)
- additional_info
- SC378600
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-27T22:53:18-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
