Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 28, 2019, 06:53 AM

  • 14 0301_14 0300A_08282019_000338.mp4

Date
08/27/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P18365
Time
11:53 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6884
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0301
Downstream MH
14 0300A
Dir. of Survey
Downstream
Length Surveyed
105.2 ft.
Total Length
105.2 ft.
Structural Index
2
Structural Quick
3C2C
Structural Rating
94
O&M Index
2
O&M Quick
2C00
O&M Rating
40
Overall Index
2
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 14 0301 to 14 0300A
MH: 14 0301MH: 14 0300Adownstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 03010 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start103 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish103 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish103 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish105.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK105.2 ft. AMH - Downstream Manhole, Survey Ends - 14 0300A105.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (6)

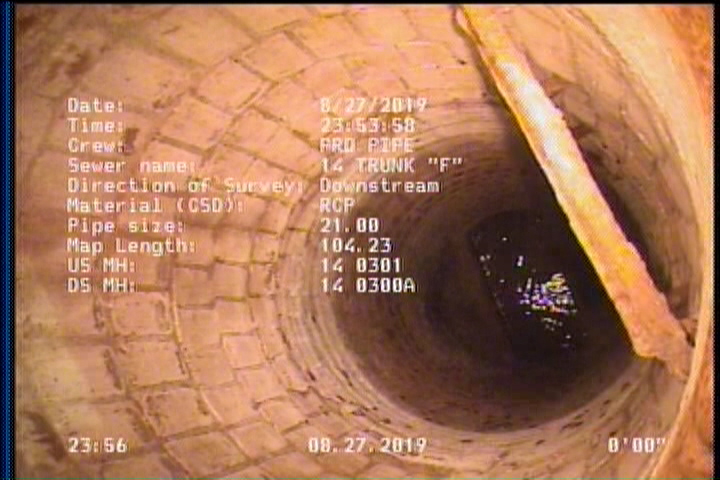

  • Upstream Manhole, Survey Begins - 14 0301

    0 ft. - Upstream Manhole, Survey Begins - 14 0301

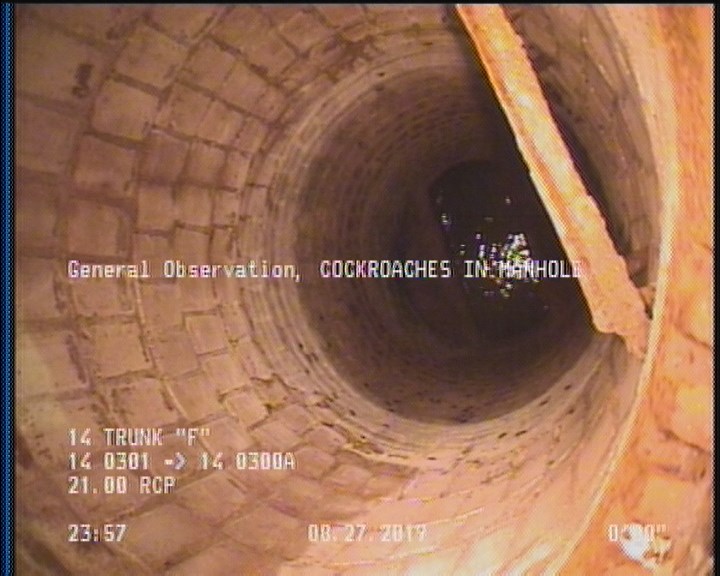

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

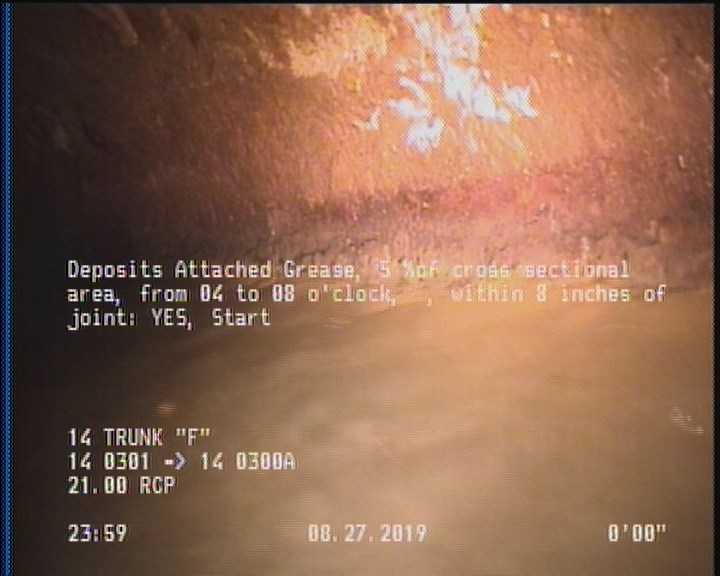

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

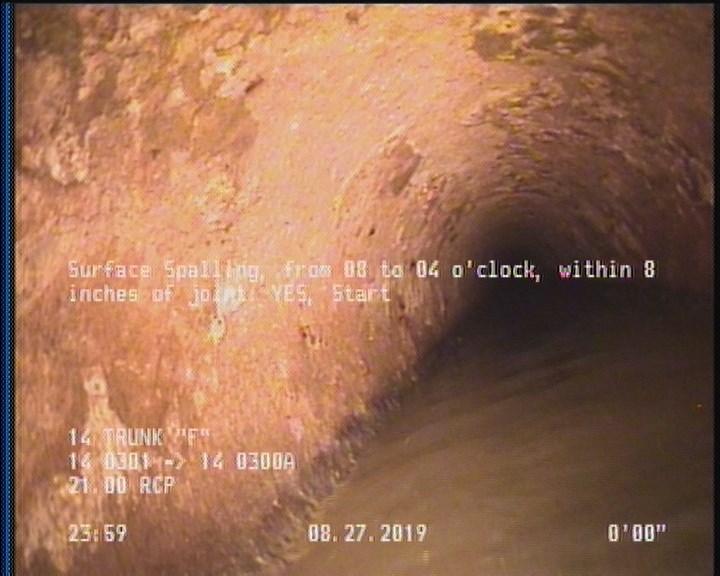

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

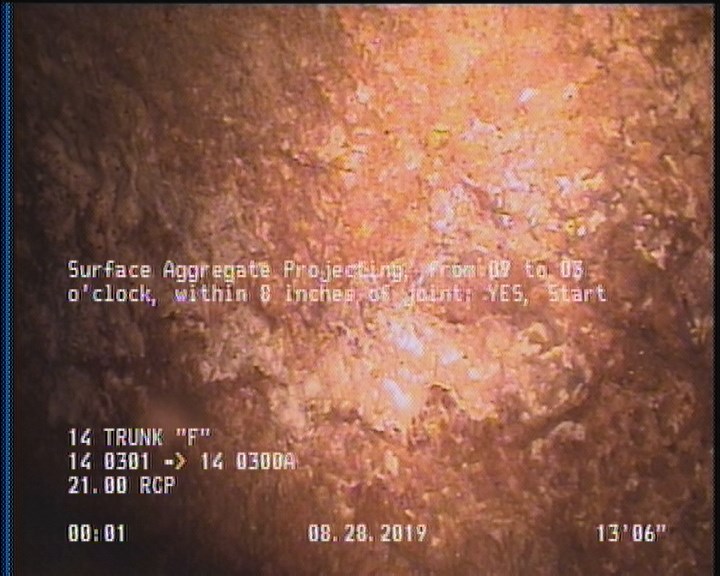

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    13.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

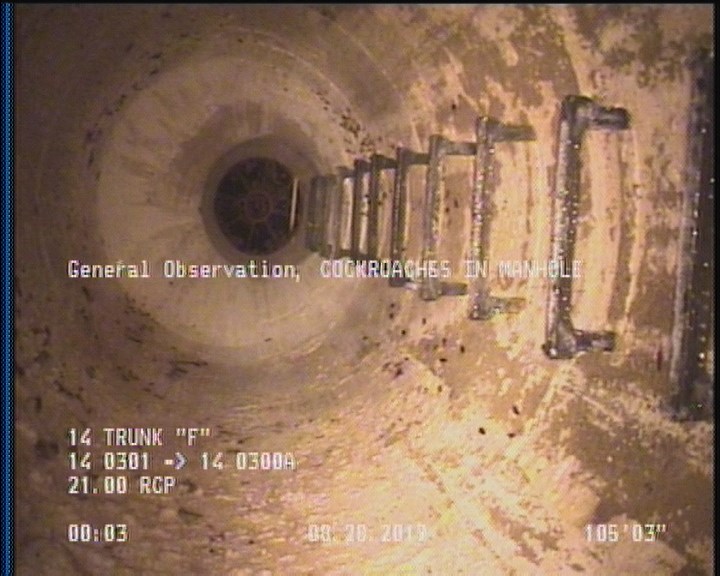

  • General Observation - COCKROACHES IN MANHOLE

    105.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18365Work order 782143

Observations (13)

DistanceCodeObservation
105.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
103DAGS—
0MWL—
0AMH14 0301
2DAGS—
2SSS—
103SSS—
103SAP—
13.5SAP—
105.2AMH14 0300A
0MWM—
0MGOCOCKROACHES IN MANHOLE
105.2MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC378600
custom_field_two
3
customer
LACSD
datetime
2019-08-27T23:53:58-07:00
documentation
PRO PIPE
is_lateral_inspection
false
