Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 28, 2019, 07:06 AM

  • 14 0300A_14 0300_08282019_002047.mp4

Date
08/28/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P18364
Time
12:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6884
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0300A
Downstream MH
14 0300
Dir. of Survey
Downstream
Length Surveyed
393 ft.
Total Length
393 ft.
Structural Index
3
Structural Quick
3N2O
Structural Rating
387
O&M Index
2
O&M Quick
2P00
O&M Rating
168
Overall Index
2
Overall Quick
—
Overall Rating
555
Pipe schematic from manhole 14 0300A to 14 0300
MH: 14 0300AMH: 14 0300downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 14 0300A0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 35 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start8.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start362.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS391 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish391 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish391 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish391 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish393 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 12 AND 3 O'CLOCK393 ft. AMH - Downstream Manhole, Survey Ends - 14 0300393 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

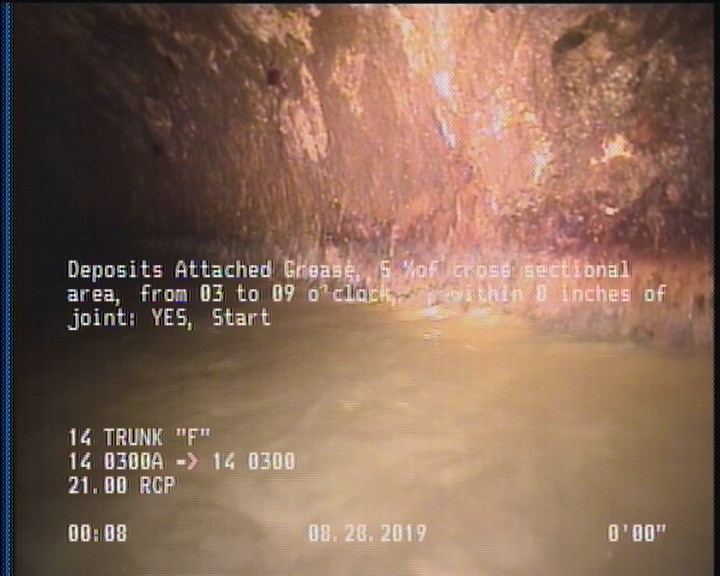

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

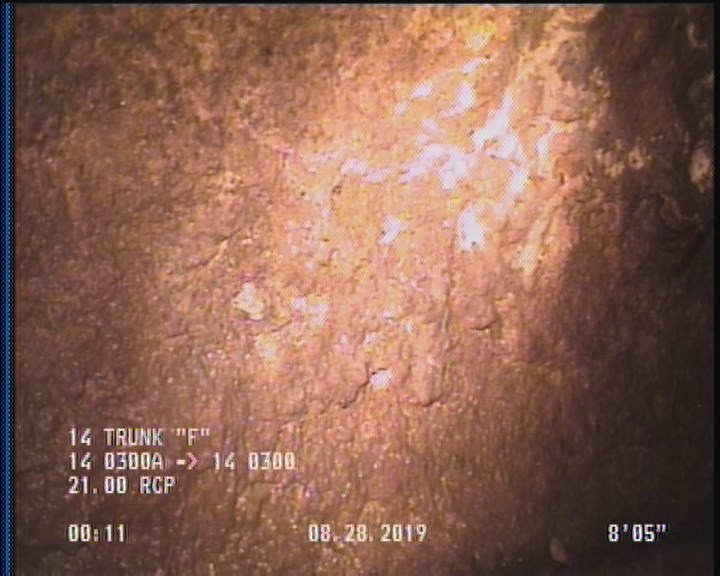

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

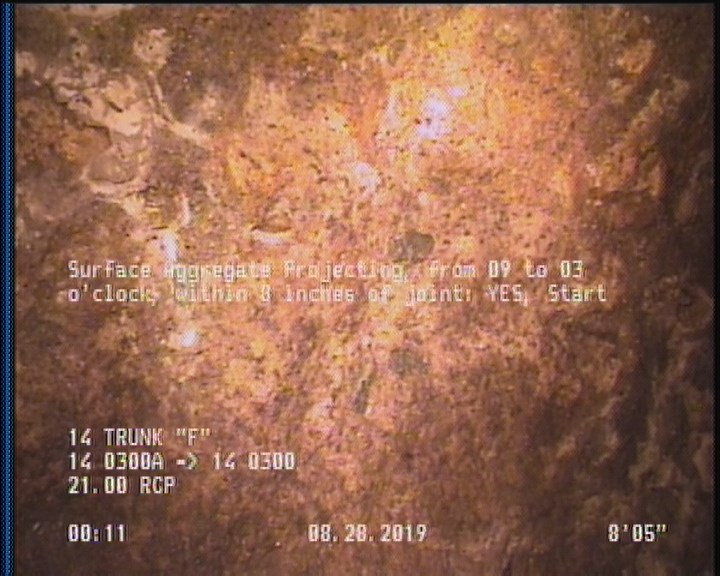

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    8.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

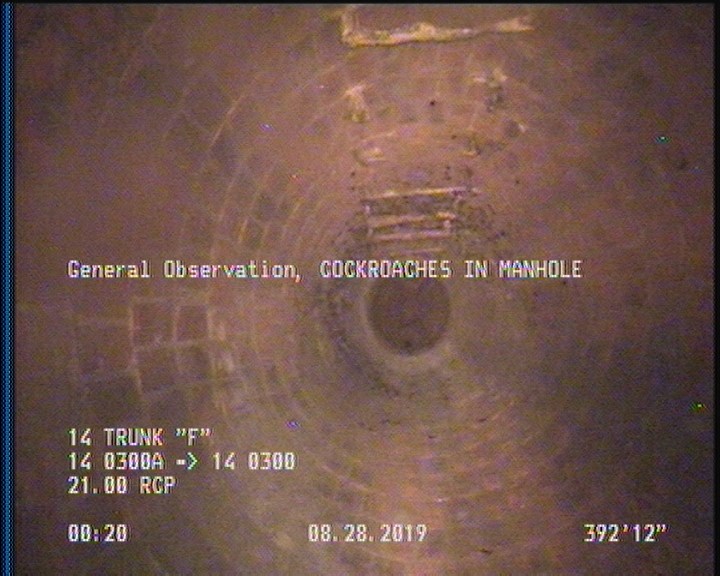

  • General Observation - COCKROACHES IN MANHOLE

    393 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18364Work order 782143

Observations (16)

DistanceCodeObservation
0MWM—
0MGOCOCKROACHES IN MANHOLE
391SAP—
0AMH14 0300A
8.4SAP—
391SSS—
393MGOACTIVE CONNECTION AT MH 12 AND 3 O'CLOCK
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
391DAGS—
2DAGS—
2SSS—
362.1DSZDEBRIS
393AMH14 0300
391DSZ—
393MGOCOCKROACHES IN MANHOLE
0MWL—

Properties (6)

additional_info
SC378600
custom_field_two
3
customer
LACSD
datetime
2019-08-28T00:06:45-07:00
documentation
PRO PIPE
is_lateral_inspection
false
