Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2019, 08:08 AM

  • 14 0293A_14 0970_08292019_011320.mp4

Date
08/29/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P23493
Time
1:08 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6885
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
09
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
14 0293A
Downstream MH
14 0970
Dir. of Survey
Downstream
Length Surveyed
61.7 ft.
Total Length
61.7 ft.
Structural Index
3
Structural Quick
3A2A
Structural Rating
60
O&M Index
2
O&M Quick
2A00
O&M Rating
24
Overall Index
2
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 14 0293A to 14 0970
MH: 14 0293AMH: 14 0970downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 0293A0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start59.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish59.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish59.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish61.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE61.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK61.7 ft. AMH - Downstream Manhole, Survey Ends - 14 0970

Observation photos (5)

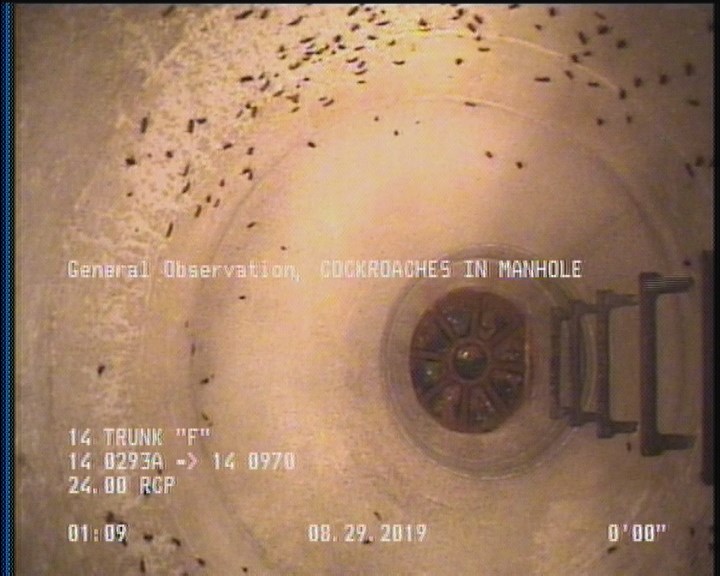

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

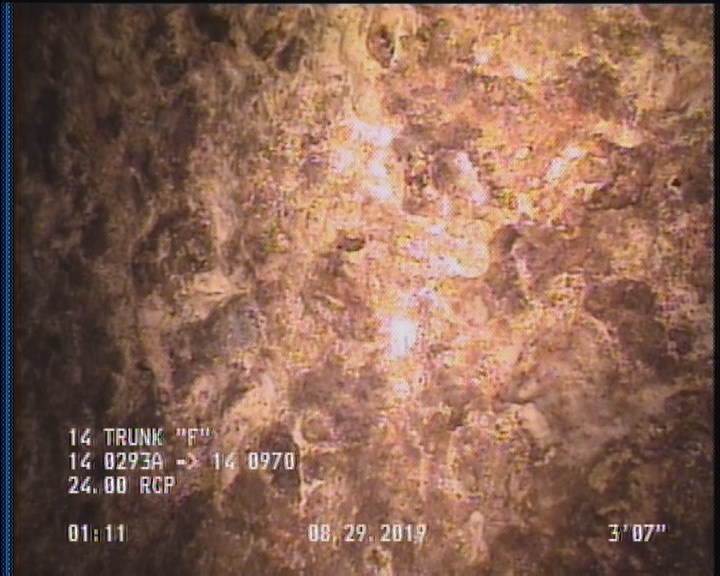

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

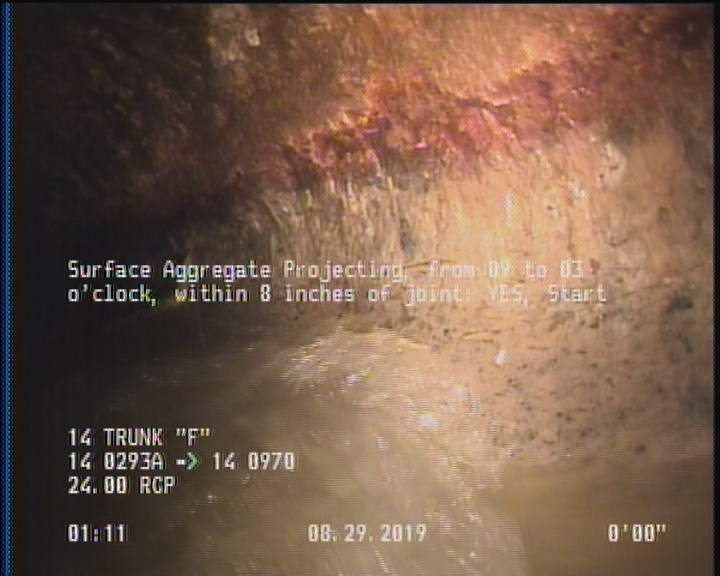

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

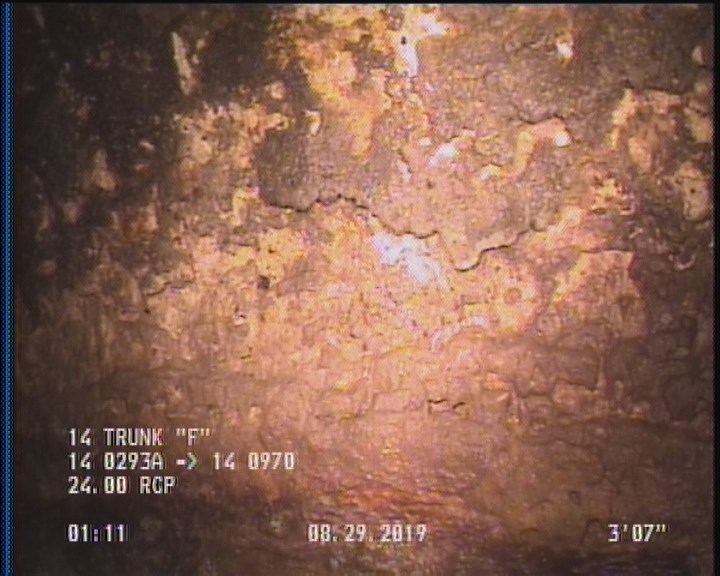

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

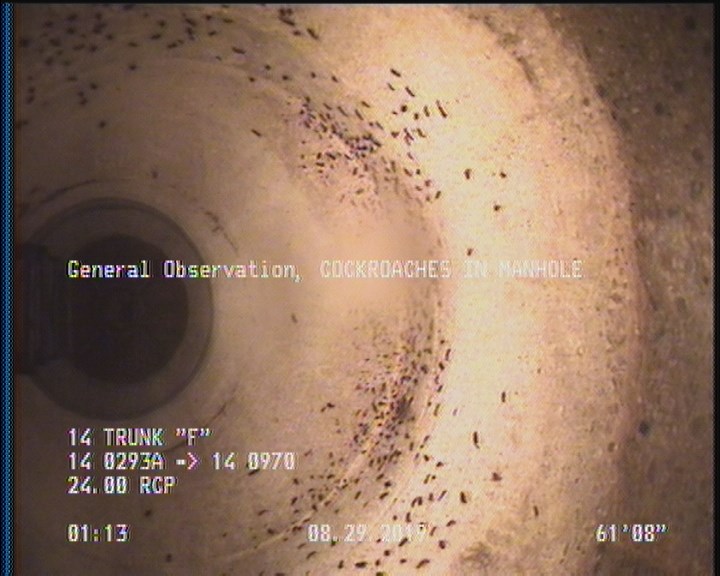

  • General Observation - COCKROACHES IN MANHOLE

    61.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P23493Work order 782143

Observations (14)

DistanceCodeObservation
59.7DAGS—
2SAP—
2DAGS—
61.7MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
61.7MGOACTIVE CONNECTION AT MH 9 O'CLOCK
59.7SAP—
0MWL—
59.7SSS—
61.7AMH14 0970
0AMH14 0293A
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2SSS—
0MWM—

Properties (6)

additional_info
SC378601
custom_field_two
3
customer
LACSD
datetime
2019-08-29T01:08:56-07:00
documentation
PRO PIPE
is_lateral_inspection
false
