Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 05:01 AM

  • 14 0310_14 0309_08262019_221936.mp4

Date
08/26/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P18379
Time
10:01 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6883
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0310
Downstream MH
14 0309
Dir. of Survey
Downstream
Length Surveyed
485.3 ft.
Total Length
485.3 ft.
Structural Index
3
Structural Quick
523R
Structural Rating
490
O&M Index
2
O&M Quick
2R00
O&M Rating
192
Overall Index
2
Overall Quick
—
Overall Rating
682
Pipe schematic from manhole 14 0310 to 14 0309
MH: 14 0310MH: 14 0309downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 03100 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start48.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish233.3 ft. SRV - Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES357 ft. SRV - Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES483.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish483.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish483.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish485.3 ft. AMH - Downstream Manhole, Survey Ends - 14 0309

Observation photos (7)

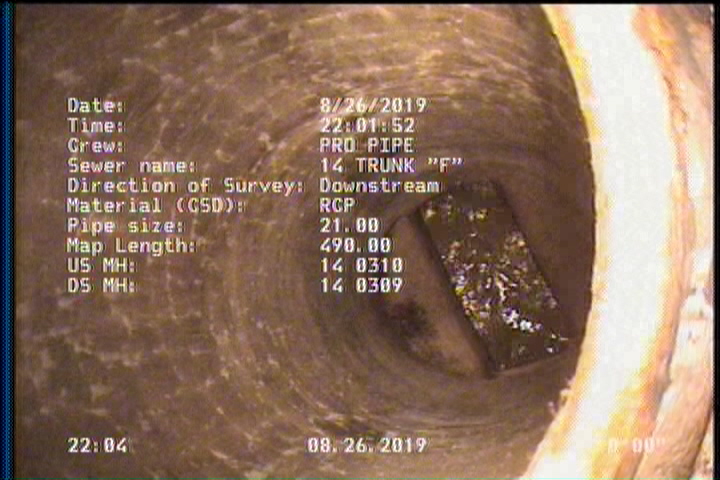

  • Upstream Manhole, Survey Begins - 14 0310

    0 ft. - Upstream Manhole, Survey Begins - 14 0310

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    48.8 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES

    233.3 ft. - Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES

  • Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES

    357 ft. - Surface Reinforcement Visible, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P18379Work order 782143

Observations (14)

DistanceCodeObservation
233.3SRV—
2DAGS—
483.6DAGS—
2SSS—
48.8SAP—
0MWL—
2SAV—
0AMH14 0310
485.3AMH14 0309
357SRV—
483.6SSS—
48.8SAV—
483.6SAP—
0MWM—

Properties (6)

additional_info
SC378468
custom_field_two
2
customer
LACSD
datetime
2019-08-26T22:01:52-07:00
documentation
PRO PIPE
is_lateral_inspection
false
