Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 05:20 AM
14 0309_14 0308B_08262019_223556.mp4
- Date
- 08/26/2019
- W/O
- 782143
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P18378
- Time
- 10:20 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6883
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782143_TV14028_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 14 0309
- Downstream MH
- 14 0308B
- Dir. of Survey
- Downstream
- Length Surveyed
- 173.7 ft.
- Total Length
- 173.7 ft.
- Structural Index
- 3
- Structural Quick
- 3F2F
- Structural Rating
- 170
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 68
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 238
Observation photos (4)

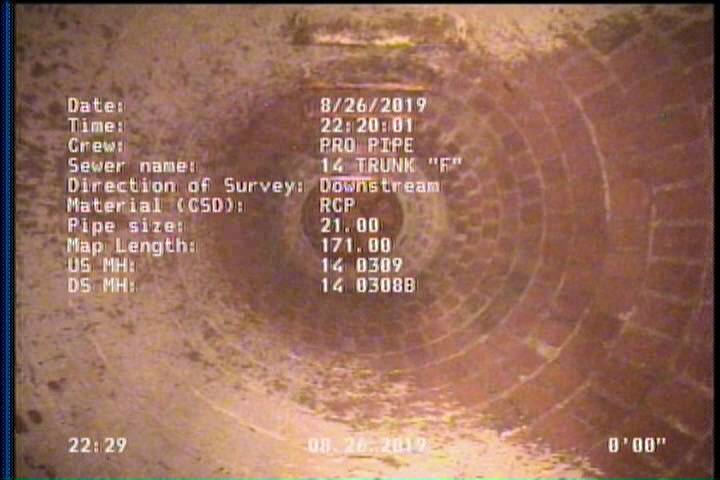

0 ft. - Upstream Manhole, Survey Begins - 14 0309

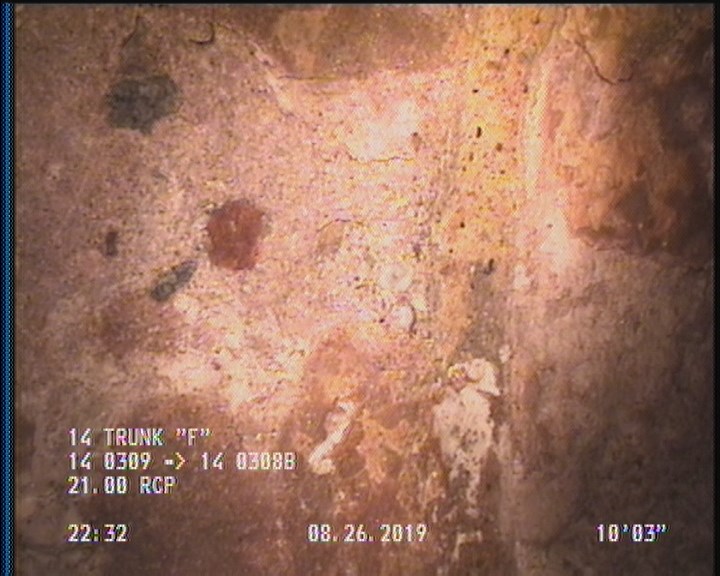

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

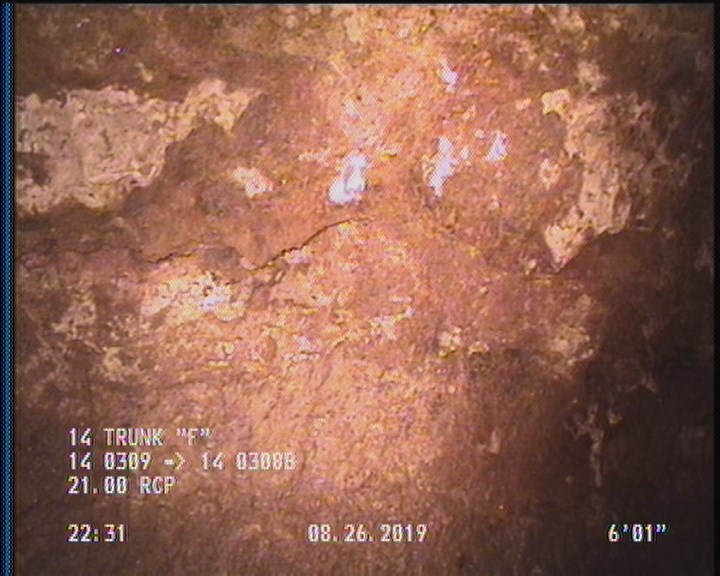

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

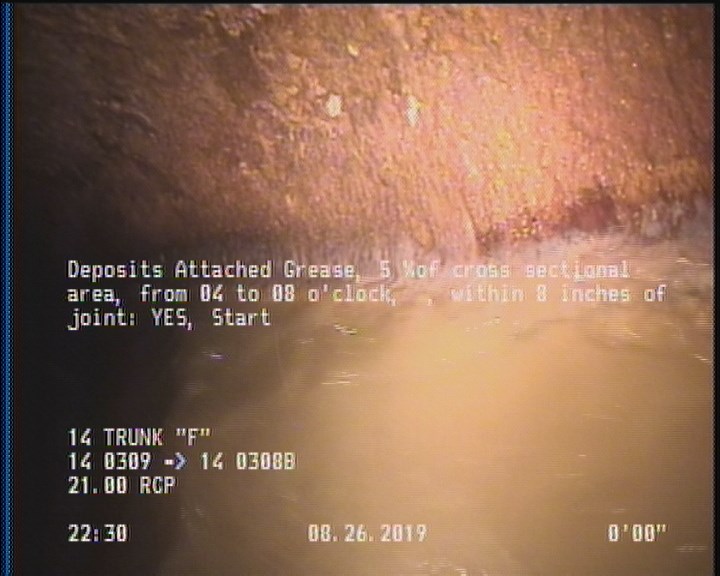

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0309 |
| 2 | SAP | — |
| 0 | MWL | — |
| 171.3 | SSS | — |
| 171.3 | SAP | — |
| 2 | SSS | — |
| 173.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 173.7 | AMH | 14 0308B |
| 0 | MWM | — |
| 2 | DAGS | — |
| 171.3 | DAGS | — |
Properties (6)
- additional_info
- SC378468
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-26T22:20:01-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
