Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 05:36 AM

  • 14 0308B_14 0308A_08262019_224642.mp4

Date
08/26/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S.LOPEZ
Sewer ID
Z00583
PipeID
P18377
Time
10:36 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6883
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0308B
Downstream MH
14 0308A
Dir. of Survey
Downstream
Length Surveyed
276.9 ft.
Total Length
276.9 ft.
Structural Index
3
Structural Quick
3J2J
Structural Rating
270
O&M Index
2
O&M Quick
2J11
O&M Rating
111
Overall Index
2
Overall Quick
—
Overall Rating
381
Pipe schematic from manhole 14 0308B to 14 0308A
MH: 14 0308BMH: 14 0308Adownstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 0308B0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. VC - Vermin Cockroach, within 8 inches of joint: NO - COCKROACHES IN MH2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start42 ft. MGO - General Observation - MAG COATING THROUGHOUT 60%274.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish274.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish274.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish276.9 ft. AMH - Downstream Manhole, Survey Ends - 14 0308A276.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK276.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

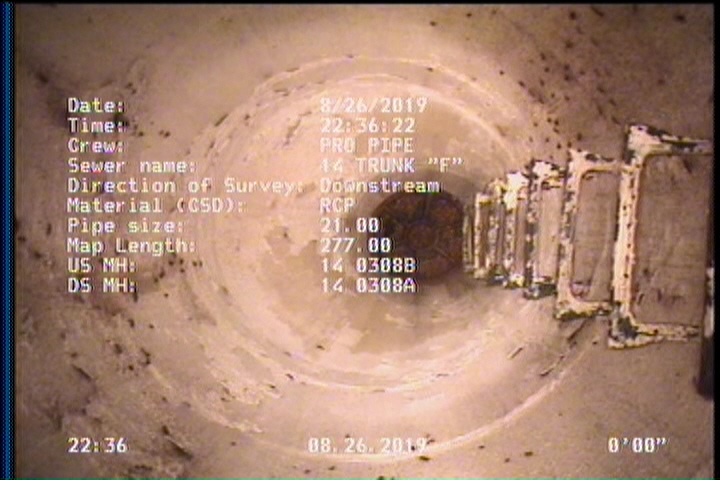

  • Vermin Cockroach, within 8 inches of joint: NO - COCKROACHES IN MH

    0 ft. - Vermin Cockroach, within 8 inches of joint: NO - COCKROACHES IN MH

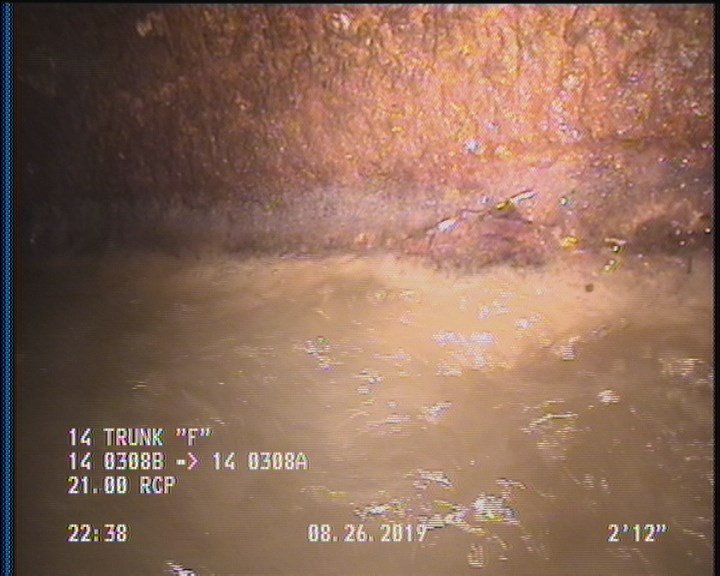

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

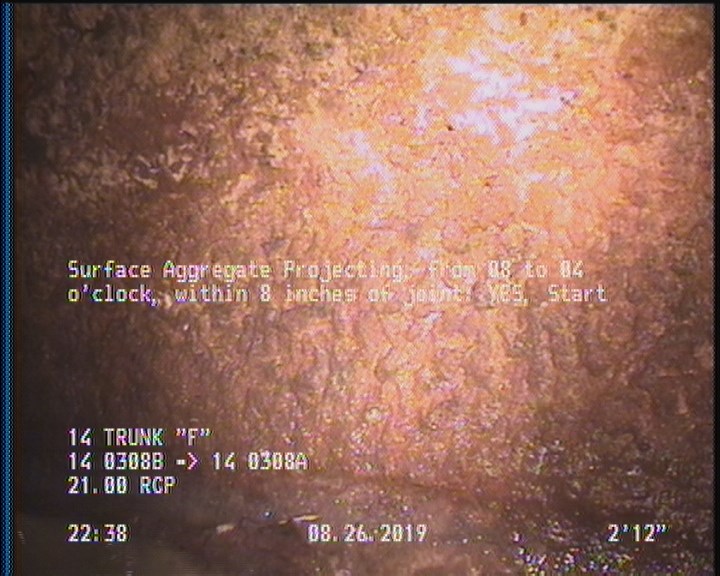

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

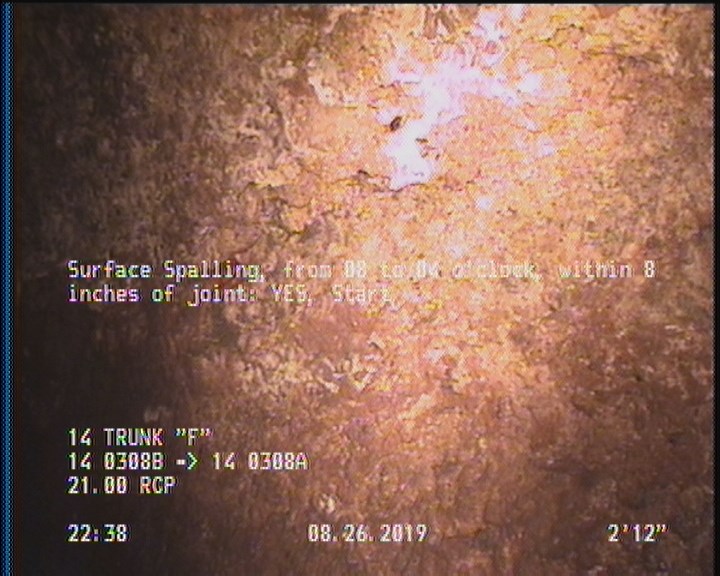

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

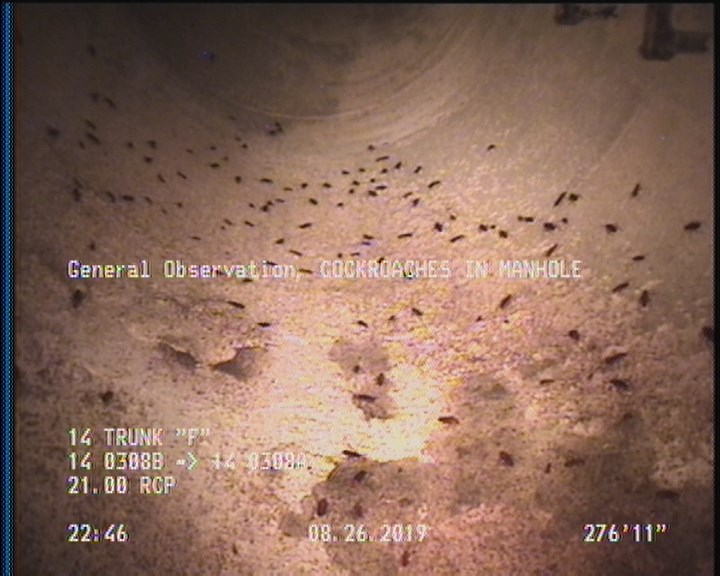

  • General Observation - COCKROACHES IN MANHOLE

    276.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18377Work order 782143

Observations (15)

DistanceCodeObservation
276.9AMH14 0308A
42MGOMAG COATING THROUGHOUT 60%
274.5SAP—
3SAP—
0MWL—
0AMH14 0308B
0MWM—
274.5SSS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
276.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
3SSS—
0VCCOCKROACHES IN MH
274.5DAGS—
2DAGS—
276.9MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC378468
custom_field_two
3
customer
LACSD
datetime
2019-08-26T22:36:22-07:00
documentation
PRO PIPE
is_lateral_inspection
false
