Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 05:59 AM

  • 14 0308_14 0307_08262019_232026.mp4

Date
08/26/2019
W/O
782143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00583
PipeID
P18375
Time
10:59 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6883
Sewer Name
14 TRUNK "F"
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_782143_TV14028_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
14 0308
Downstream MH
14 0307
Dir. of Survey
Downstream
Length Surveyed
492.2 ft.
Total Length
492.2 ft.
Structural Index
3
Structural Quick
513e
Structural Rating
773
O&M Index
2
O&M Quick
2S00
O&M Rating
196
Overall Index
3
Overall Quick
—
Overall Rating
969
Pipe schematic from manhole 14 0308 to 14 0307
MH: 14 0308MH: 14 0307downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 03080 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.6 ft. MGO - General Observation - MAG COATING THROUGHOUT10 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10 ft. SRV - Surface Reinforcement Visible, from 07 to 09 o'clock, within 8 inches of joint: NO10 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start490.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish490.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish490.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish490.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish492.2 ft. AMH - Downstream Manhole, Survey Ends - 14 0307

Observation photos (6)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - MAG COATING THROUGHOUT

    2.6 ft. - General Observation - MAG COATING THROUGHOUT

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

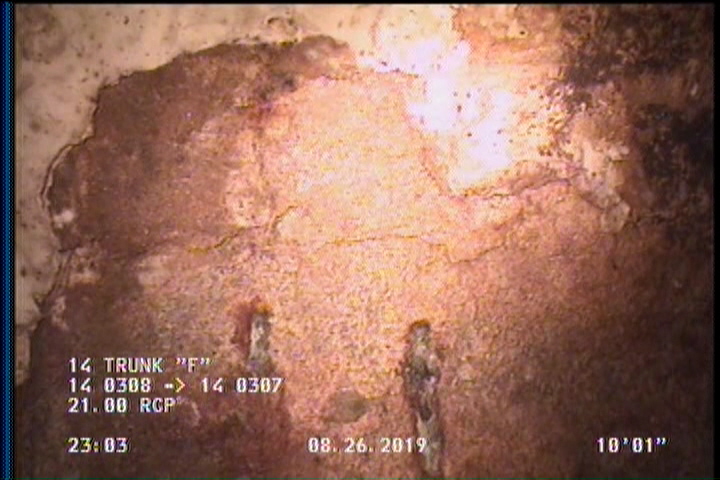

  • Surface Reinforcement Visible, from 07 to 09 o'clock, within 8 inches of joint: NO

    10 ft. - Surface Reinforcement Visible, from 07 to 09 o'clock, within 8 inches of joint: NO

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P18375Work order 782143

Observations (14)

DistanceCodeObservation
2.6MGOMAG COATING THROUGHOUT
10SSS—
10SAP—
490.4DAGS—
10SRV—
490.4SAV—
492.2AMH14 0307
0AMH14 0308
10SAV—
2DAGS—
0MWM—
490.4SSS—
490.4SAP—
0MWL—

Properties (6)

additional_info
SC378468
custom_field_two
3
customer
LACSD
datetime
2019-08-26T22:59:37-07:00
documentation
PRO PIPE
is_lateral_inspection
false
