Wastewater/Activity/PacpInspection/1.0Aug 27, 2019, 09:35 AM
14 0307_14 0306A_08272019_024328.mp4
- Date
- 08/27/2019
- W/O
- 782143
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P18374
- Time
- 2:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6883
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782143_TV14028_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 14 0306A
- Downstream MH
- 14 0307
- Dir. of Survey
- Upstream
- Length Surveyed
- 144.5 ft.
- Total Length
- 144.5 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 140
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 56
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 196
Observation photos (5)

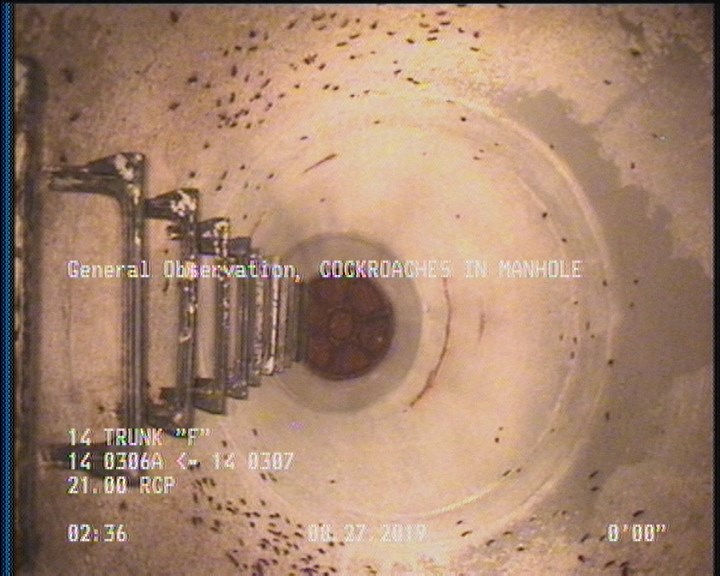

0 ft. - General Observation - COCKROACHES IN MANHOLE

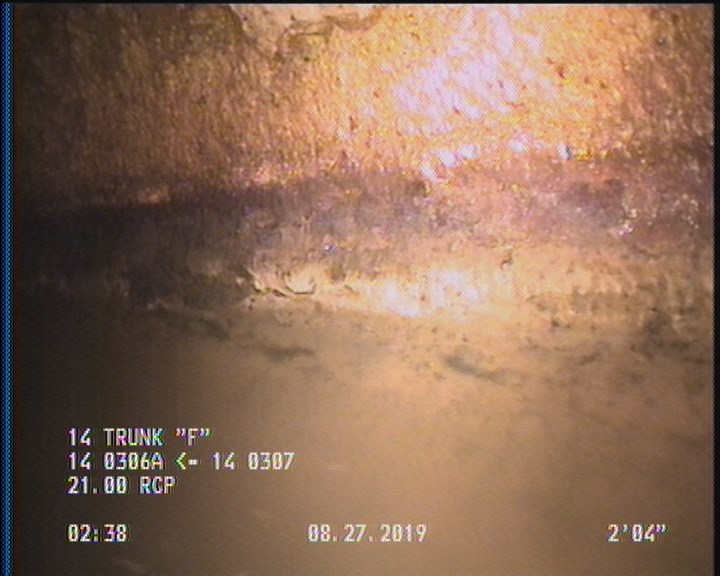

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

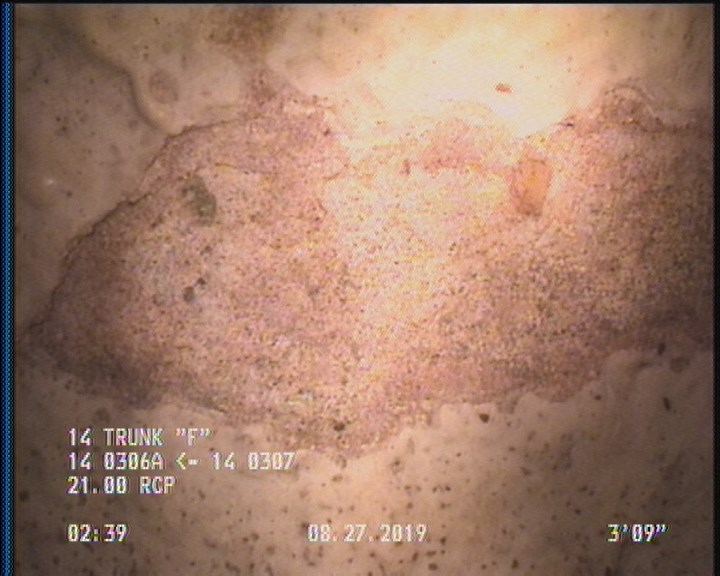

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

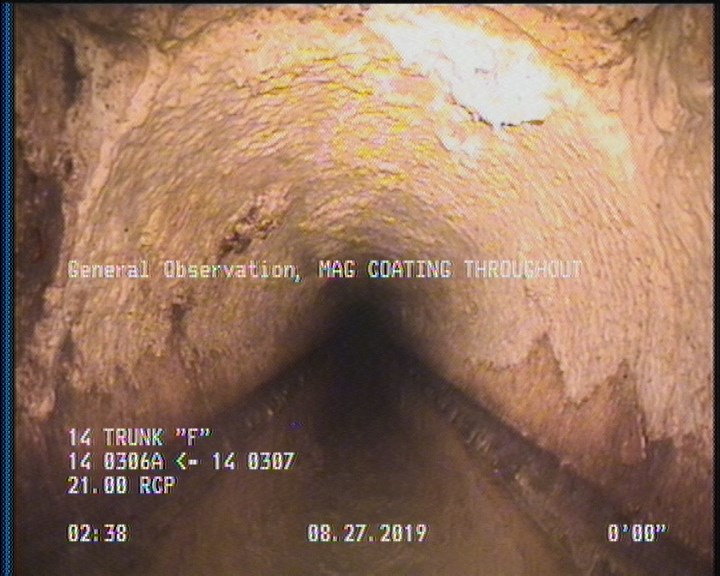

2 ft. - General Observation - MAG COATING THROUGHOUT

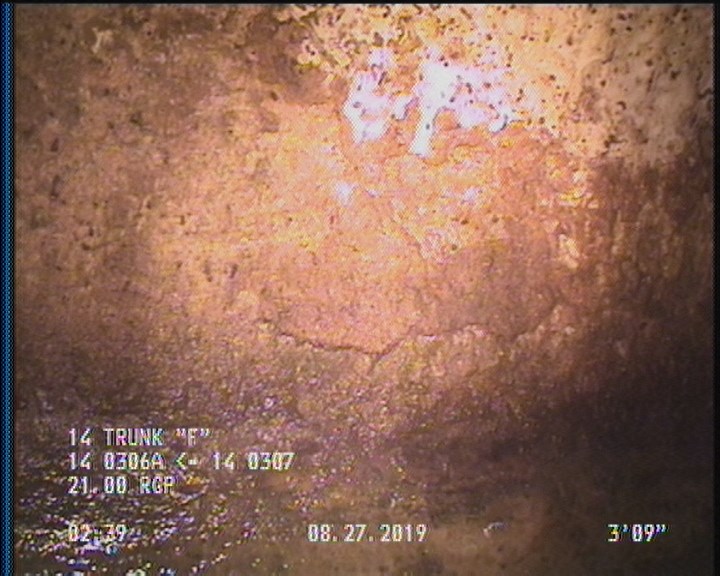

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 2 | MGO | MAG COATING THROUGHOUT |
| 2 | SSS | — |
| 142.4 | DAGS | — |
| 0 | MWM | — |
| 142.4 | SSS | — |
| 142.4 | SAP | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 14 0306A |
| 144.5 | AMH | 14 0307 |
Properties (6)
- additional_info
- SC378468
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-27T02:35:40-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
