Wastewater/Activity/PacpInspection/1.0Sep 9, 2019, 10:23 AM
14 0290_14 0289_09092019_035239.mp4
- Date
- 09/09/2019
- W/O
- 782143
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P18352
- Time
- 3:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6887
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782143_TV14028_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 0290
- Downstream MH
- 14 0289
- Dir. of Survey
- Downstream
- Length Surveyed
- 416.9 ft.
- Total Length
- 416.9 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 410
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 414
Observation photos (4)

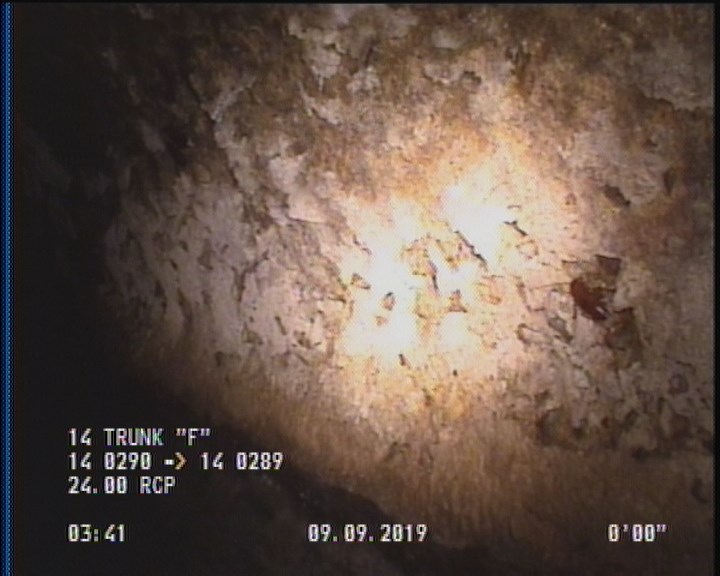

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

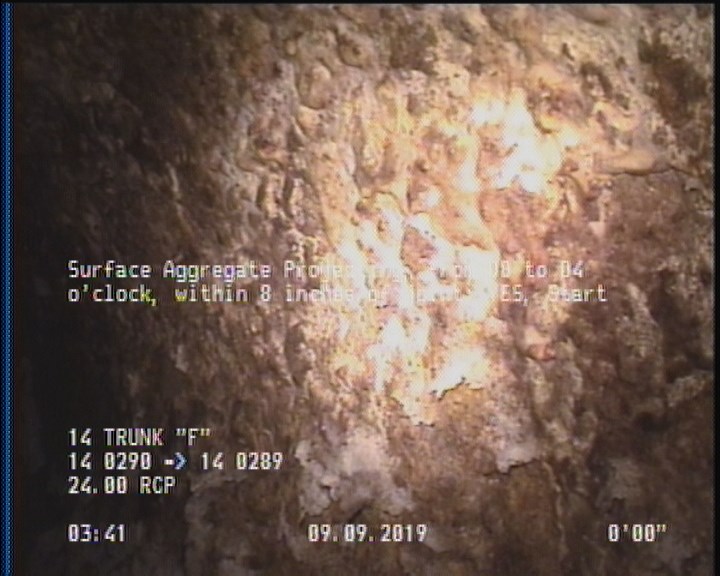

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

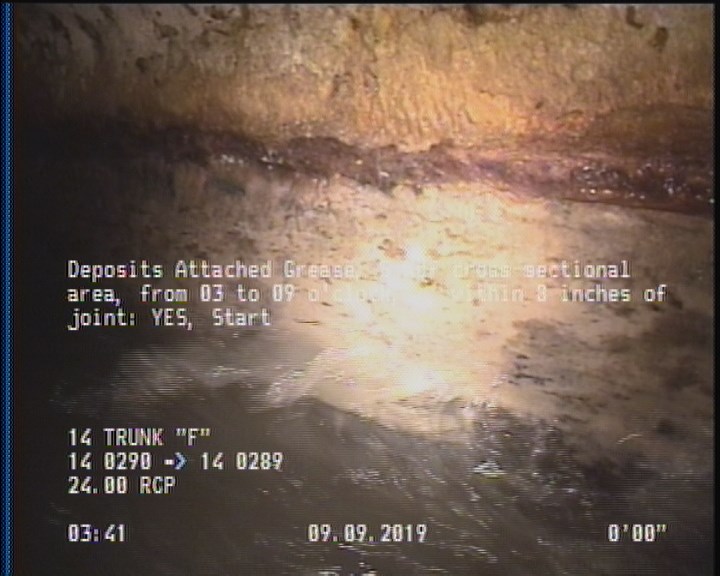

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

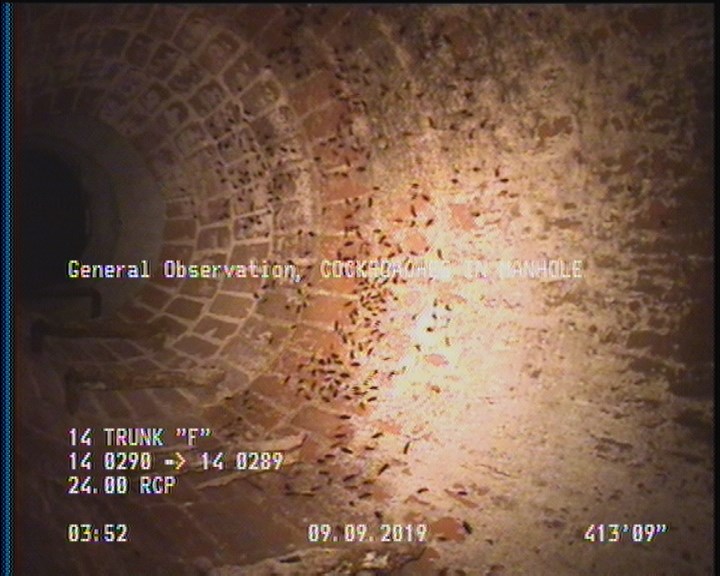

413.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 413.8 | DAGS | — |
| 413.8 | MGO | COCKROACHES IN MANHOLE |
| 413.8 | SAP | — |
| 2 | SSS | — |
| 2 | SAP | — |
| 413.8 | SSS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 14 0290 |
| 0 | MWL | — |
| 416.9 | AMH | 14 0289 |
Properties (6)
- additional_info
- SC378603
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-09T03:23:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
