Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2019, 05:45 PM

  • 16 0571_16 0570_1152019_103719.mp4

Date
11/05/2019
W/O
0798086
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00659
PipeID
P13622
Time
9:45 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8120R
Sewer Name
16 LAMANDA PARK TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Maintenance Related
Project
20191105MI_LAMANDA_PARK_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0571
Downstream MH
16 0570
Dir. of Survey
Downstream
Length Surveyed
254.3 ft.
Total Length
254.3 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 16 0571 to 16 0570
MH: 16 0571MH: 16 0570downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:35 AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"24.2 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start61.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"70.6 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - MAG COAT, 10%92.4 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"109.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"130.3 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - ROOT MATTING181.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 4"217.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"253.9 ft. MGP - General Photograph - DROP MH254.3 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish254.3 ft. AMH - Downstream Manhole, Survey Ends - 11:00 AM254.3 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254.3 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish - ROOT MATTING254.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

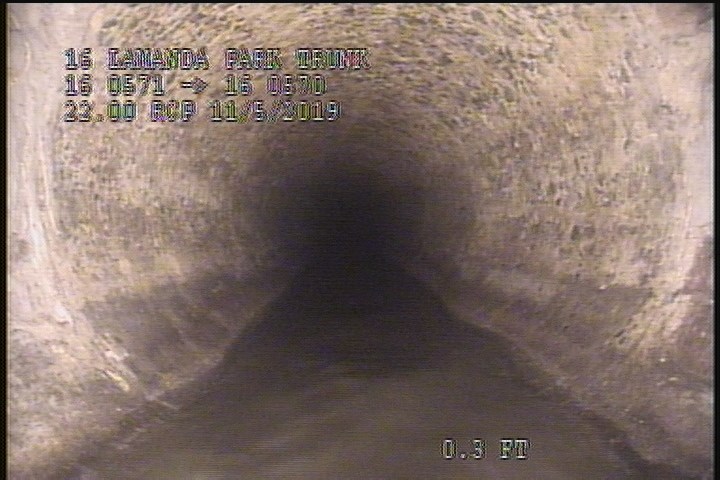

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    0.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    24.2 ft. - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"

    92.4 ft. - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"

  • General Photograph - DROP MH

    253.9 ft. - General Photograph - DROP MH

  • Downstream Manhole, Survey Ends - 11:00 AM

    254.3 ft. - Downstream Manhole, Survey Ends - 11:00 AM

All inspections of P13622Work order 0798086

Observations (19)

DistanceCodeObservation
0.3SAP—
254.3DAZ—
8.3TFC—
61.6TFC—
253.9MGPDROP MH
109.4TFC—
0AMH10:35 AM
181.7TFC—
254.3AMH11:00 AM
24.2SRP—
130.3DAZROOT MATTING
254.3SRP—
254.3DAZROOT MATTING
254.3SAP—
217.4TFC—
0MWL—
0MWM—
92.4TFA—
70.6DAZMAG COAT, 10%

Properties (6)

additional_info
ROOT EVALUATION ONLY
custom_field_two
4
customer
LACSD
datetime
2019-11-05T09:45:48-08:00
documentation
IGNACIO, FRANKLIN, BRAR, RUVALCABA
is_lateral_inspection
false
