Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2019, 07:08 PM

  • 02 1439_02 1438_1142019_112146.mp4

Date
11/04/2019
W/O
798059
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00307
PipeID
P04678
Time
11:08 AM
Certificate
U-0618-07030022
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8119
Sewer Name
02 TRACT #5445 TRUNK
City
EAST LOS ANGELES
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
20191104SB_TRACT_5445_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 1438
Downstream MH
02 1439
Dir. of Survey
Upstream
Length Surveyed
195.9 ft.
Total Length
195.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 1438 to 02 1439
MH: 02 1438MH: 02 1439upstream0 ft. AMH - Upstream Manhole, Survey Ends - 11:47 AM0.1 ft. MGP - General Photograph - SHELF IN US MH0.1 ft. MGO - General Observation - ROACHES IN US MH1.6 ft. MGO - General Observation - VOID IN SHELF US MH 14393.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - MAG COAT46.7 ft. MGP - General Photograph72.1 ft. MGP - General Photograph - MAG COAT124.1 ft. MGP - General Photograph132.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"187.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG COAT195.9 ft. AMH - Downstream Manhole, Survey Begins - 11:12 AM195.9 ft. MWM - Water Mark, 35 %of cross sectional area195.9 ft. MWL - Water Level, 30 %of cross sectional area

Observation photos (8)

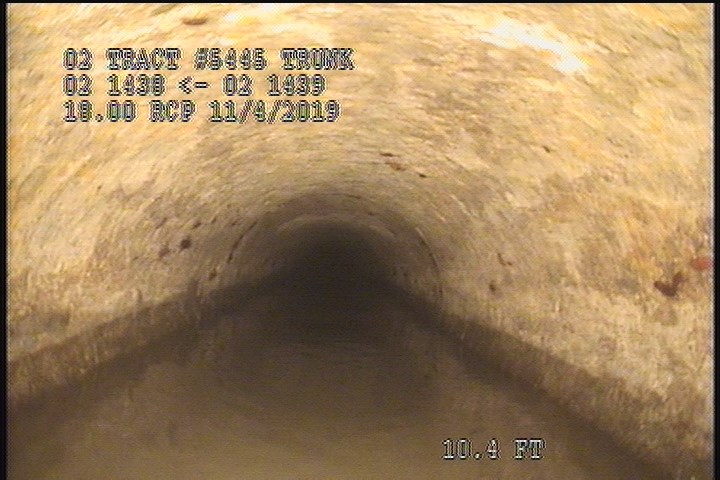

  • Downstream Manhole, Survey Begins - 11:12 AM

    0 ft. - Downstream Manhole, Survey Begins - 11:12 AM

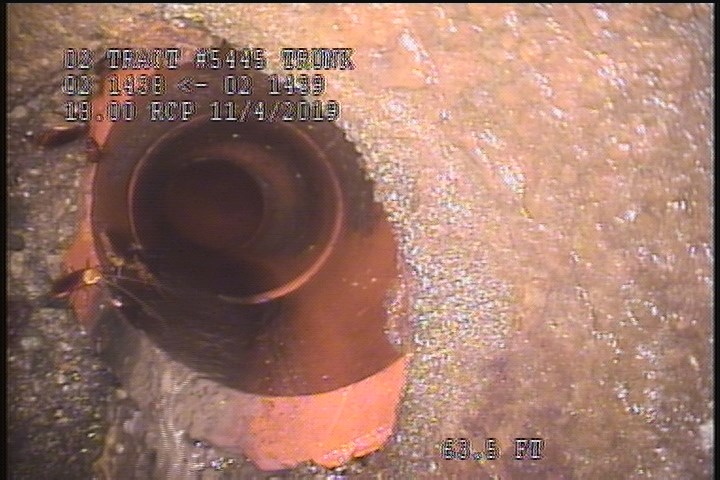

  • Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    63.5 ft. - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

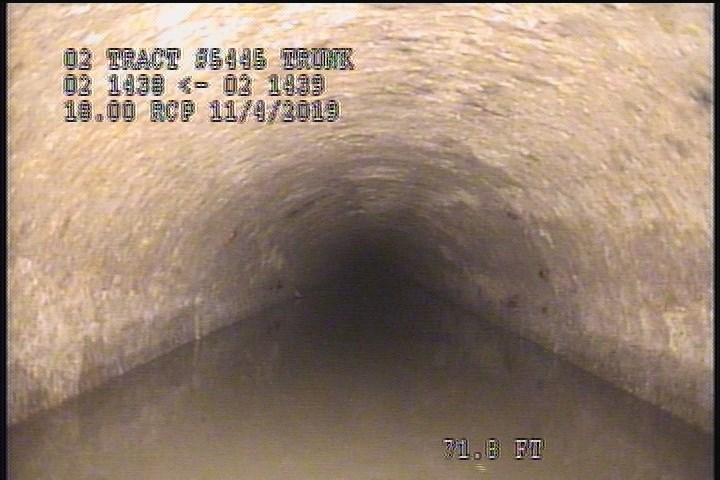

  • General Photograph

    71.8 ft. - General Photograph

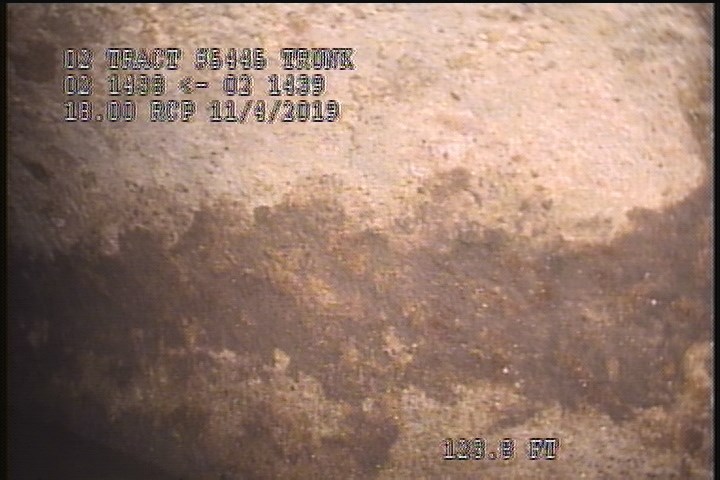

  • General Photograph - MAG COAT

    123.8 ft. - General Photograph - MAG COAT

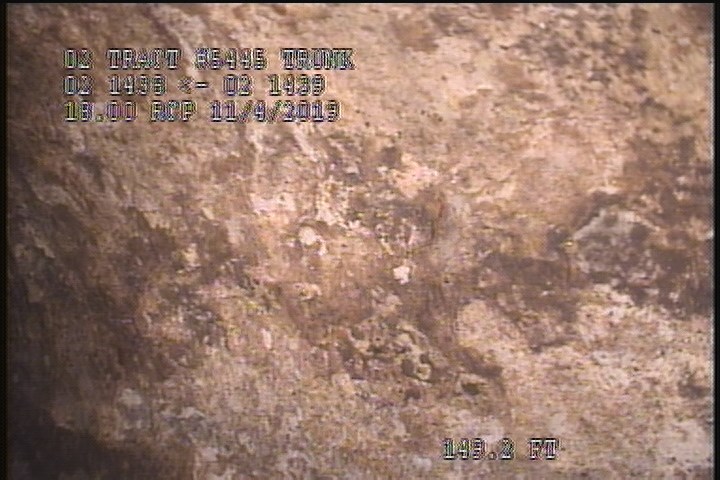

  • General Photograph

    149.2 ft. - General Photograph

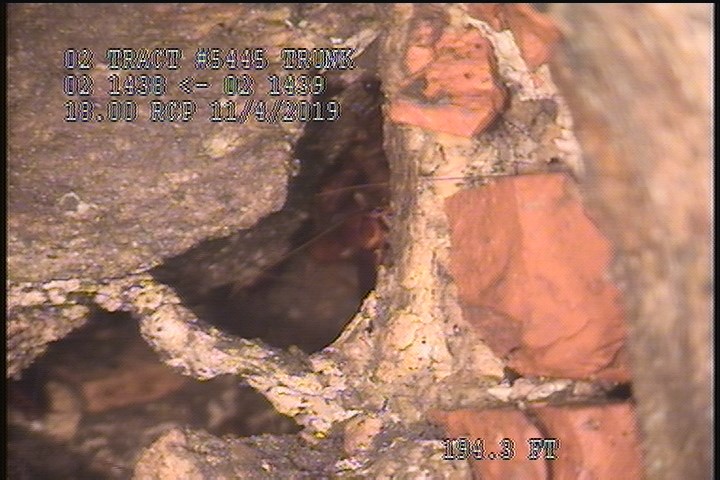

  • General Observation - VOID IN SHELF US MH 1439

    194.3 ft. - General Observation - VOID IN SHELF US MH 1439

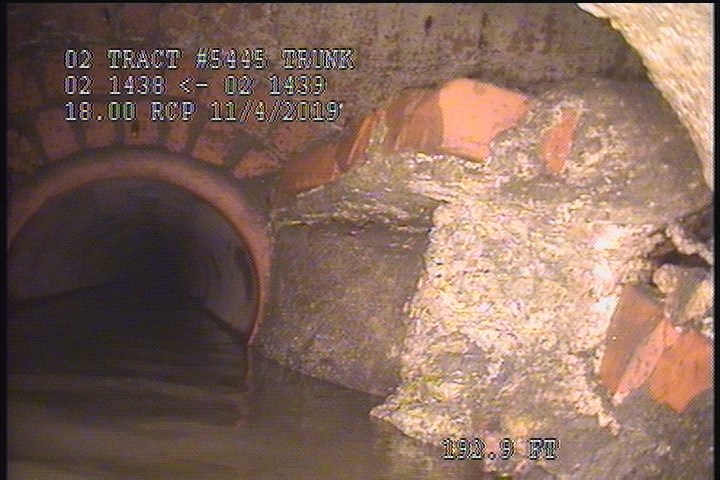

  • General Photograph - SHELF IN US MH

    195.8 ft. - General Photograph - SHELF IN US MH

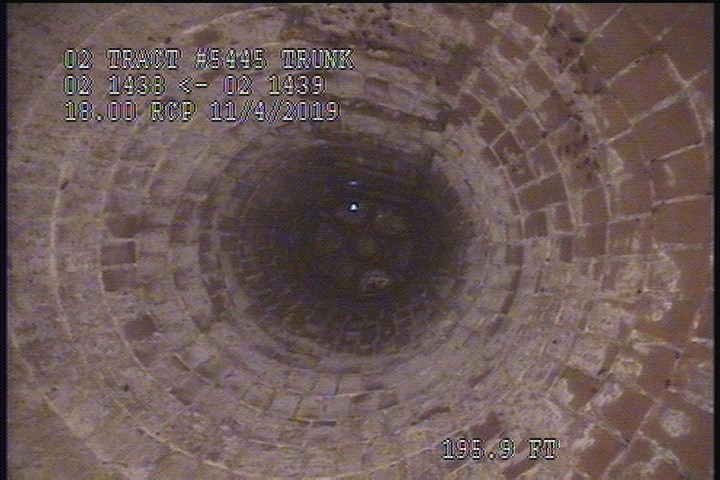

  • General Observation - ROACHES IN US MH

    195.8 ft. - General Observation - ROACHES IN US MH

All inspections of P04678Work order 798059

Observations (13)

DistanceCodeObservation
195.9AMH11:47 AM
195.8MGPSHELF IN US MH
195.8MGOROACHES IN US MH
149.2MGP—
192.4SZMAG COAT
63.5TFA—
123.8MGPMAG COAT
0AMH11:12 AM
0MWM—
194.3MGOVOID IN SHELF US MH 1439
71.8MGP—
8SZ80% MAG COAT
0MWL—

Properties (6)

additional_info
U-0618-0703002249
custom_field_two
4
customer
LACSD
datetime
2019-11-04T11:08:10-08:00
documentation
BRAR, FRANKLIN, IGNATIO, RUVALCABA
is_lateral_inspection
false
