Wastewater/Activity/PacpInspection/1.0Nov 2, 2019, 09:10 AM
03 0292_03 0618_1122019_021508.mp4
- Date
- 11/02/2019
- W/O
- 0792616
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00359
- PipeID
- P05145
- Time
- 2:10 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1285
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20191102MDM_ANAHEIM_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 03 0292
- Downstream MH
- 03 0618
- Dir. of Survey
- Downstream
- Length Surveyed
- 539.6 ft.
- Total Length
- 539.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

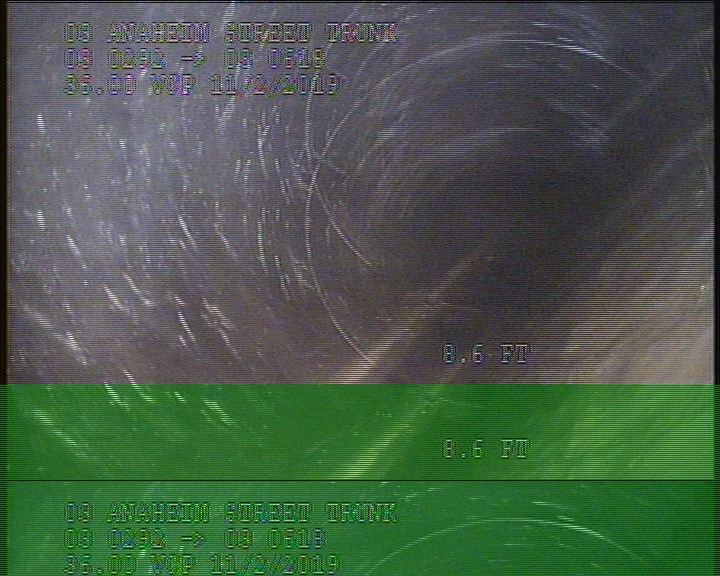

8 ft. - General Observation - 26" VCP-FR POLY LINE

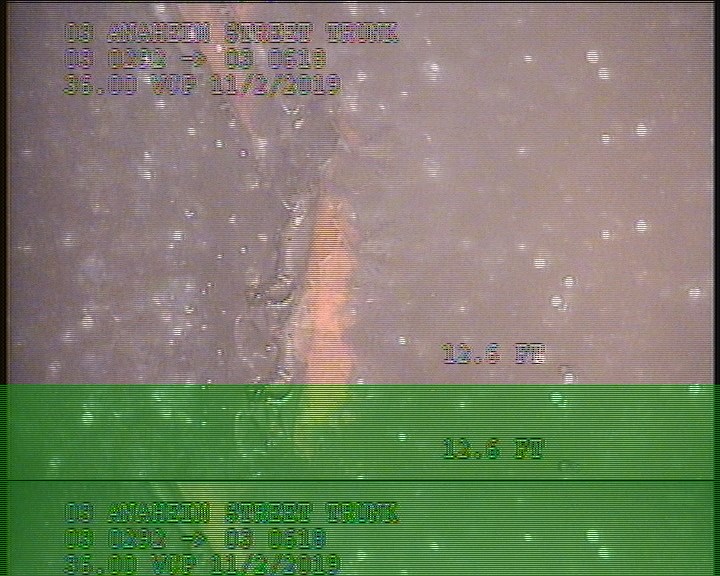

12.6 ft. - General Observation - THIN FLIM PEELING FROM LINER

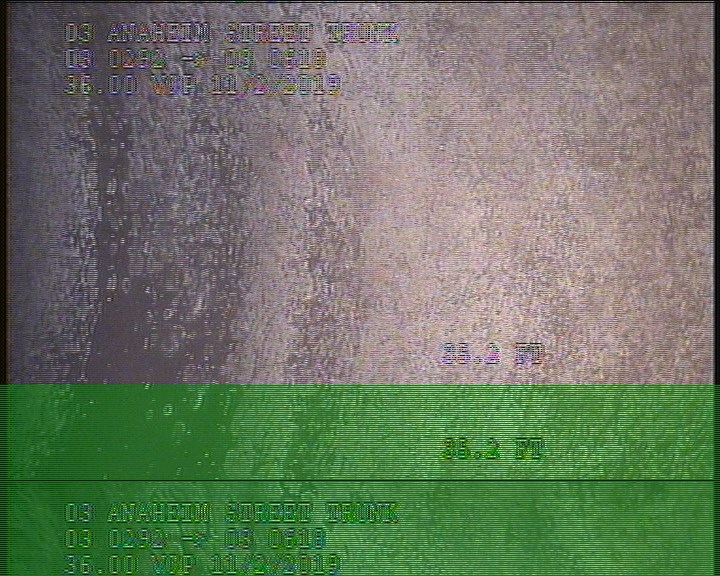

35.2 ft. - General Observation - WHITE BUILD-UP ON PIPE

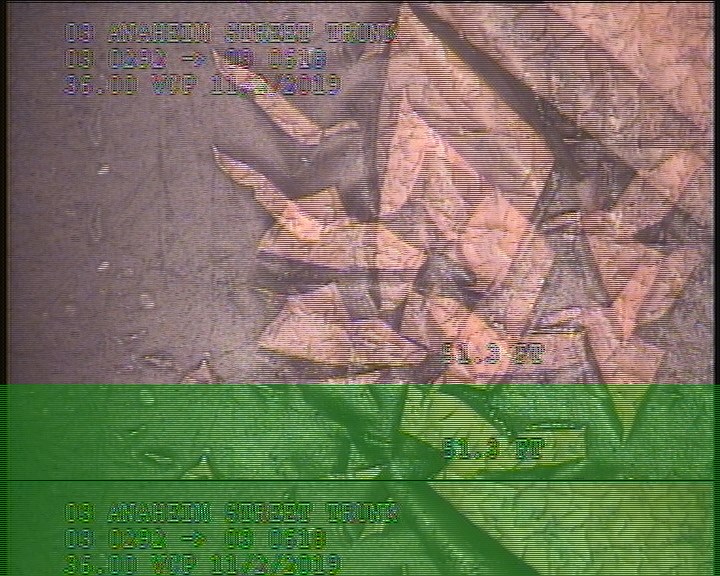

51.3 ft. - General Observation - THIN FLIM PEELING FROM LINER

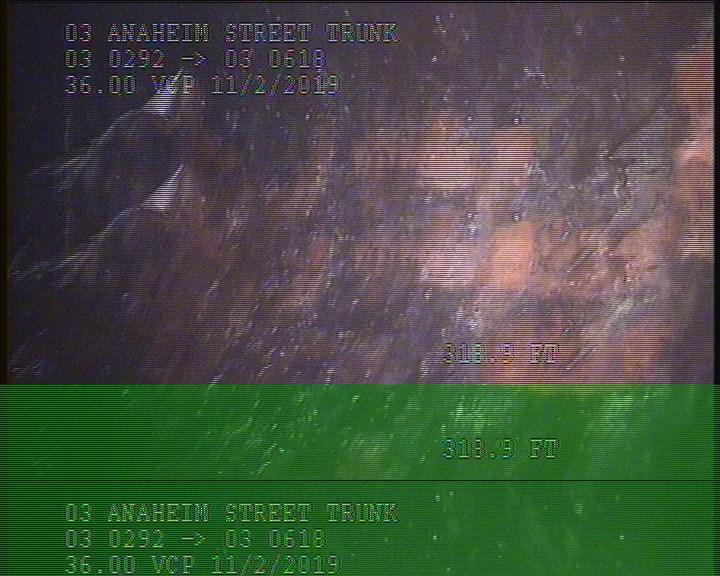

318.9 ft. - General Observation - PEELING THIN OUTER COATING OR BUILD - UP
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 8 | MGO | 26" VCP-FR POLY LINE |
| 0 | AMH | 2:10AM |
| 51.3 | MGO | THIN FLIM PEELING FROM LINER |
| 0 | MGO | MH CONN 3:00 ACTIVE |
| 12.6 | MGO | THIN FLIM PEELING FROM LINER |
| 0 | MWM | — |
| 35.2 | MGO | WHITE BUILD-UP ON PIPE |
| 318.9 | MGO | PEELING THIN OUTER COATING OR BUILD - UP |
| 539.6 | AMH | 2:45AM |
| 0 | MWL | — |
Properties (6)
- custom_field_three
- LINER GOOD COND
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-11-02T02:10:00-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,CASTILLO
- is_lateral_inspection
- false
