Wastewater/Activity/PacpInspection/1.0Oct 29, 2019, 05:22 PM
15 0849_15 0848_10292019_102446.mp4
- Date
- 10/29/2019
- W/O
- 0793149
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00594
- PipeID
- P12627
- Time
- 10:22 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8114
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
- City
- SIERRA MADRE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 01
- Purpose
- Maintenance Related
- Project
- 20191029SHO_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_3_2A
- Material
- NRCP
- Shape
- Circular
- Height
- 8.399999618530273 in.
- Upstream MH
- 15 0849
- Downstream MH
- 15 0848
- Dir. of Survey
- Downstream
- Length Surveyed
- 206 ft.
- Total Length
- 206 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3200
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

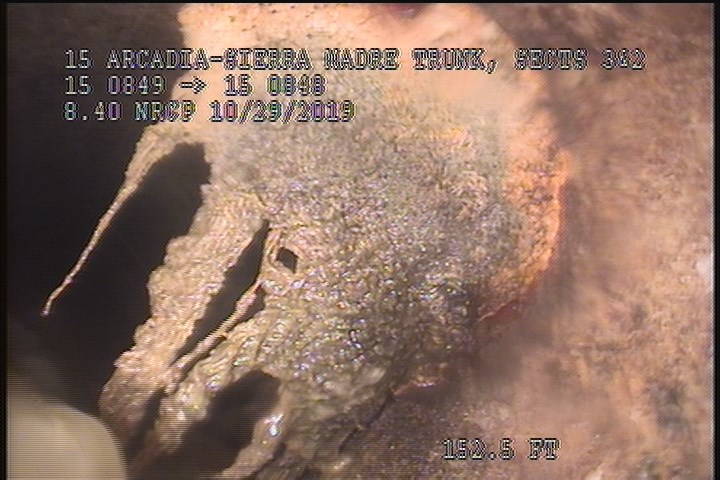

152.5 ft. - Roots Medium Connection, from 12 to 03 o'clock, 15 %, within 8 inches of joint: NO

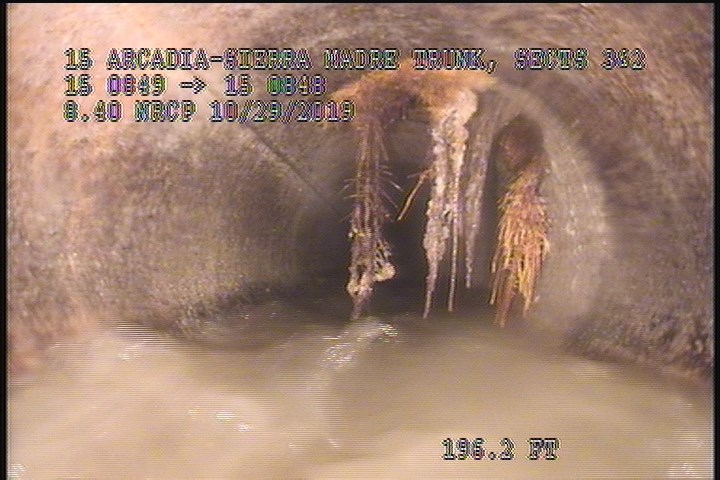

197.8 ft. - Roots Medium Connection, from 11 to 02 o'clock, 15 %, within 8 inches of joint: NO

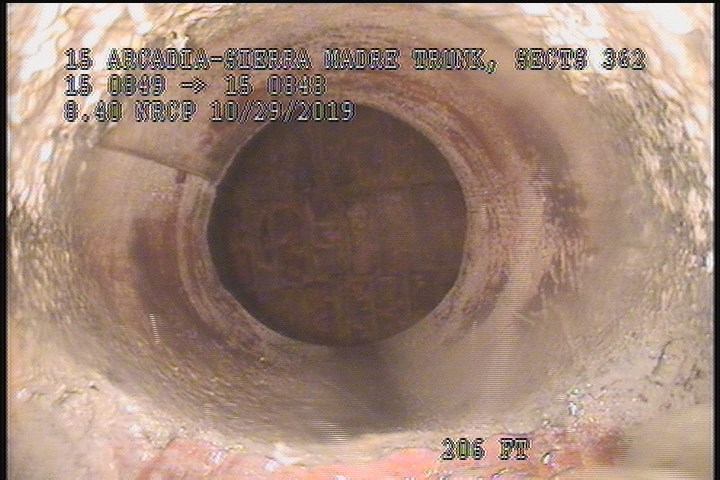

206 ft. - Drop Connection, Survey Ends - MH 0848
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | MH 0849 |
| 0 | MWM | — |
| 152.5 | RMC | — |
| 0 | MWL | — |
| 197.8 | RMC | — |
| 206 | AOC | MH 0848 |
Properties (7)
- additional_info
- POST ROOT CLEANING EVALUATION
- custom_field_three
- POST ROOT EVAL.
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-10-29T10:22:34-07:00
- documentation
- OBREGON, YOUNG, BRAR, RUVALCABA
- is_lateral_inspection
- false
