Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 29, 2019, 04:16 PM

  • 15 0851_15 0850_10292019_093043.mp4

Date
10/29/2019
W/O
0793149
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00594
PipeID
P12629
Time
9:16 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8114
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Maintenance Related
Project
20191029SHO_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_3_2A
Material
NRCP
Shape
Circular
Height
8.399999618530273 in.
Upstream MH
15 0851
Downstream MH
15 0850
Dir. of Survey
Downstream
Length Surveyed
349.4 ft.
Total Length
349.4 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
3
O&M Quick
3500
O&M Rating
15
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 15 0851 to 15 0850
MH: 15 0851MH: 15 0850downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 08510 ft. MWM - Water Mark, 25 %of cross sectional area36.6 ft. RMC - Roots Medium Connection, from 11 to 02 o'clock, 15 %, within 8 inches of joint: NO83.1 ft. MWLS - Water Level, Sag in pipe, 75 %of cross sectional area83.1 ft. RML - Roots Medium Lateral, from 01 to 05 o'clock, 40 %, within 8 inches of joint: NO118.7 ft. RMJ - Roots Medium Joint, from 07 to 09 o'clock, 10 %, within 8 inches of joint: YESR134.4 ft. RMC - Roots Medium Connection, from 08 to 11 o'clock, 10 %, within 8 inches of joint: NO240 ft. RMC - Roots Medium Connection, from 08 to 12 o'clock, 35 %, within 8 inches of joint: NO349.4 ft. AMH - Downstream Manhole, Survey Ends - MH 0850

Observation photos (3)

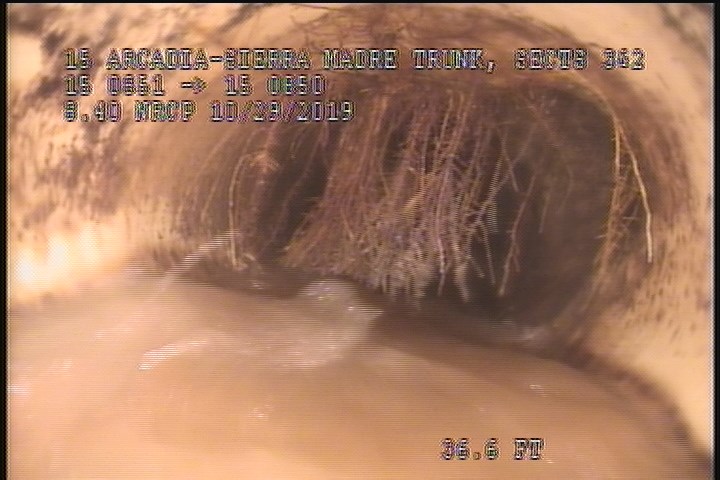

  • Roots Medium Connection, from 11 to 02 o'clock, 15 %, within 8 inches of joint: NO

    36.6 ft. - Roots Medium Connection, from 11 to 02 o'clock, 15 %, within 8 inches of joint: NO

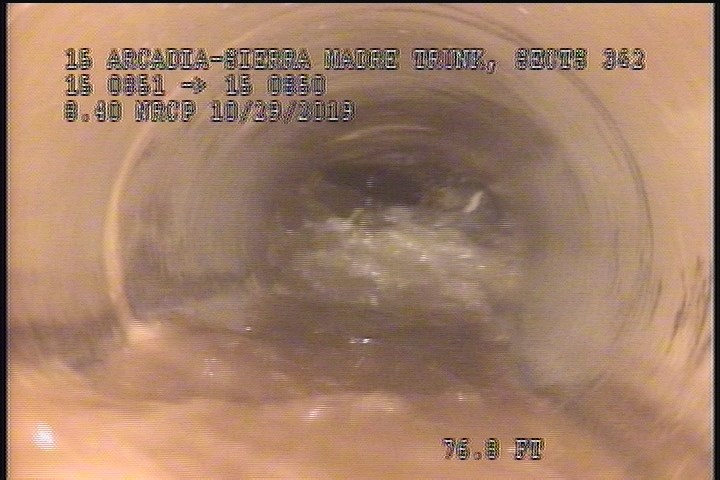

  • Roots Medium Lateral, from 01 to 05 o'clock, 40 %, within 8 inches of joint: NO

    83.1 ft. - Roots Medium Lateral, from 01 to 05 o'clock, 40 %, within 8 inches of joint: NO

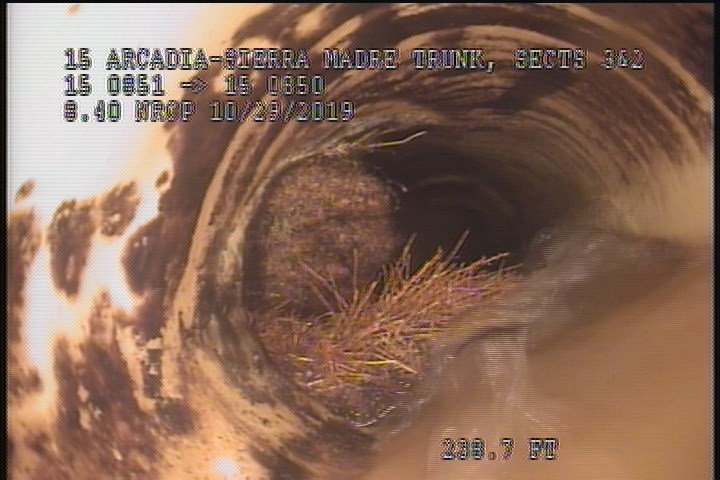

  • Roots Medium Connection, from 08 to 12 o'clock, 35 %, within 8 inches of joint: NO

    240 ft. - Roots Medium Connection, from 08 to 12 o'clock, 35 %, within 8 inches of joint: NO

All inspections of P12629Work order 0793149

Observations (10)

DistanceCodeObservation
349.4AMHMH 0850
0MWL—
0AMHMH 0851
0MWM—
83.1MWLS—
240RMC—
134.4RMC—
36.6RMC—
83.1RML—
118.7RMJ—

Properties (8)

additional_info
POST ROOT CLEANING EVALUATION
custom_field_three
POST ROOT EVAL.
custom_field_two
5
customer
LACSD
datetime
2019-10-29T09:16:46-07:00
documentation
OBREGON, YOUNG, BRAR, RUVALCABA
is_lateral_inspection
false
lining
PVCP-Folded/Reformed
