Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 28, 2019, 08:21 AM

  • 15 0061_15 1044_10282019_013759.mp4

Date
10/28/2019
W/O
0799619
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00622
PipeID
P21479
Time
1:21 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1288
Sewer Name
15 PUENTE TRUNK
City
INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Maintenance Related
Project
20191028MDM_PUENTE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
15 1044
Downstream MH
15 0061
Dir. of Survey
Upstream
Length Surveyed
87.5 ft.
Total Length
87.5 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 15 1044 to 15 0061
MH: 15 1044MH: 15 0061upstream0 ft. MSA - Survey Abandoned - 30% OFFSET BROKEN JOINT0.5 ft. BVV - Broken Void Visible, from 10 to 02 o'clock, within 8 inches of joint: YES1.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT3.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT4.6 ft. MWL - Water Level, 80 %of cross sectional area6.4 ft. MGO - General Observation - ZOOM TO OFFSET BROKEN JOINT9.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT87.5 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM87.5 ft. MWM - Water Mark, 40 %of cross sectional area87.5 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (2)

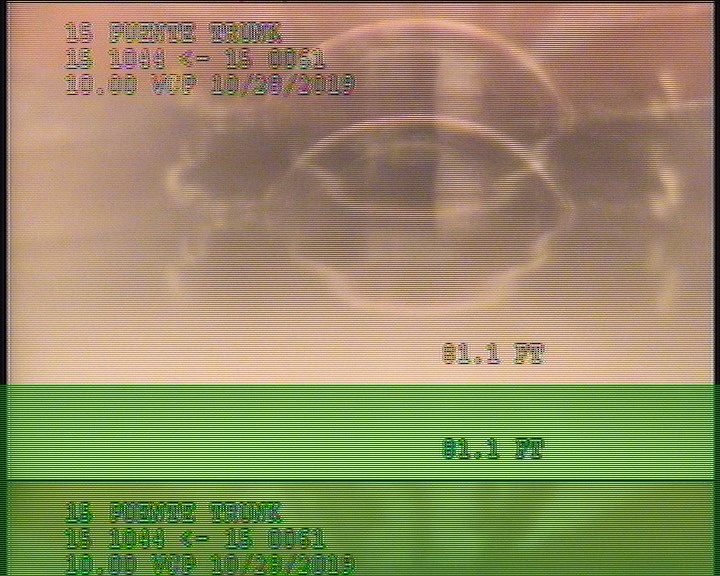

  • General Observation - ZOOM TO OFFSET BROKEN JOINT

    81.1 ft. - General Observation - ZOOM TO OFFSET BROKEN JOINT

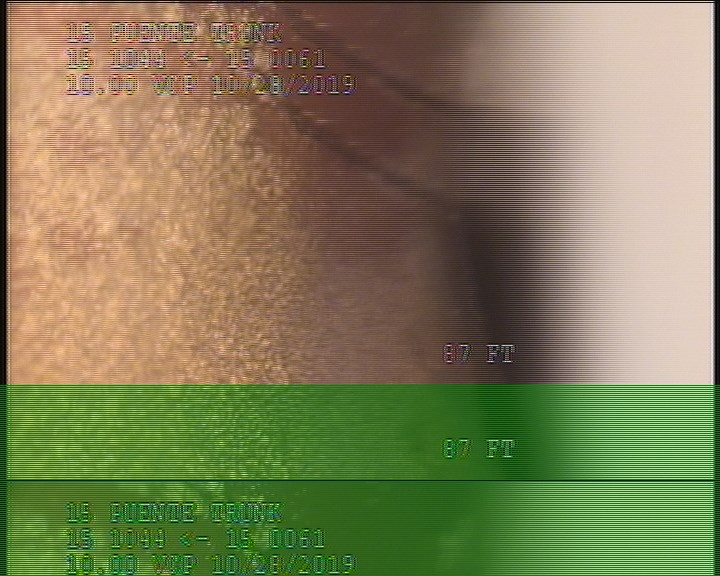

  • Broken Void Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

    87 ft. - Broken Void Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P21479Work order 0799619

Observations (10)

DistanceCodeObservation
81.1MGOZOOM TO OFFSET BROKEN JOINT
87.5MSA30% OFFSET BROKEN JOINT
82.9MWL—
0AMH1:25AM
77.9FCSLIGHT
83.7FCSLIGHT
85.9FLSLIGHT
87BVV—
0MWM—
0MWL—

Properties (4)

customer
LACSD
datetime
2019-10-28T01:21:36-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
