Wastewater/Activity/PacpInspection/1.0Oct 11, 2019, 06:18 AM
14 1124A_14 1124_10102019_233330.mp4
- Date
- 10/10/2019
- W/O
- 787589
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26077
- Time
- 11:18 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7032
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_787589_TV14056_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 1124A
- Downstream MH
- 14 1124
- Dir. of Survey
- Downstream
- Length Surveyed
- 448.4 ft.
- Total Length
- 448.4 ft.
- Structural Index
- 2
- Structural Quick
- 2Q00
- Structural Rating
- 178
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 178
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 356
Observation photos (1)

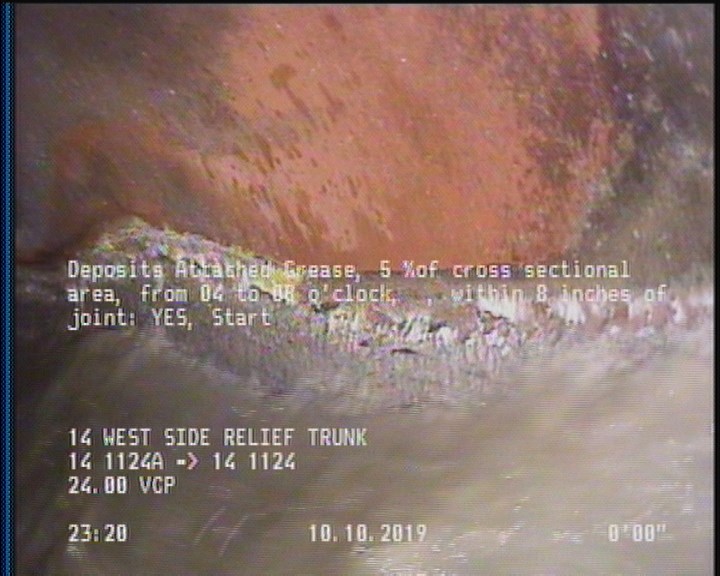

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 2 | SSS | — |
| 0 | MWL | — |
| 448.4 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 447 | SSS | — |
| 448.4 | AMH | 14 1124 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 14 1124A |
| 446.2 | DAGS | — |
Properties (7)
- additional_info
- SC378701
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-10-10T23:18:43-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40175
