Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 10, 2019, 07:43 AM

  • 14 1118_14 1117_10102019_005719.mp4

Date
10/10/2019
W/O
787589
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01179
PipeID
P26070
Time
12:43 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7031
Sewer Name
14 WEST SIDE RELIEF TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_787589_TV14056_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
14 1118
Downstream MH
14 1117
Dir. of Survey
Downstream
Length Surveyed
252.6 ft.
Total Length
252.6 ft.
Structural Index
2
Structural Quick
2I00
Structural Rating
100
O&M Index
2
O&M Quick
2I00
O&M Rating
100
Overall Index
2
Overall Quick
—
Overall Rating
200
Pipe schematic from manhole 14 1118 to 14 1117
MH: 14 1118MH: 14 1117downstream0 ft. AMH - Upstream Manhole, Survey Begins - 140 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start19.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN103.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN220.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"250 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish251.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish252.6 ft. AMH - Downstream Manhole, Survey Ends - 14 1117252.6 ft. MGO - General Observation - CONN @ MH 3 O'CLOCK/ACTIVE

Observation photos (1)

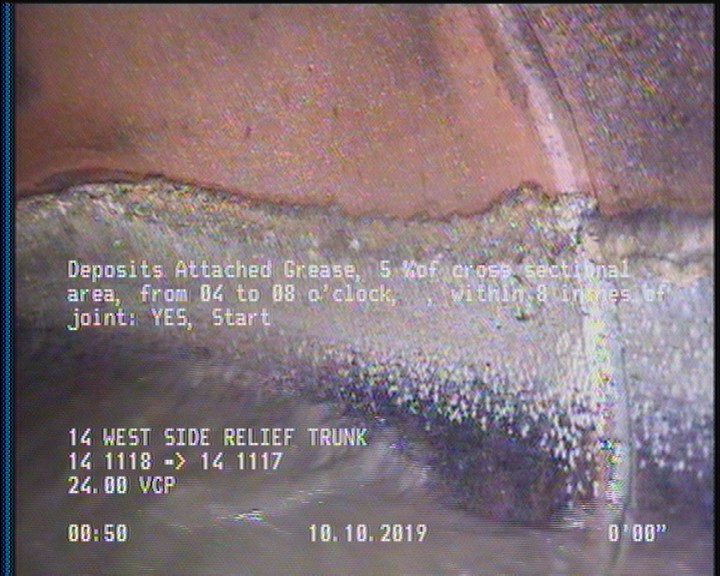

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P26070Work order 787589

Observations (12)

DistanceCodeObservation
0AMH14
19.9TFOPEN
250SSS—
251.6DAGS—
103.8TFOPEN
2DAGS—
0MWM—
2SSS—
252.6AMH14 1117
252.6MGOCONN @ MH 3 O'CLOCK/ACTIVE
0MWL—
220.2TFA—

Properties (7)

additional_info
SC378650
custom_field_two
4
customer
LACSD
datetime
2019-10-10T00:43:33-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40175
