Wastewater/Activity/PacpInspection/1.0Oct 10, 2019, 08:00 AM
14 1117_14 1116_10102019_010907.mp4
- Date
- 10/10/2019
- W/O
- 787589
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26069
- Time
- 1:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7031
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_787589_TV14056_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 1117
- Downstream MH
- 14 1116
- Dir. of Survey
- Downstream
- Length Surveyed
- 255.9 ft.
- Total Length
- 255.9 ft.
- Structural Index
- 2
- Structural Quick
- 2I00
- Structural Rating
- 100
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 100
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 200
Observation photos (1)

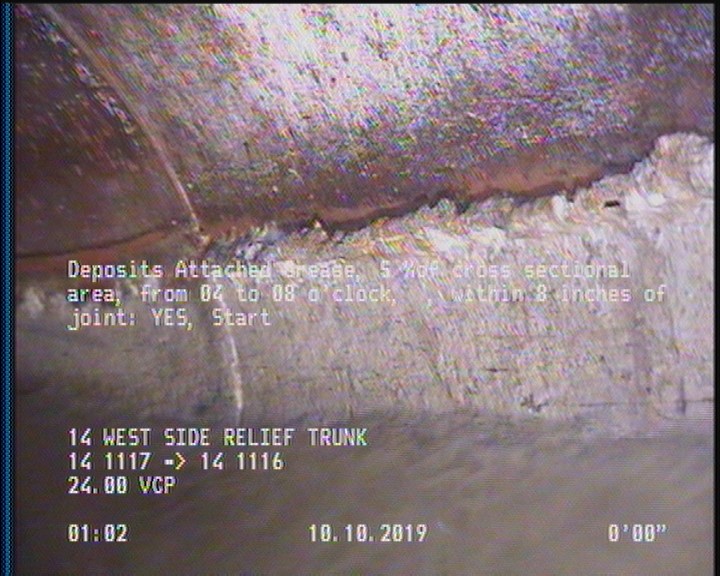

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 255.9 | MGO | CONN 9 O'CLOCK @ MH/ACTIVE |
| 65.1 | TF | OPEN |
| 0 | AMH | 14 1117 |
| 10.2 | TF | OPEN |
| 255.9 | AMH | 14 1116 |
| 254 | SSS | — |
| 255.9 | MGO | CONN 3 O'CLOCK @ MH/OPEN |
| 0 | MWL | — |
| 2 | SSS | — |
| 254.3 | DAGS | — |
| 0 | MGO | CONN @ MH 3 O'CLOCK/ACTIVE |
Properties (7)
- additional_info
- SC378650
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-10-10T01:00:40-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40175
