Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 4, 2019, 06:15 AM

  • 14 1104_14 1103_10032019_233001.mp4

Date
10/03/2019
W/O
787589
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01179
PipeID
P26056
Time
11:15 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7028
Sewer Name
14 WEST SIDE RELIEF TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_787589_TV14056_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
14 1104
Downstream MH
14 1103
Dir. of Survey
Downstream
Length Surveyed
325.1 ft.
Total Length
325.1 ft.
Structural Index
2
Structural Quick
2L00
Structural Rating
128
O&M Index
2
O&M Quick
2L00
O&M Rating
128
Overall Index
2
Overall Quick
—
Overall Rating
256
Pipe schematic from manhole 14 1104 to 14 1103
MH: 14 1104MH: 14 1103downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 11042 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.6 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN49.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"96.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"145.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"150.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"196.8 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"200.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"243.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4", 4" - OPEN248.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"323.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish324 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish325.1 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE325.1 ft. AMH - Downstream Manhole, Survey Ends - 14 1103

Observation photos (1)

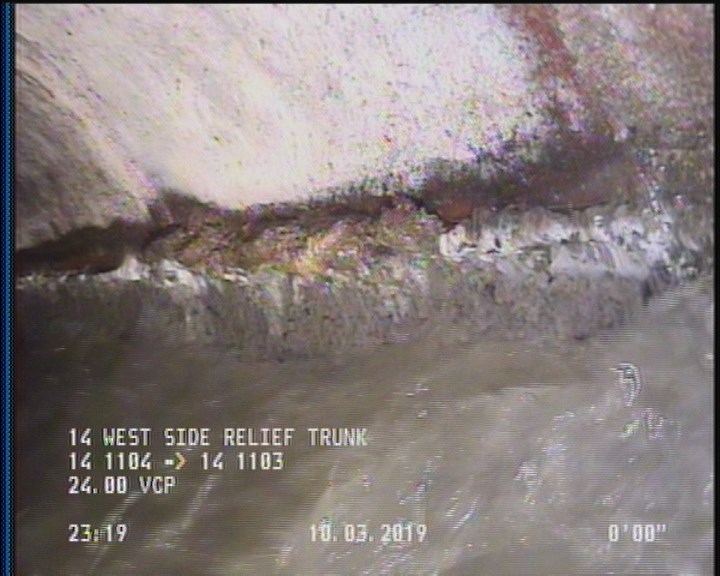

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P26056Work order 787589

Observations (18)

DistanceCodeObservation
325.1MGOCONN @ MH 9 O'CLOCK/ACTIVE
145.9TFA—
200.9TFA—
2DAGS—
0MWL—
196.8TFA—
323.3DAGS—
96.1TFA—
150.1TFA—
325.1AMH14 1103
2SSS—
243.2TFOPEN
0MWM—
324SSS—
0AMH14 1104
49.2TFA—
45.6TFOPEN
248.5TFA—

Properties (7)

additional_info
SC378645
custom_field_two
4
customer
LACSD
datetime
2019-10-03T23:15:37-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40175
