Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 4, 2019, 07:05 AM

  • 14 1100_14 1099_10042019_001428.mp4

Date
10/04/2019
W/O
787589
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01179
PipeID
P26052
Time
12:05 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7028
Sewer Name
14 WEST SIDE RELIEF TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_787589_TV14056_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
14 1100
Downstream MH
14 1099
Dir. of Survey
Downstream
Length Surveyed
250.1 ft.
Total Length
250.1 ft.
Structural Index
2
Structural Quick
2I00
Structural Rating
98
O&M Index
2
O&M Quick
2I00
O&M Rating
98
Overall Index
2
Overall Quick
—
Overall Rating
196
Pipe schematic from manhole 14 1100 to 14 1099
MH: 14 1100MH: 14 1099downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 11000 ft. MGO - General Observation - CONN @ MH 9 O'CLOCK/ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start53.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN101.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN149.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN153.3 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"234.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN237 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4", 6" - OPEN247.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish249 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish250.1 ft. AMH - Downstream Manhole, Survey Ends - 14 1099

Observation photos (1)

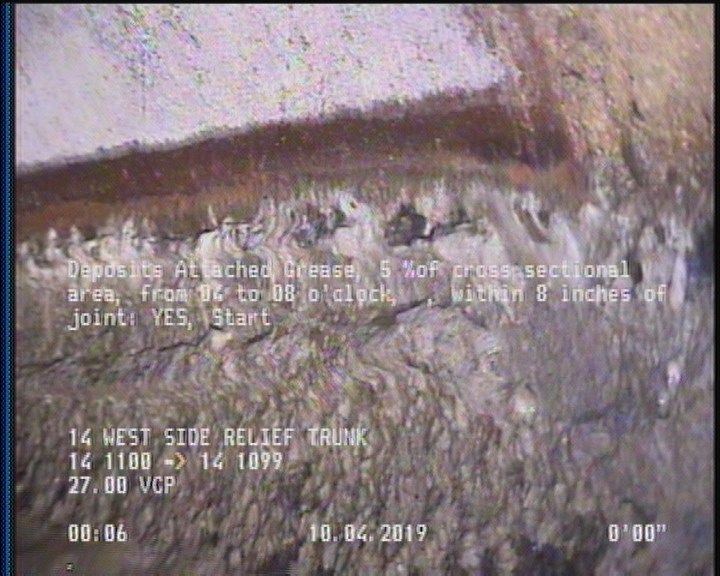

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P26052Work order 787589

Observations (15)

DistanceCodeObservation
249SSS—
250.1AMH14 1099
247.9DAGS—
237TFOPEN
153.3TFA—
2SSS—
149.1TFOPEN
0AMH14 1100
0MGOCONN @ MH 9 O'CLOCK/ACTIVE
53.4TFOPEN
2DAGS—
101.9TFOPEN
234.2TFOPEN
0MWM—
0MWL—

Properties (7)

additional_info
SC378645
custom_field_two
4
customer
LACSD
datetime
2019-10-04T00:05:12-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40175
