Wastewater/Activity/PacpInspection/1.0Oct 8, 2019, 06:58 AM
14 1094_14 1093_10082019_000129.mp4
- Date
- 10/07/2019
- W/O
- 787589
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26046
- Time
- 11:58 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7030
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_787589_TV14056_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 1094
- Downstream MH
- 14 1093
- Dir. of Survey
- Downstream
- Length Surveyed
- 26.7 ft.
- Total Length
- 26.7 ft.
- Structural Index
- 2
- Structural Quick
- 2400
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

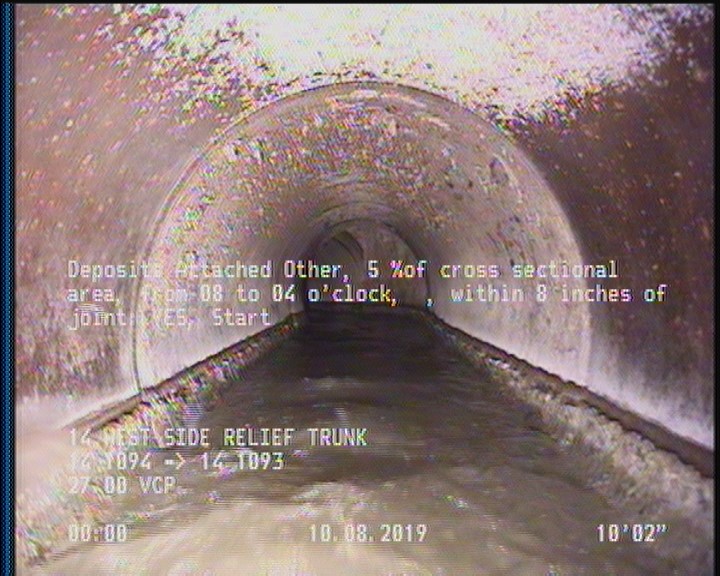

10.1 ft. - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 25 | DAZ | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | 14 1094 |
| 25 | DAGS | — |
| 0 | MWL | — |
| 10.1 | DAZ | — |
| 0 | MGO | STOP LOG CONN @ MH 3 O'CLOCK |
| 24 | SSS | — |
| 26.7 | AMH | 14 1093 |
Properties (7)
- additional_info
- SC378648
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-10-07T23:58:26-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40175
