Wastewater/Activity/PacpInspection/1.0Aug 21, 2019, 04:43 AM
29 0385_29 0370 _10072019_104104.mp4
- Date
- 08/20/2019
- W/O
- 782252
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00537
- PipeID
- P24422
- Time
- 9:43 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6908
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782252_TV29055_AUG2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0370
- Downstream MH
- 29 0385
- Dir. of Survey
- Upstream
- Length Surveyed
- 303.1 ft.
- Total Length
- 303.1 ft.
- Structural Index
- 3
- Structural Quick
- 4232
- Structural Rating
- 16
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (5)
11.7 ft. - Crack Spiral, from 08 to 12 o'clock, within 8 inches of joint: YES

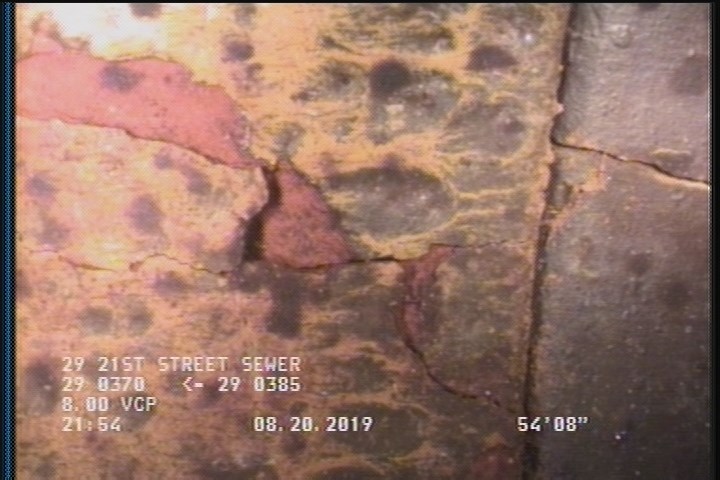

54.6 ft. - Fracture Multiple, from 06 to 01 o'clock, within 8 inches of joint: YES
75.8 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
84.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
191.4 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 191.4 | FM | — |
| 0 | AMH | 29 0370 |
| 75.8 | CM | — |
| 303.1 | AMH | 29 0385 |
| 0 | MWM | — |
| 84.8 | CM | — |
| 289.2 | TFC | — |
| 301 | CM | — |
| 0 | MWL | — |
| 11.7 | CS | — |
| 283.6 | TFC | — |
| 54.6 | FM | — |
| 0 | MGO | CONNECTION AT 3 O'CLOCK |
| 152.8 | TBA | — |
| 232.4 | TFC | — |
Properties (6)
- additional_info
- SC3778505
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-20T21:43:56-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
