Wastewater/Activity/PacpInspection/1.0Sep 26, 2019, 08:48 AM
C 0246_C 0245 _09262019_020549.mp4
- Date
- 09/26/2019
- W/O
- 787628
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00928
- PipeID
- P20307
- Time
- 1:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6949
- Sewer Name
- C JOINT OUTFALL C - UNIT 6A
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787628_TV03090_SEP2019
- Sewer Type
- Siphon
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- C 0245
- Downstream MH
- C 0246
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

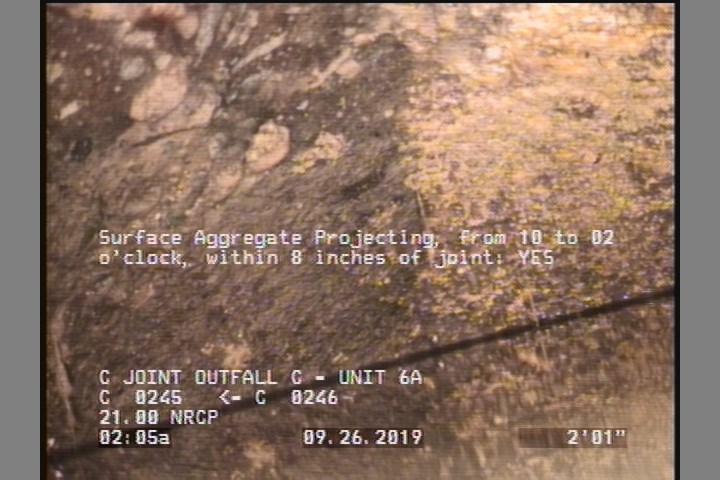

2.1 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

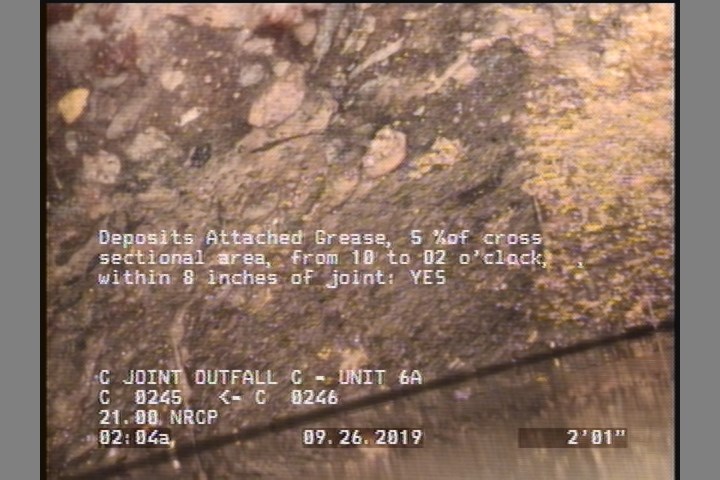

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 0 | AMH | C 0245 |
| 2.1 | DAGS | — |
| 0 | MGO | NW BARREL |
| 2.1 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | MSA | VIEW OF SIPHON UPLEG |
Properties (7)
- additional_info
- SC378548
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-26T01:48:23-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 19456
