Wastewater/Activity/PacpInspection/1.0Sep 17, 2019, 05:45 AM
14 0174_14 0173_09162019_225847.mp4
- Date
- 09/16/2019
- W/O
- 787624
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18212
- Time
- 10:45 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6898
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787624_TV14035_SEP2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0174
- Downstream MH
- 14 0173
- Dir. of Survey
- Downstream
- Length Surveyed
- 368.1 ft.
- Total Length
- 368.1 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 365
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 150
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 515
Observation photos (4)

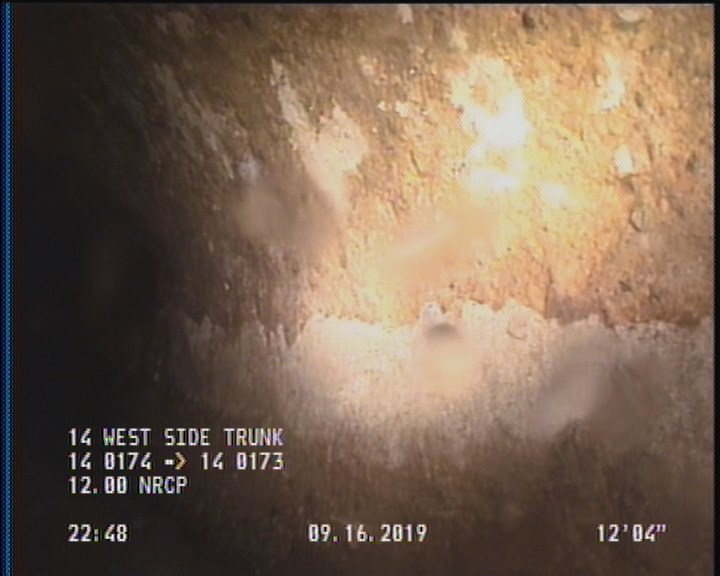

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

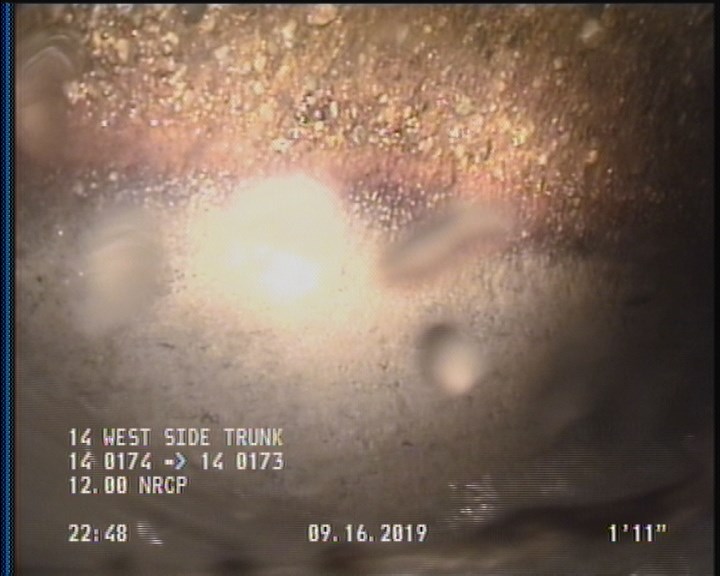

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

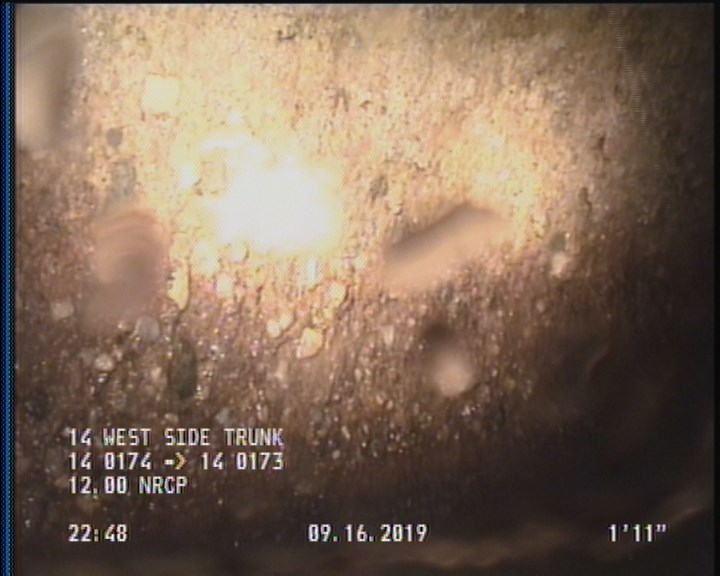

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

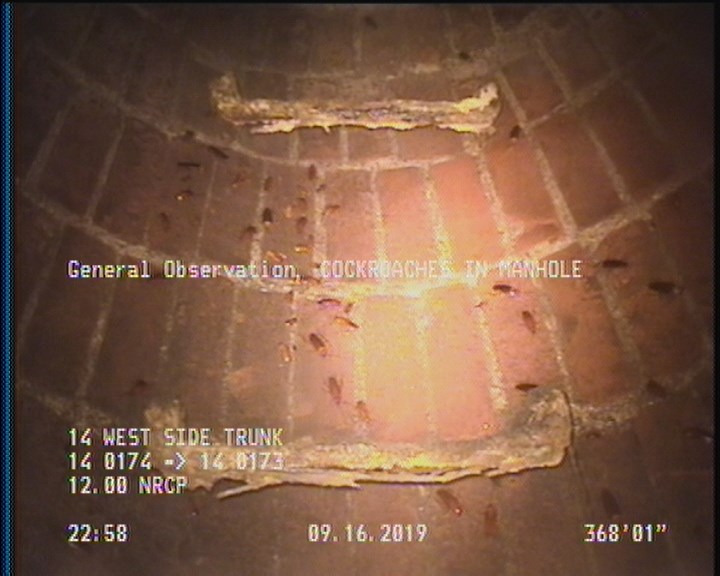

368.1 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SSS | — |
| 366.1 | SAP | — |
| 368.1 | MGO | COCKROACHES IN MANHOLE |
| 366.1 | SSS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 14 0174 |
| 366.1 | DAGS | — |
| 2 | SAP | — |
| 368.1 | AMH | 14 0173 |
Properties (6)
- additional_info
- SC378614
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-16T22:45:38-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
