Wastewater/Activity/PacpInspection/1.0Oct 16, 2019, 08:20 AM
B 0069B_B 0069A_10162019_012035.mp4
- Date
- 10/16/2019
- W/O
- 787625
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00115
- PipeID
- P20285
- Time
- 1:20 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7040
- Sewer Name
- B JOINT OUTFALL B - UNIT 9C
- City
- COMPTON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787625_TV08108_SEP2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 90 in.
- Width
- 90 in.
- Upstream MH
- B 0069A
- Downstream MH
- B 0069B
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

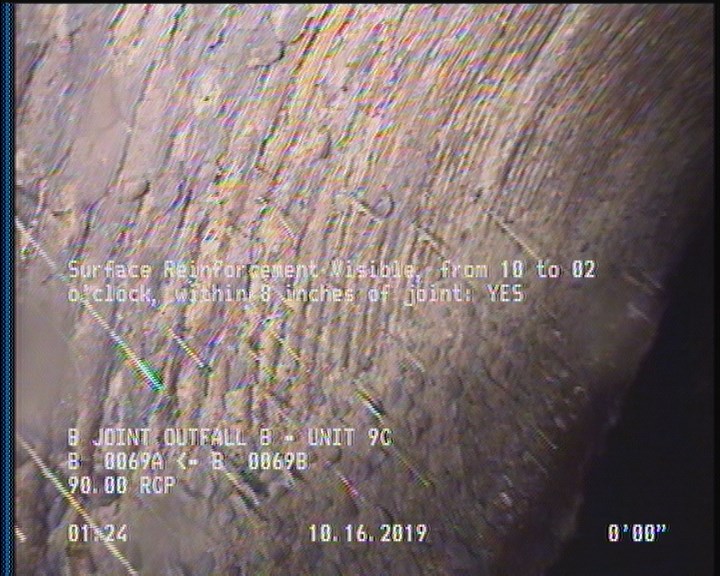

2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

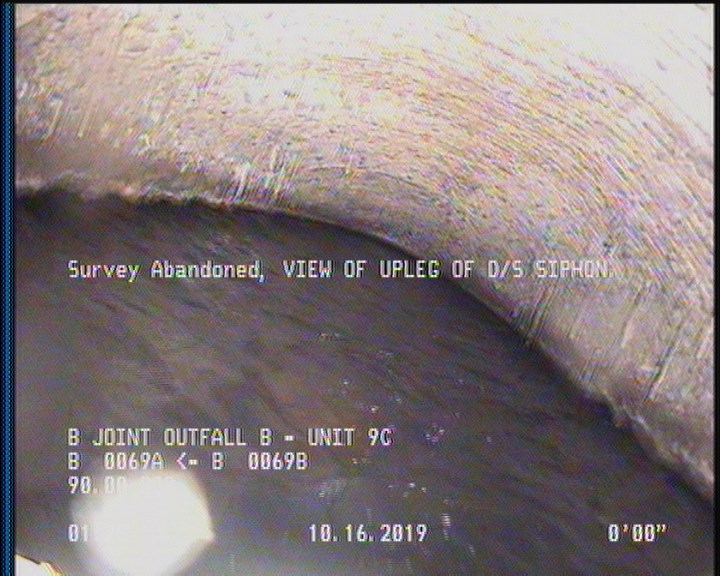

2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

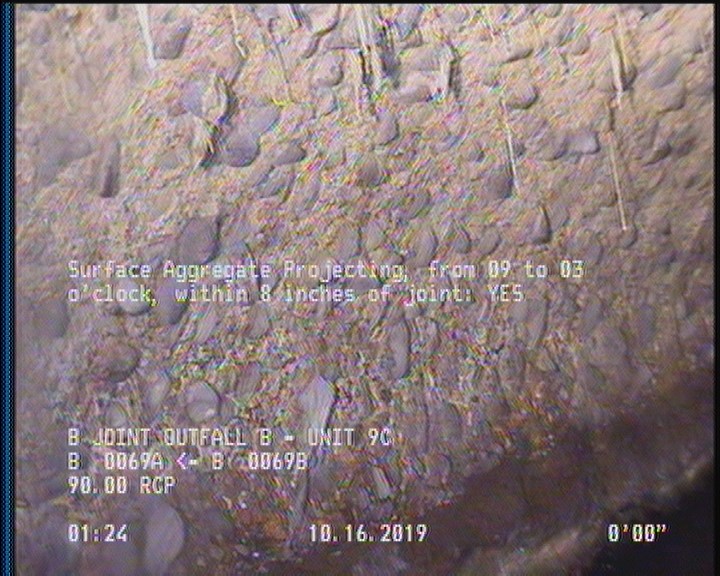

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRV | — |
| 2 | MSA | VIEW OF UPLEG OF D/S SIPHON. |
| 0 | MWL | — |
| 0 | AMH | B 0069A |
| 0 | MWM | — |
| 2 | SAP | — |
Properties (7)
- additional_info
- SC378709
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-10-16T01:20:27-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 33875
